Large size stage, convenient for research. Size: 210mm(X) × 240 (Y)mm, Moving range: 128mm (X) × 80 (Y)mm. Mechanical stage available for 96 holes plate
Culture Dish Holder
Knob of X-Y mechanical stage can be changed by left or right.
Infinite plan 4X phase contrast objective is available.
|
Item |
Specification |
STM-2093A |

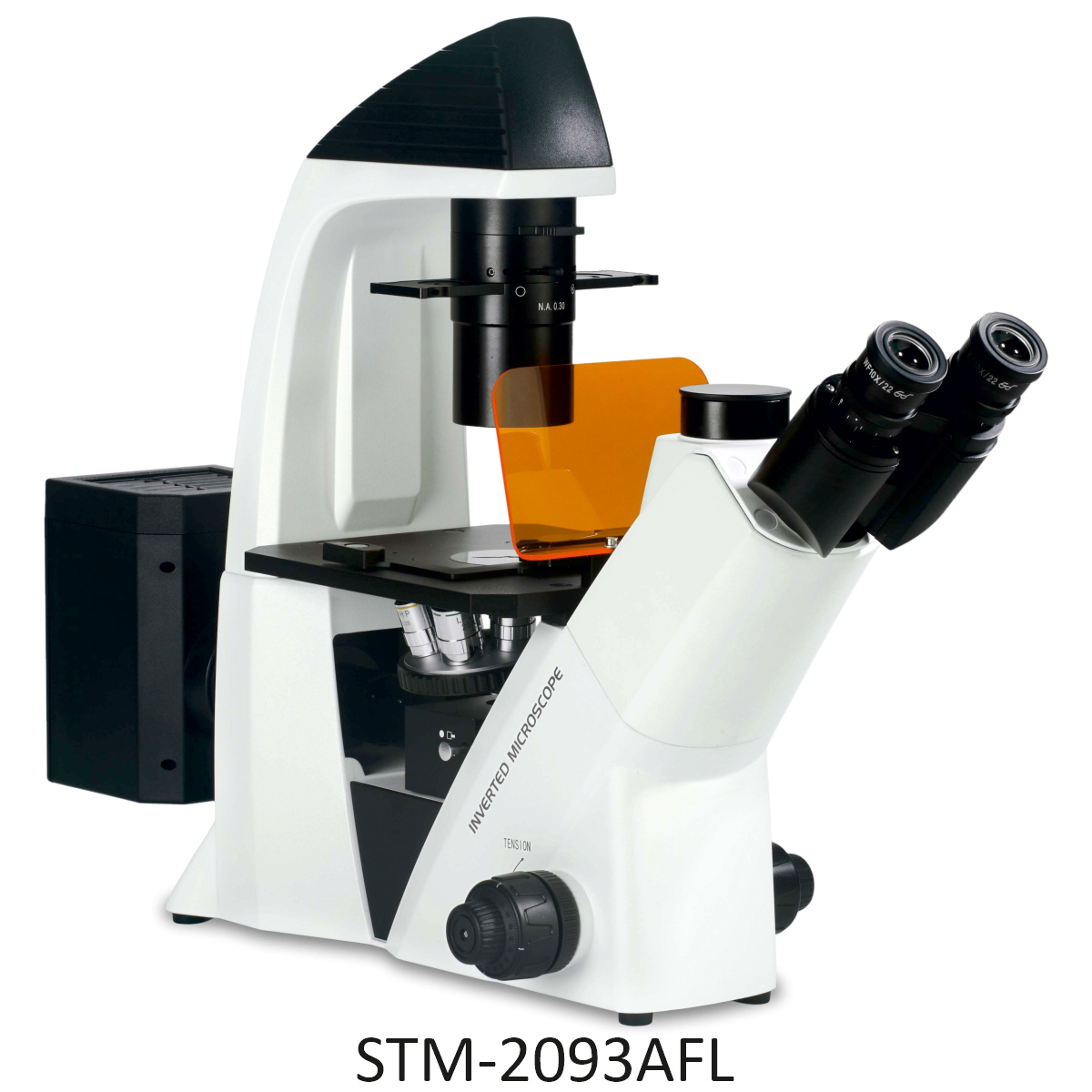

STM-2093AFL |
STM-2093 AFL(LED) |
|
|
Optical System |
Infinite Optical System |
Standard |
Standard |
Standard |
|
|
Viewing Head |
Seidentopf Trinocular Head, Inclined at 45°, Interpupillary Distance 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head, and 20% for eyepiece), Eyepiece Tube Diameter 30mm |
Standard |
Standard |
Standard |
|
|
Eyepiece |
Wide Field Eyepiece WF10×/ 22mm |
Standard |
Standard |
Standard |
|
|
Wide Field Eyepiece WF15×/ 16mm |
Optional |
Optional |
Optional |
||
|
Wide Field Eyepiece WF20×/ 12mm |
Optional |
Optional |
Optional |
||
|
Objective |
Long Working Distance Infinite Plan Achromatic Objective |
4×/0.11, W.D.=12.1mm |
Standard |
Standard |
Standard |
|
10×/0.25, W.D.=8.3mm |
Optional |
Optional |
Optional |
||
|
20×/0.40, W.D.=7.2mm |
Optional |
Optional |
Optional |
||
|
40×/0.60, W.D.=3.4mm |
Optional |
Optional |
Optional |
||
|
Long Working Distance Infinite Plan Achromatic Phase Contrast Objective |
4×/0.10, W.D.=9.2mm |
Optional |
Optional |
Optional |
|
|
10×/0.25, W.D.=8.3mm |
Standard |
Standard |
Standard |
||
|
20×/0.40, W.D.=7.2mm |
Standard |
Standard |
Standard |
||
|
40×/0.60, W.D.=3.4mm |
Standard |
Standard |
Standard |
||
|
Nosepiece |
Backward Quintuple Nosepiece |
Standard |
Standard |
Standard |
|
|
Condenser |
Long Working Distance Condenser, N.A. 0.3, Working Distance 72mm (with condenser), 195mm (without condenser) |
Standard |
Standard |
Standard |
|
|
Centering Telescope |
Centering Telescope (Φ30mm) |
Optional |
Optional |
Optional |
|
|
Phase Annulus |
10×, 20×, 40× Phase Annulus Plate |
Standard |
Standard |
Standard |
|
|
4× Phase Annulus Plate |
Optional |
Optional |
Optional |
||
|
Stage |
Plain Stage 210(X)×240mm(Y), round slide plate: Φ110mm |
Standard |
Standard |
Standard |
|
|
Attachable Mechanical Stage, X-Y Coaxial Control, Moving Rang: 128mm×80mm |
Standard |
Standard |
Standard |
||
|
Petri Dish Holder Φ65mm |
Optional |
Optional |
Optional |
||
|
Petri Dish Holder Φ54mm |
Standard |
Standard |
Standard |
||
|
Petri Dish Holder Φ35mm |
Optional |
Optional |
Optional |
||
|
Blood cell counter Holder |
Optional |
Optional |
Optional |
||
|
Focusing |
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 10mm |
Standard |
Standard |
Standard |
|
|
Koehler Illumination |
6V/30W Halogen Lamp, Brightness Adjustable, input voltage: 100V-240V |
Standard |
Standard |
Standard |
|
|
5W LED Lamp, Brightness Adjustable, input voltage: 100V-240V |
Optional |
Optional |
Optional |
||
|
Filter |
Blue Filter, Diameter 32mm |
Standard |
Standard |
Standard |
|
|
Green Filter, Diameter 32mm |
Standard |
Standard |
Standard |
||
|
Amber/Grey Filter, Diameter 32mm |
Optional |
Optional |
Optional |
||
|
C-mount |
0.5× C-mount Adapter (focus adjustable) |
Standard |
Standard |
Standard |
|
|
0.75× C-mount Adapter (focus adjustable) |
Optional |
Optional |
Optional |
||
|
1× C-mount Adapter (focus adjustable) |
Optional |
Optional |
Optional |
||
|
Epi-Fluorescent Attachment |
Epi-fluorescence attachment with 100W mercury lamp and B, G fluorescent filters, field diaphragm, center adjustable. |
Optional |
Standard |
Optional |
|
|
Epi-fluorescence attachment with 5W LED lamp and B, G fluorescent filters, field diaphragm, center adjustable. |
Optional |
Optional |
Standard |
||
|
V, UV fluorescent filters |
Optional |
Optional |
Optional |
||
|
Packing |
1carton/set, Size: 66×59×33cm, GW: 18kgs, NW: 14kgs |
Standard |
|
|
|
|
2cartons/set, carton 1 Size: 52×47×49cm, GW: 18kgs, NW: 14kgs; carton 2 Size: 52×47×24cm, GW: 6kgs, NW: 4kgs |
|
Standard |
|
||
|
1carton/set, Size: 52×47×49cm, GW: 23kgs, NW: 18kgs |
|
|
Standard |
||
STM-2093A Inverted microscope is used by medical and health units, universities, research institutes for oSTMervations of micro-organisms, cells, bacteria and tissue cultivation. It can be used for continuous oSTMervation of process of cells, bacteria grow and divide in the culture medium. Videos and images can be taken during the process. This microscope is widely used in cytology, parasitology, oncology, immunology, genetic engineering, industrial microbiology, botany and other fields.
