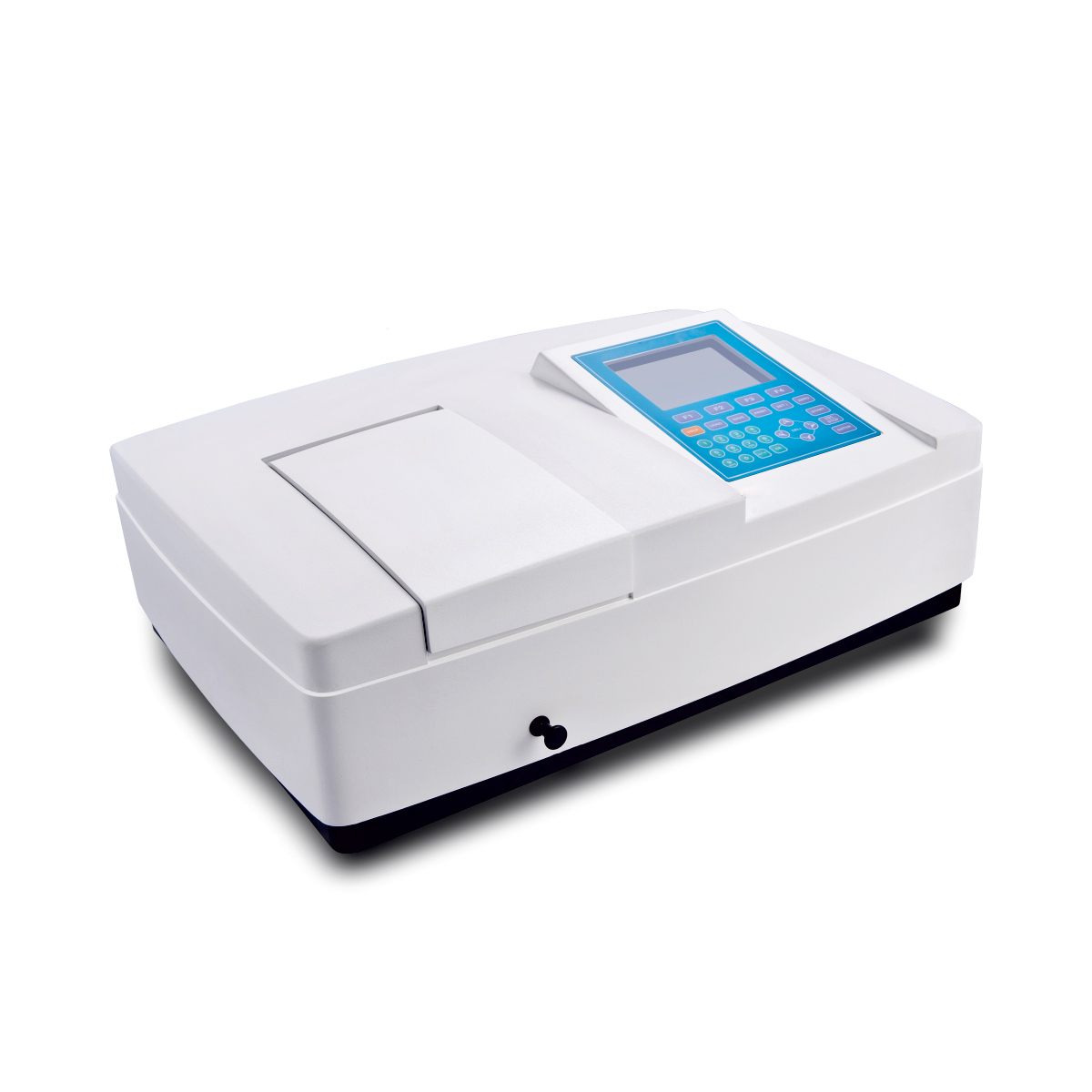

STA-5200 is a unique 520mm long flight path design greatly improved resolution and the bandwidth can reach 0.5nm.
16mm optical base
STA-5200 uses a rigid 16mm die-cast aluminum base as its optical mount to ensure instrument stability and reliability.
STA-5200 has a 6 inches LCD display to show results and curves directly on the screen.
Multi functions like spectrum scanning, standard curve, kinetics, multi wavelength scanning;
DNA/Protein can be operated directly on the PC.
Multi functions operated directly on the spectrophotometer and display the test results’ Curve and data: Wavelength Scanning, Standard curve, DNA/Protein test.
All baseline, wavelength, dark current can be calibrated automatically to keep good running conditions.
STA-5200 is equipped with USB port to connect with a PC, and the software comes standard with the instruments.
| Model | STA-5200 |
| Wavelength Range | 190-1100nm |
| Bandwidth | 1.0nm |
| Wavelength Accuracy | ± 0.3nm |
| Wavelength Repeatability | 0.2nm |
| Photometric Accuracy | ± 0.3%T |
| Photometric Repeatability | 0.2%T |
| Photometric Range | -0.3-3A,0-200%T,0-9999C |
| Stability | ± 0.002A/h @ 500nm |
| Baseline Flatness | ± 0.001A |
| Noise | ± 0.001A |
| Data Output Port | USB |
| Printer Port | Parallel Port |
| Display | 320*240 Dots LCD |
| Lamps | D2 Lamp & W Lamp |
| Detector | Silicon Photodiode |
| Power Requirements | AC 220V/50Hz |
| Dimension | 625*430*206mm |
| Weight | 28kg |
Standard Accessories
| Sr# | Description | Quantity | Unit |
| 1 | Spectrophotometer | 1 | Set |
| 2 | 1 cm Glass cuvette | 4 | Set |
| 3 | Power cord | 1 | Set |
| 4 | User’s Manual | 1 | Set |
| 5 | 1 cm quartz cuvette | 2 | Set |
| 6 | Dust cover | 1 | Set |
Spare Accessories
| Item | Model No | Description | Unit |
| Cell Holder |
100101
|
10mm single cell holder |
Pcs
|
|
100102
|
10mm 4-hole cell holder | Pcs | |
|
100103
|
50mm 4-hole cell holder | Pcs | |
|
100104
|
100mm 4-hole cell holder | Pcs | |
|
100105
|
10mm 8-hole auto cell holder | Pcs | |
|
100106
|
10mm single hole water jacketed ambiknt cell holder | Pcs | |
| 100107 | Adjustable cell holder for micro cuvettes | Pcs | |
|
100108
|
Transparent film holder | Pcs | |
|
100109
|
Test tube holder | Pcs | |
| Control Units |
200101
|
Peltier System | Pcs |
| 200102 | Sipper system | Pcs | |
|
200103
|
Peltier/sipper system | Pcs | |
|
200104
|
Micro printer | Pcs | |
| Lamps | 300101 | W lamp 12V, 20W (Phillips) | Pcs |
