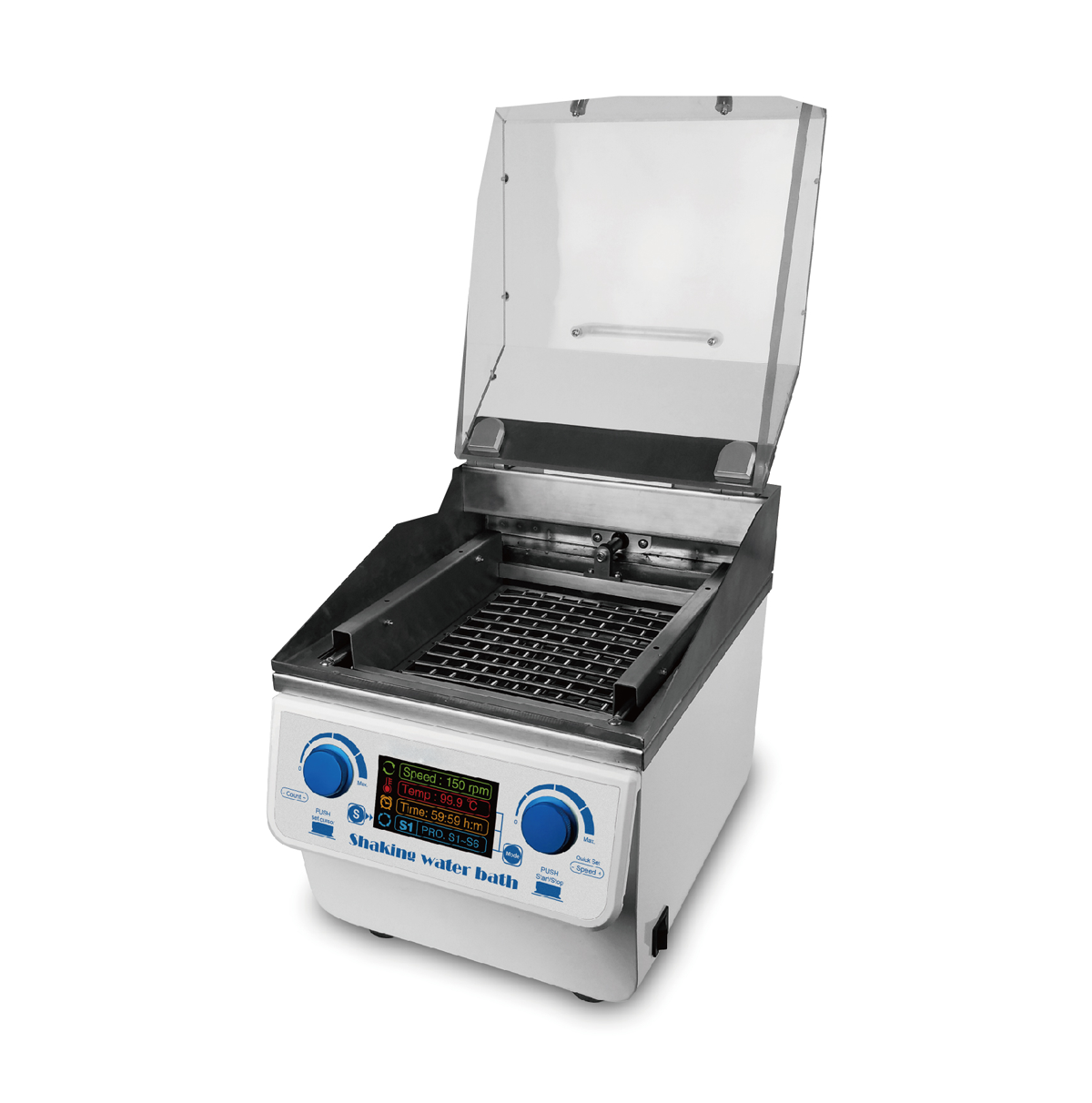

SWB-100
Water Bath Shaker
Water Bath Shaker is a temperature controlled thermostat water bath and oscillator combined laboratory equipment, mainly applicable to colleges and universities, medical, petrochemical, health and epidemic prevention, environmental monitoring and other research departments for biological, Biochemical, cell, bacteria and other liquid, solid-state chemical oscillation.
Quantity :
  • Features
  • Specifications
  • Literature

Features

  • Unique and novel appearance, small size, powerful functions. All surfaces in contact with water are made of high-quality stainless teel and are corrosion-resistant.
  • TFT LCD holographic displays operating speed, temperature, time. Graphic dynamic symbols and precise data at a glance.
  • Built-in chip memory storage mode, memory 9 kinds commonly used combination of parameters, and can achieve single-node cycle or multi-node pulse cycle. To meet more experimental requirements.
  • Using microcomputer program PID automatic temperature control, with a good temperature uniformity, high temperature control accuracy, safety and comprehensive protection features.
  • Oscillation and heating using split design, the moving frame can be taken out when it do not need to oscillation, can be used as a constant temperature water bath box, a dual-purpose machine.
  • DC motor, low noise, maintenance-free, long service life.
  • Transparent clamshell design, easy to operate, real-time observation of the internal operating status.



Specifications

Model

SWB-100

Heating capacity

10L

Temp. Control Range

R.T.+5℃ ~100℃

Temp. Stability(100℃)

±0.5℃

Time Range

1m~99h59m OFF is forever

Oscillation mode

Reciprocating

Amplitude

26mm

Speed range

20~200rpm

Sink size((W×D×H)

250x304x200mm

Voltage

AC220/110V, 50/60Hz

Power

1100W

Dimensions(W×D×H)

W.288 x D.506 x H.350 mm

Net weight

10kgs



Literature

SWB-100 Brochure
