Stalwart

SFV-28 Series

Touch Fairy Vortexer

Touch Fairy Vortexer focuses on touch-to-mix (short mix) for a variety of tubes / centrifugal tubes. Its compact design makes it very attractive and welcome, while its touch-to-mix operation makes it very easy handling and quite convenient. Touch fairy vortexer becomes an essential experimental instrument with its prominent mixing effect.

Quantity :

Add to Inquiry Basket

Features
Specifications
Literature

Features

The max diameter of the tubes is up to 30mm. Suit for mixing tubes /centrifugal tubes with prominent mixing effect.
Outer shell and test tube base are made of plastic which is resistant to chemical attack.The thick base makes operation very steady and reliable.
12V low voltage power adapter built in, smart and portable

Specifications

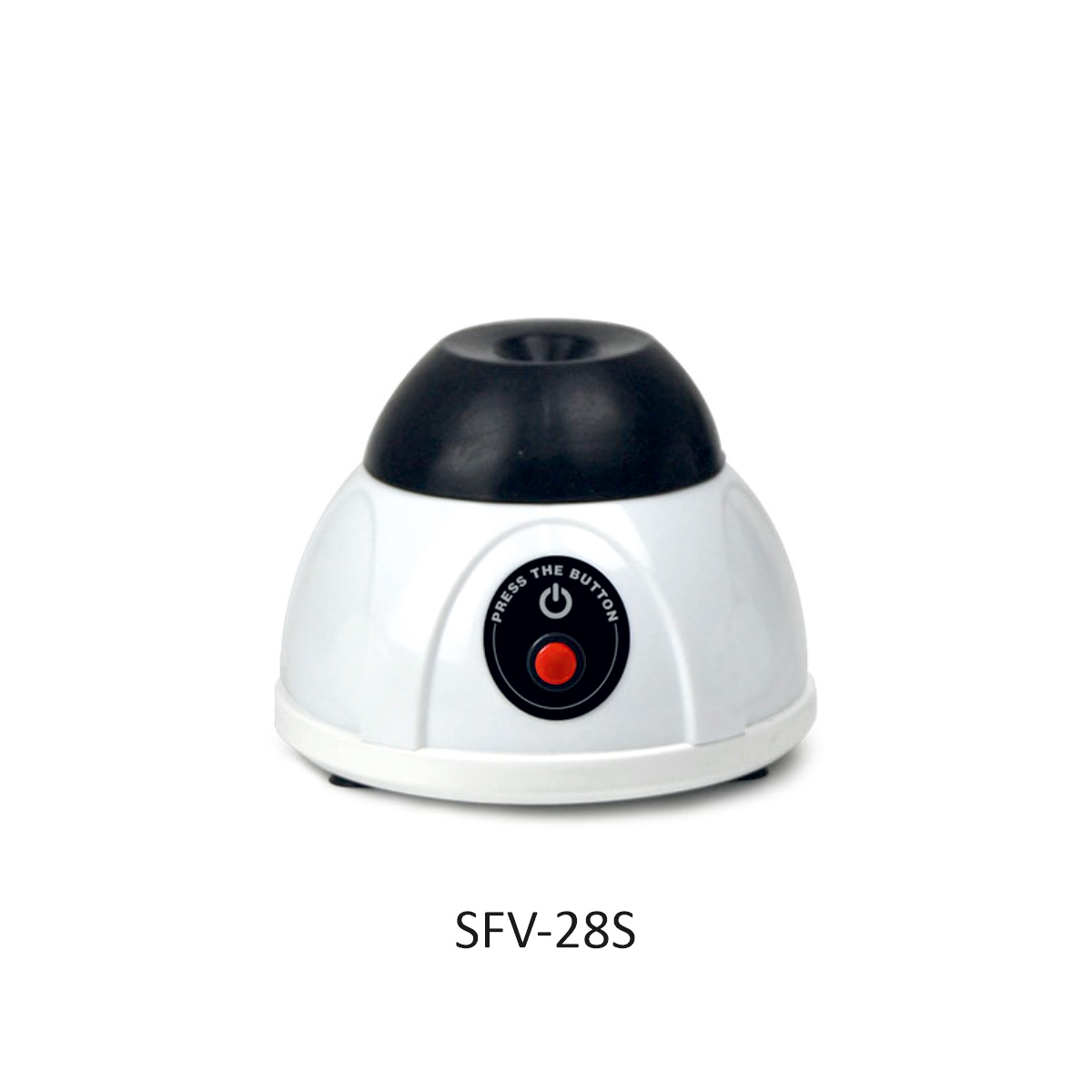

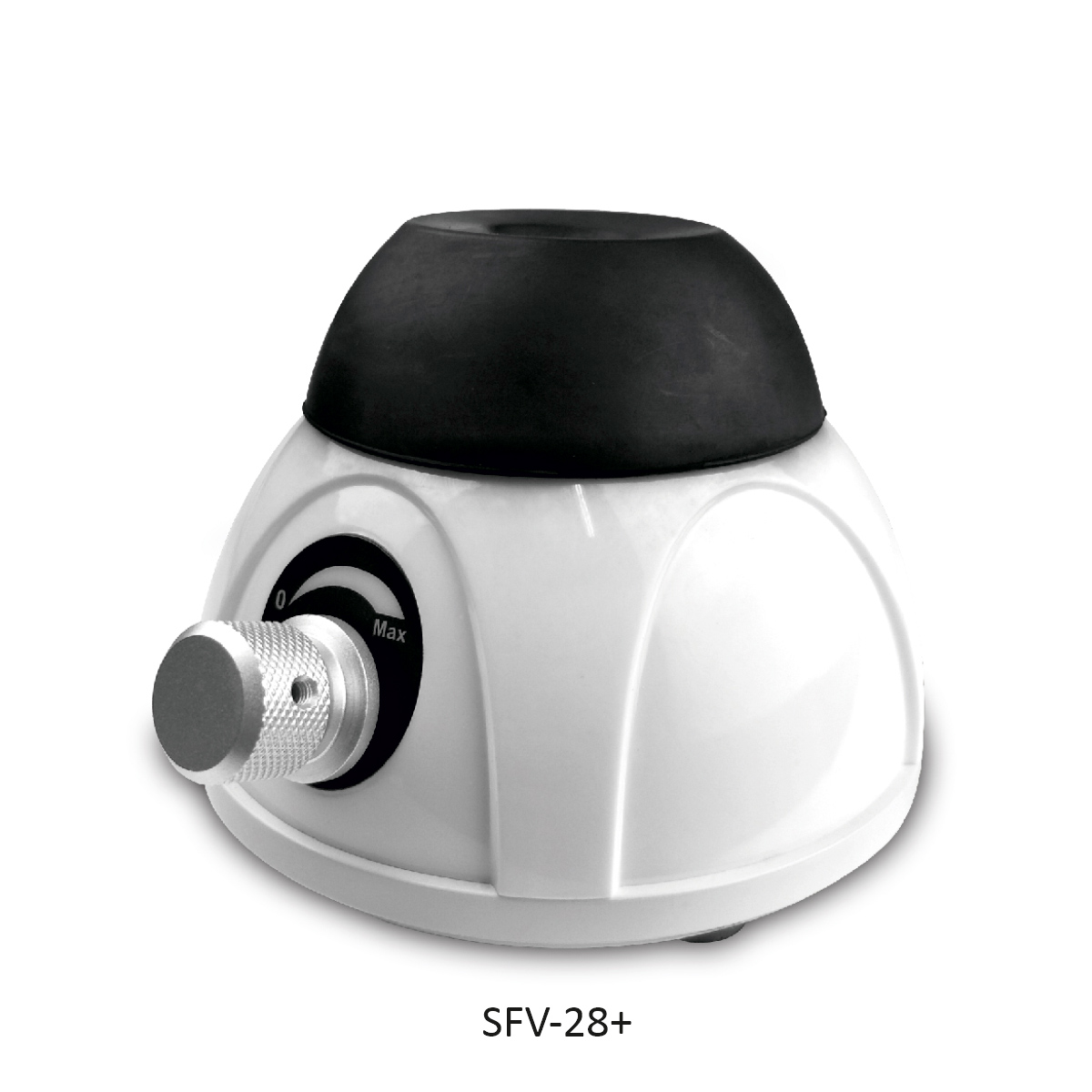

Model	SFV-28	SFV-28+	SFV-28S
Speed Range	4000rpm	0~4000rpm	4000rpm
Switch mode	Jog switch	Jog switch+Knob adjust	Jog switch / One button long open
Shaking Orbit	4.5mm (circle)	4.5mm (circle)	4.5mm (circle)
Max. Sample Capacity	50ml	50ml	50ml
Power Input /Output	1.2W / 0.8W	1.2W / 0.8W	1.2W / 0.8W
Voltage	DC12V 1A	DC12V 1A	DC12V 1A
Power	12W	12W	12W
Dimension	W.110 x D.110 x H.86mm	W.110 x D.110 x H.86mm	W.110 x D.110 x H.86mm
Net Weight	1.1kgs	1.1kgs	1.1kgs

Literature

SFV-28 Series Brochure
