SPC-73

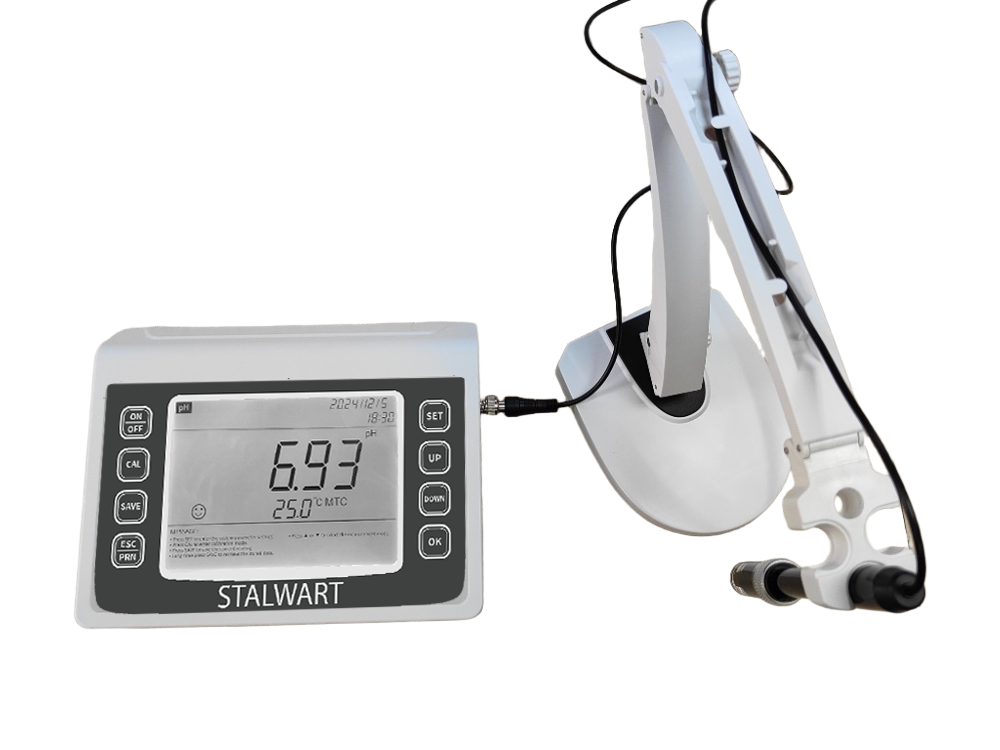

Benchtop pH/Conductivity Meter
Quantity :
  • Features
  • Specifications
  • Literature

Features

  • 6.5-inch LED screen with concise and friendly-use interface.
  • Built-in microprocessor chip has Intelligent functions such as automatic calibration, ATC, data storage, clock display, USB output, function settings, wireless printing, and self-diagnosis information, etc.
  • It supports wireless bluetooth printing. Real-time data transfer to mobile phone via bluetooth is optional.
  • Smart electrode status display to ensure accurate use.
  • Adopt advanced conductivity measurement technology, with conductivity electrode (K=1), it can meet measuring accuracy requirement for range of 0.5μS/cm ~ 200mS/cm.
  • Ability to switch among conductivity, TDS, salinity and resistivity. Multinomial calculation for TDS and salinity to ensure the conversion precision of the full range.
  • Omron long lasting and light touch key can be used more than 100,000 times.
  • Auto recognition of 25 buffers with three kinds of options: Europe & USA, NIST and China. Auto recognition of 8 conductivity standard solution with 2 kinds of options: Europe & USA, and China.
  • Can store 1000 sets of test data, which can be saved and transferred to USB memory stick and opened with Excel.



Specifications

pH

Measurement range

(-1.999 ~ 19.999)pH

Resolution

0.1/0.01 pH

Accuracy

Electrode: ±0.02 pH

Input current

-12, ≤1×10 A

Input impedance

12, ≥3×10 Ω

Stability

±0.02 pH/3h

Temperature compensation

(0 ~ 100)℃, auto or manual

mV

Measurement range

(-1999.9 ~ 0 ~1999.9) mV

Resolution

0.1 mV

Accuracy

±0.03% FS

Conductivity

Measuring range

Conductivity:

(0.00~20.00)μS/cm

(20.0~200.0)μS/cm

(200~2000)μS/cm

(2.00~20.00)mS/cm

(20.0~200.0)mS/cm

(200~2000)mS/cm(K=10)

TDS:(0 ~ 100)g/L

Salinity:(0 ~ 100)ppt

Resistivity:(0 ~ 100)MΩ·cm

Resolution

0.01/0.1/1μS/cm; 0.01/0.1/1mS/cm

Accuracy

Electrode: ±0.5% FS, Meter: ±0.8% FS

Temp. compensation range

(0 ~ 50)°C, Auto

Electrode constant

0.1/0.5/1/5/10/50/100 cm

Reference Temp.

25°C, 20°C, 18°C

Temperature

Range

(-10 ~ 110)°C

Resolution

0.1°C

Accuracy

5 ~ 60°C:±0.4°C   Others: ±0.8°C

Other Parameters

Display

6.5-inch LED screen

Data storage

1000 sets

Power

12V (110-220, 50-60Hz adapter)

Communication interface

USB, RS232, Bluetooth

Dimensions & Weight

240×170×70mm/600g

Working Conditions

Temperature

5 ~ 35°C

Humidity

≤80%

IP grade

IP54

Meter Kits

1) pH & Conductivity Meter

2) Electrode holder

3) pH composite electrode

4) Conductivity electrode  (K=1)

5) Temperature probe

6) pH buffer solution

7) Power adapter



Literature

SPC-73.pdf
