STTC Series

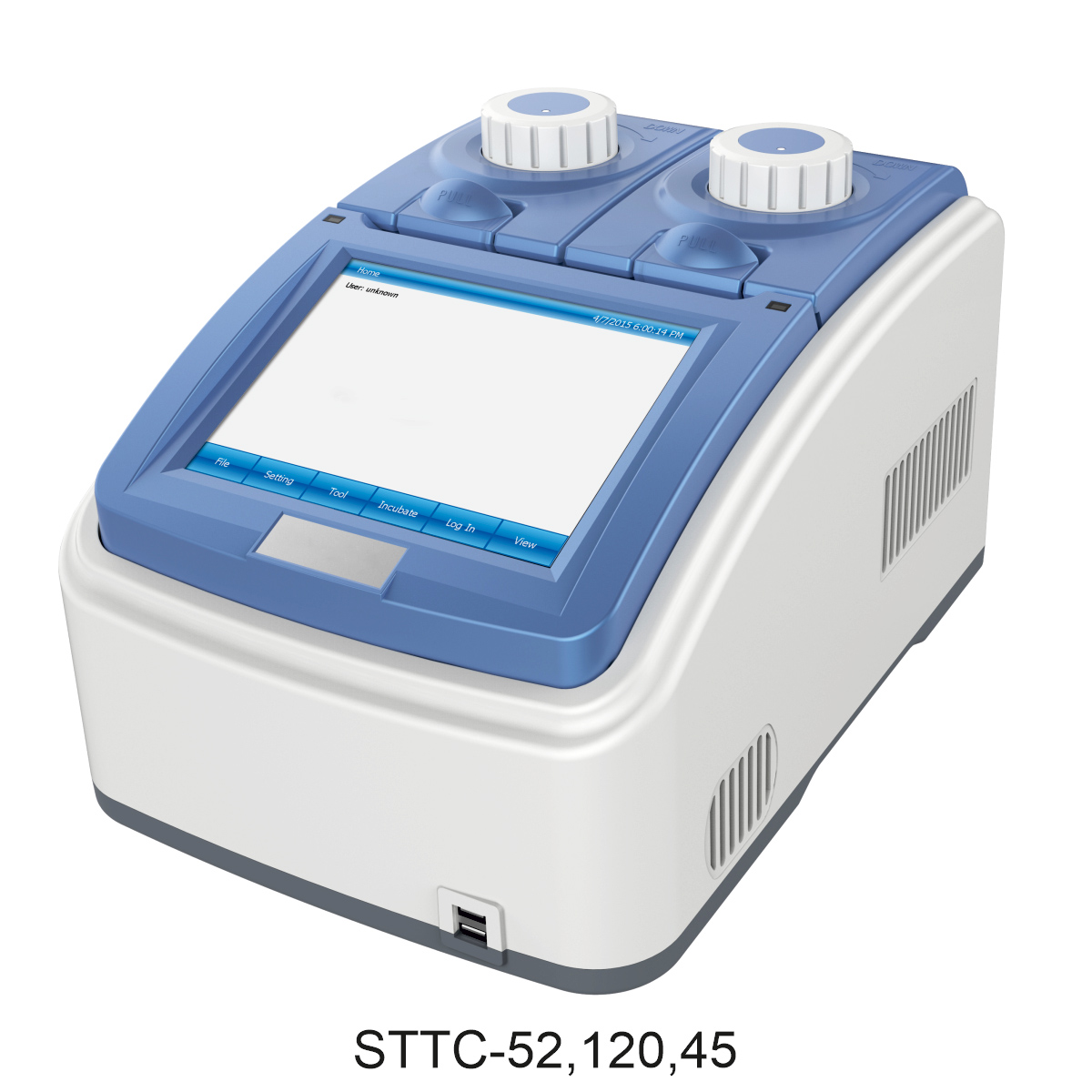

Touch Series Thermal Cycler
Touch series thermal cycler uses customized Marlow(US) peltier. Its max. ramping rate is 5℃/s and cycle times is more than 1000,000. The product combines a variety of advanced technologies: Android operating system, color capacitive touch screen, run dual block independently, Built-in WIFI module, mobile APP and PC software control function, big storage capacity and email alert function. All above functions allow PCR's excellent performance and meet higher experiment's need.
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature

Features

  • 8 pcs long service life Peltier heating units and form 4 circuits to control 4 temperature zones and allow double block gradient function;
  • Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance;
  • High heating and cooling rate, max. Ramping rate 5 ℃/s, can save your precious time;
  • Two blocks independently controlled and can run 2 different PCR programs simultaneously;
  • Stepless adjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation;
  • Android operating system, capacitive touch screen, high-definition TFT display (8”, 800×600 pixels, 16 colors) with graphical interface provides easy use for setting up and monitoring.
  • Built-in 11 standard program file template, can quickly edit the required files;
  • Folder management, user can build directory;
  • The running program and left time can be displayed in real time , allow to edit file when program is running;
  • One-click quick incubation function can meet experiment's needs such as denaturation, enzyme cutting/enzyme-link and ELISA;
  • Internal flash memory for 10000 typical PCR files in free configurable folders;
  • Hot lid temperature and hot lid work mode can be set to meet different experiment's need;
  • Automatic restart after power failure. When power is restored it can continue to run unfinished program;
  • GLP report records every step to provide accurate data support for experiment result analysis;
  • User Login Management, three-tier permission, password protection function to ensure data security;
  • support U disk to get PCR data, to update software, and USB mouse can also be used to control the PCR instrument;
  • Built-in WIFI module, one machine can control multiple PCR machines at the same time through mobile APP or PC software;
  • Support email-alert function when experiment is over.

Specifications

Model

STTC-12

STTC-45

STTC-52

STTC-70

STTC-120

Capacity

96×0.2ml

48×0.2ml+30×0.5ml

Double  48×0.2ml

384 well

96×0.2ml+77×0.5ml

Temperature Range

0-100˚C

0-100˚C

0-100˚C

0-100˚C

0-100˚C

Heating Rate

5˚C/s

5˚C/s

5˚C/s

5˚C/s

5˚C/s

Cooling Rate

4˚C/s

4˚C/s

4˚C/s

4˚C/s

4˚C/s

Uniformity

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

Accuracy

≤±0.1˚C

≤±0.1˚C

≤±0.1˚C

≤±0.1˚C

≤±0.1˚C

Display Resolution

0.1˚C

0.1˚C

0.1˚C

0.1˚C

0.1˚C

Temperature Control

BlockTube

BlockTube

BlockTube

BlockTube

BlockTube

Ramping Rate Adjustable

0.1-5˚C

0.1-5˚C

0.1-5˚C

0.1-5˚C

0.1-5˚C

Gradient Uniformity

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

Gradient Accuracy

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

Gradient Temp. Range

30-100˚C

30-100˚C

30-100˚C

30-100˚C

30-100˚C

Gradient Spread

1-30˚C

1-30˚C

1-30˚C

1-30˚C

1-30˚C

Hot Lid Temperature

30-110˚C

30-110˚C

30-110˚C

30-110˚C

30-110˚C

Hot Lid Height Adjustable

Stepless Adjustable

Stepless Adjustable

Stepless Adjustable

Stepless Adjustable

Stepless Adjustable

Number of Programs

10000 +(USB FLASH)

10000 +(USB FLASH)

10000 +(USB FLASH)

10000 +(USB FLASH)

10000 +(USB FLASH)

Max. No of Step

30

30

30

30

30

Max. No of Cycle

100

100

100

100

100

Time Increment/ Decrement

1 Sec - 600 Sec

1 Sec - 600 Sec

1 Sec - 600 Sec

1 Sec - 600 Sec

1 Sec - 600 Sec

Time Increment/ Decrement

0.1-10.0˚C

0.1-10.0˚C

0.1-10.0˚C

0.1-10.0˚C

0.1-10.0˚C

Pause Function

Yes

Yes

Yes

Yes

Yes

Auto Data Protection

Yes

Yes

Yes

Yes

Yes

Hold at 4˚C

Forever

Forever

Forever

Forever

Forever

Touchdown Function

Yes

Yes

Yes

Yes

Yes

Long PCR Function

Yes

Yes

Yes

Yes

Yes

Language

English

English

English

English

English

Mobile App

Android

Android

Android

Android

Android

LAN to computer

Yes

Yes

Yes

Yes

Yes

LCD

8 inch, 800×600 pels,

8 inch, 800×600 pels,

8 inch, 800×600 pels,

8 inch, 800×600 pels,

8 inch, 800×600 pels,

Communication

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

Dimension

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

Weight

9kg

9kg

9kg

9kg

9kg

Power Supply

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W



Literature

STTC Series Brochure

Features

  • 8 pcs long service life Peltier heating units and form 4 circuits to control 4 temperature zones and allow double block gradient function;
  • Reinforced aluminum module with anodizing technology can keep rapid heating-conducting property and have enough corrosion resistance;
  • High heating and cooling rate, max. Ramping rate 5 ℃/s, can save your precious time;
  • Two blocks independently controlled and can run 2 different PCR programs simultaneously;
  • Stepless adjustable hot lid with pressure-protection, fit tubes of different heights to avoid tube melt and evaporation;
  • Android operating system, capacitive touch screen, high-definition TFT display (8”, 800×600 pixels, 16 colors) with graphical interface provides easy use for setting up and monitoring.
  • Built-in 11 standard program file template, can quickly edit the required files;
  • Folder management, user can build directory;
  • The running program and left time can be displayed in real time , allow to edit file when program is running;
  • One-click quick incubation function can meet experiment's needs such as denaturation, enzyme cutting/enzyme-link and ELISA;
  • Internal flash memory for 10000 typical PCR files in free configurable folders;
  • Hot lid temperature and hot lid work mode can be set to meet different experiment's need;
  • Automatic restart after power failure. When power is restored it can continue to run unfinished program;
  • GLP report records every step to provide accurate data support for experiment result analysis;
  • User Login Management, three-tier permission, password protection function to ensure data security;
  • support U disk to get PCR data, to update software, and USB mouse can also be used to control the PCR instrument;
  • Built-in WIFI module, one machine can control multiple PCR machines at the same time through mobile APP or PC software;
  • Support email-alert function when experiment is over.

Specifications

Model

STTC-12

STTC-45

STTC-52

STTC-70

STTC-120

Capacity

96×0.2ml

48×0.2ml+30×0.5ml

Double  48×0.2ml

384 well

96×0.2ml+77×0.5ml

Temperature Range

0-100˚C

0-100˚C

0-100˚C

0-100˚C

0-100˚C

Heating Rate

5˚C/s

5˚C/s

5˚C/s

5˚C/s

5˚C/s

Cooling Rate

4˚C/s

4˚C/s

4˚C/s

4˚C/s

4˚C/s

Uniformity

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

Accuracy

≤±0.1˚C

≤±0.1˚C

≤±0.1˚C

≤±0.1˚C

≤±0.1˚C

Display Resolution

0.1˚C

0.1˚C

0.1˚C

0.1˚C

0.1˚C

Temperature Control

BlockTube

BlockTube

BlockTube

BlockTube

BlockTube

Ramping Rate Adjustable

0.1-5˚C

0.1-5˚C

0.1-5˚C

0.1-5˚C

0.1-5˚C

Gradient Uniformity

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

Gradient Accuracy

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

≤±0.2˚C

Gradient Temp. Range

30-100˚C

30-100˚C

30-100˚C

30-100˚C

30-100˚C

Gradient Spread

1-30˚C

1-30˚C

1-30˚C

1-30˚C

1-30˚C

Hot Lid Temperature

30-110˚C

30-110˚C

30-110˚C

30-110˚C

30-110˚C

Hot Lid Height Adjustable

Stepless Adjustable

Stepless Adjustable

Stepless Adjustable

Stepless Adjustable

Stepless Adjustable

Number of Programs

10000 +(USB FLASH)

10000 +(USB FLASH)

10000 +(USB FLASH)

10000 +(USB FLASH)

10000 +(USB FLASH)

Max. No of Step

30

30

30

30

30

Max. No of Cycle

100

100

100

100

100

Time Increment/ Decrement

1 Sec - 600 Sec

1 Sec - 600 Sec

1 Sec - 600 Sec

1 Sec - 600 Sec

1 Sec - 600 Sec

Time Increment/ Decrement

0.1-10.0˚C

0.1-10.0˚C

0.1-10.0˚C

0.1-10.0˚C

0.1-10.0˚C

Pause Function

Yes

Yes

Yes

Yes

Yes

Auto Data Protection

Yes

Yes

Yes

Yes

Yes

Hold at 4˚C

Forever

Forever

Forever

Forever

Forever

Touchdown Function

Yes

Yes

Yes

Yes

Yes

Long PCR Function

Yes

Yes

Yes

Yes

Yes

Language

English

English

English

English

English

Mobile App

Android

Android

Android

Android

Android

LAN to computer

Yes

Yes

Yes

Yes

Yes

LCD

8 inch, 800×600 pels,

8 inch, 800×600 pels,

8 inch, 800×600 pels,

8 inch, 800×600 pels,

8 inch, 800×600 pels,

Communication

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

USB2.0 , LAN, wifi

Dimension

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

390mm×270mm×

255mm (L×W×H)

Weight

9kg

9kg

9kg

9kg

9kg

Power Supply

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W

85-264VAC, 47-63Hz, 600W
