Item |
Specification |
STM-3025 B1 |

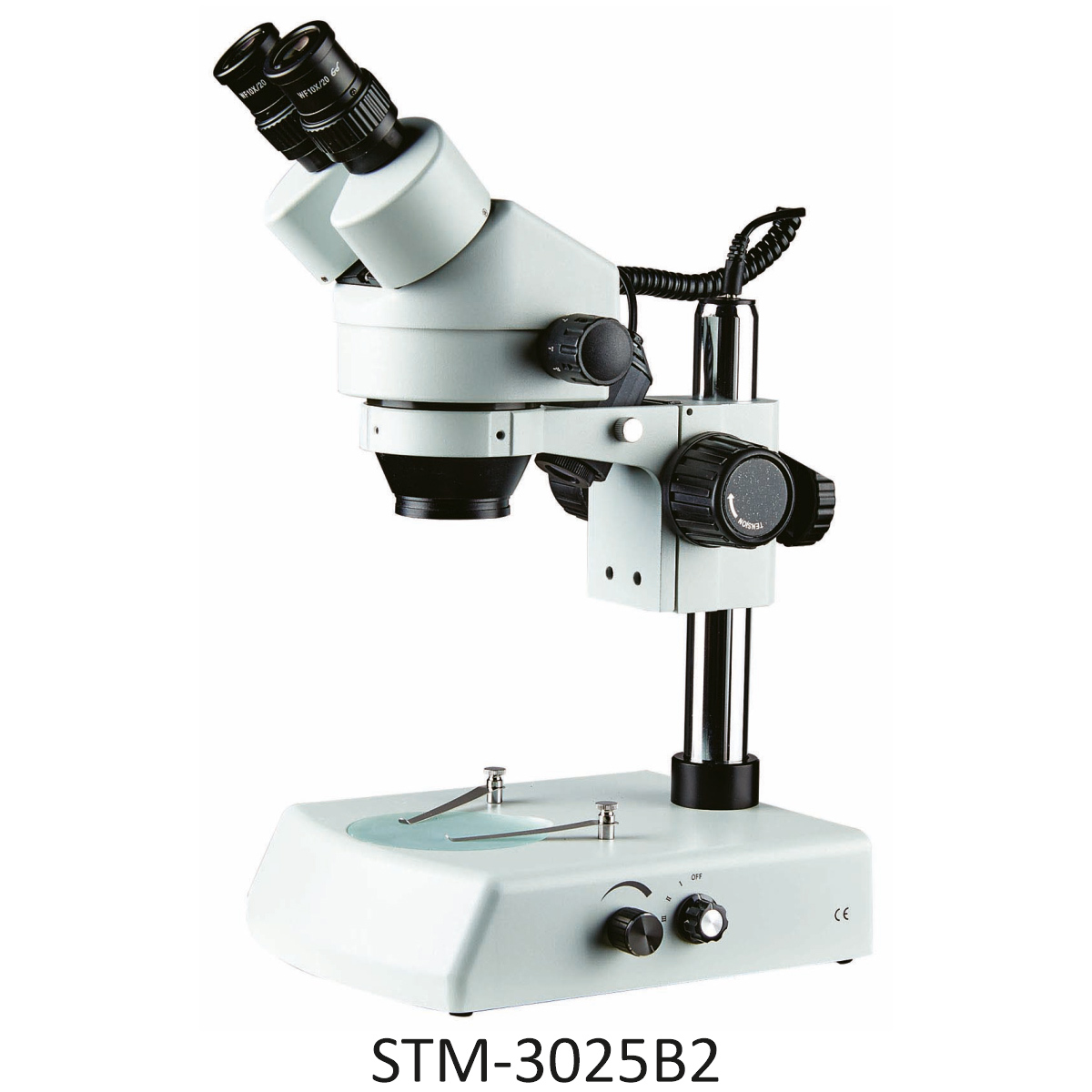

STM-3025B2 |

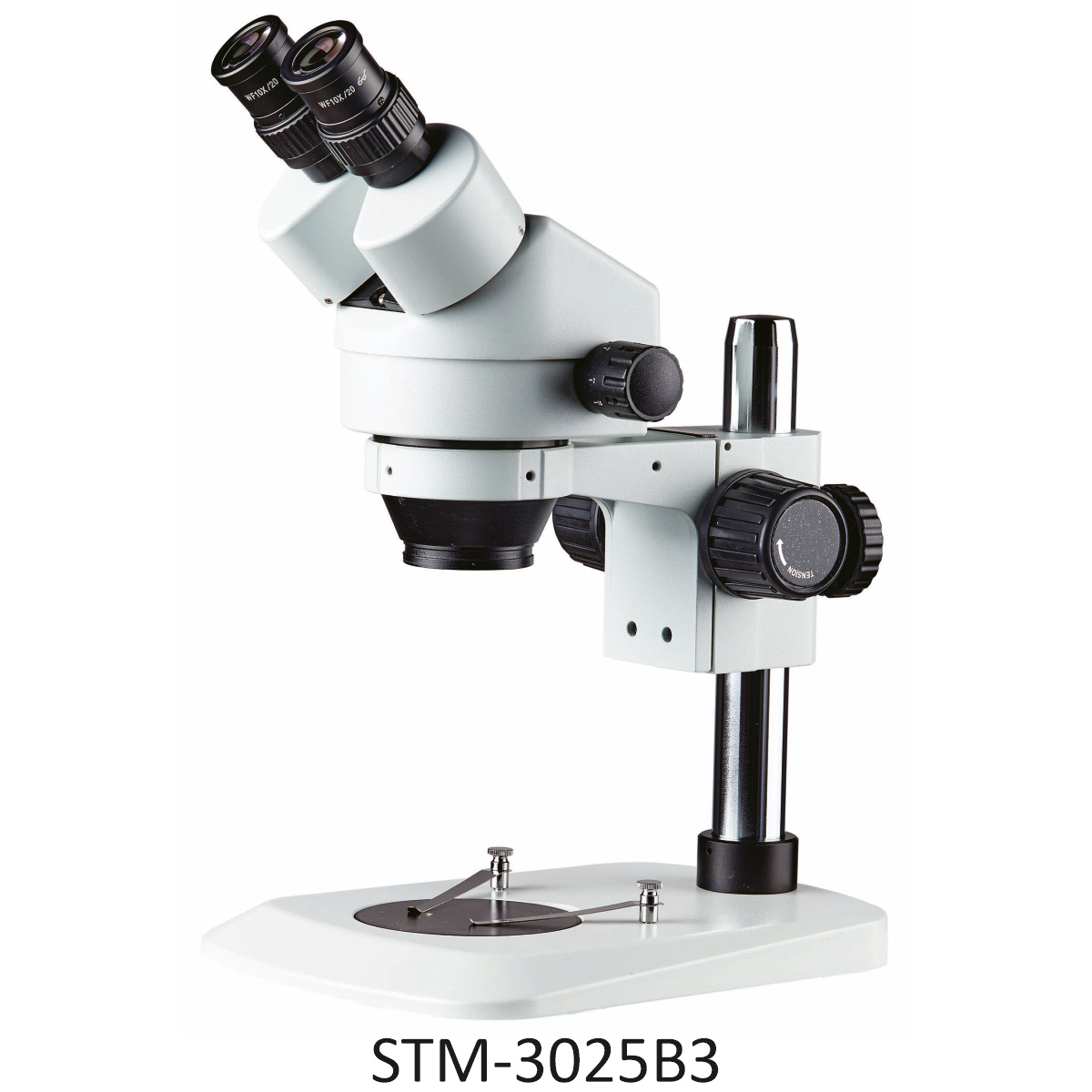

STM-3025 B3 |

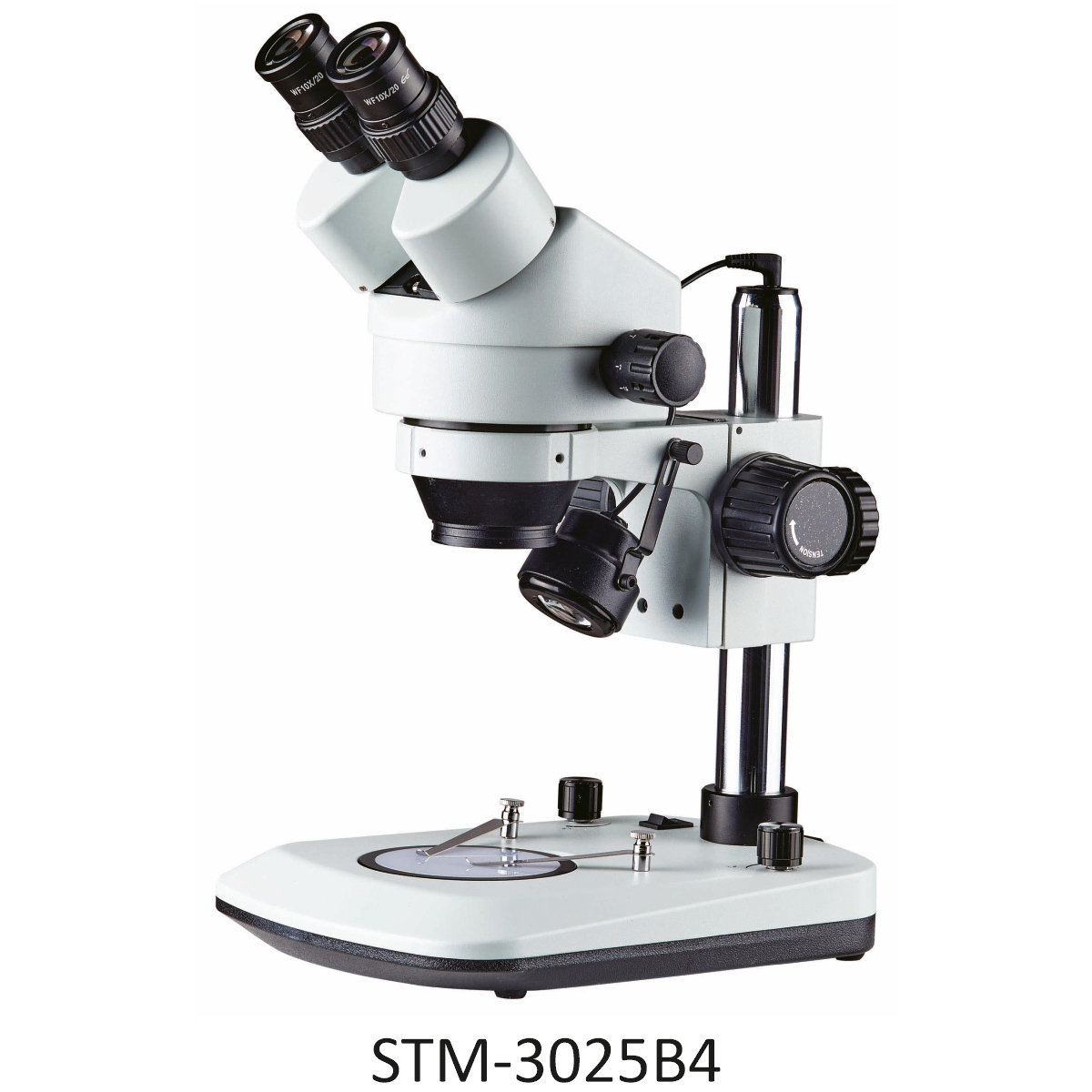

STM-3025 B4 |
|
|
Viewing Head |
Binocular head, inclined at 45°, Interpupillary Distance 54-76mm, diopter adjustment for both tubes, 30mm tube |
Standard |
Standard |
Standard |
Standard |
|
|
Trinocular head, inclined at 45°, Interpupillary Distance, 54-76mm, 2:8, diopter adjustment for both tubes, 30mm tube |
Optional |
Optional |
Optional |
Optional |
||
|
Eyepiece |
WF10×/ 20mm eyepiece (micrometer is optional) |
Standard |
Standard |
Standard |
Standard |
|
|
WF15×/15mm eyepiece (micrometer is optional) |
Optional |
Optional |
Optional |
Optional |
||
|
WF20×/10mm eyepiece (micrometer is optional) |
Optional |
Optional |
Optional |
Optional |
||
|
WF25×/9mm eyepiece |
Optional |
Optional |
Optional |
Optional |
||
|
WF30×/8mm eyepiece |
Optional |
Optional |
Optional |
Optional |
||
|
Objective |
Zoom objective |
0.7×-4.5× |
Standard |
Standard |
Standard |
Standard |
|
Auxiliary objective |
2×, W.D.: 30mm |
Optional |
Optional |
Optional |
Optional |
|
|
1.5×, W.D.: 45mm |
Optional |
Optional |
Optional |
Optional |
||
|
0.5×, W.D.: 165mm |
Optional |
Optional |
Optional |
Optional |
||
|
Zoom Ratio |
1:6.3 |
Standard |
Standard |
Standard |
Standard |
|
|
Working Distance |
100mm |
Standard |
Standard |
Standard |
Standard |
|
|
Head Mount |
76mm |
Standard |
Standard |
Standard |
Standard |
|
|
Illumination |
Transmitted light 12V/15W Halogen, Brightness Adjustable |
|
Standard |
|
|
|
|
Incident light 12V/15W Halogen, Brightness Adjustable |
|
Standard |
|
|
||
|
Transmitted light 3W LED, Brightness Adjustable |
|
Optional |
|
Standard |
||
|
Incident light 3W LED, Brightness Adjustable |
|
Optional |
|
Standard |
||
|
LED ring light |
Optional |
Optional |
Optional |
Optional |
||
|
Cold light source |
Optional |
Optional |
Optional |
Optional |
||
|
Focusing Arm |
Coarse focusing, focusing range 50mm |
Standard |
Standard |
Standard |
Standard |
|
|
Pillar Stand |
Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, Base size: 200×255×22mm, no illumination |
Standard |
|
|
|
|
|
Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, glass plate, Base size: 200×255×60mm, Halogen illumination |
|
Standard |
|
|
||
|
Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, Base size: 205×275×22mm, no illumination |
|
|
Standard |
|
||
|
Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, glass plate, Base size: 205×275×40mm, LED illumination |
|
|
|
Standard |
||
|
C-Mount |
0.35× C-mount |
Optional |
Optional |
Optional |
Optional |
|
|
0.5× C-mount |
Optional |
Optional |
Optional |
Optional |
||
|
1× C-mount |
Optional |
Optional |
Optional |
Optional |
||
|
Package |
1pc/1carton, 38.5cm*24cm*37cm, Net/Gross Weight: 4.5/5.5kg |
Standard |
Standard |
Standard |
Standard |
|
STM-3025 series microscopes are widely used in education, lab research, biology, metallurgy, engineering, chemistry, manufacturing, and in the medical, forensic science and veterinary industries. The microscopes can be used for circuit board repair and inspection, SMT work, electronics inspection, dissection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts
|
