STM-3020 Series
Zoom Stereo Microscope

Stereo microscopes are also known as low magnification and dissecting microscopes. STM-3020 Stereo Zoom Microscope on a post stand offers upright, un-reversed 3D images that very clear throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

STM-3020 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary STM-3020 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular!
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Application
  • Literature
  • User Manual

Features

  • High quality, high function and excellent cost performance.
  • High resolution, Wide viewing field, Long working distance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
  • Ideal instrument in academic, medical and industrial field.

Specifications

Item

Specification

STM-

3020B

STM-

3020T

STM-

3020BD

Viewing Head

Binocular head, inclined at 45°, Interpupilary Distance 55-75mm

Standard





Binocular head, inclined at 60°, Interpupilary Distance 55-75mm

Optional

Optional

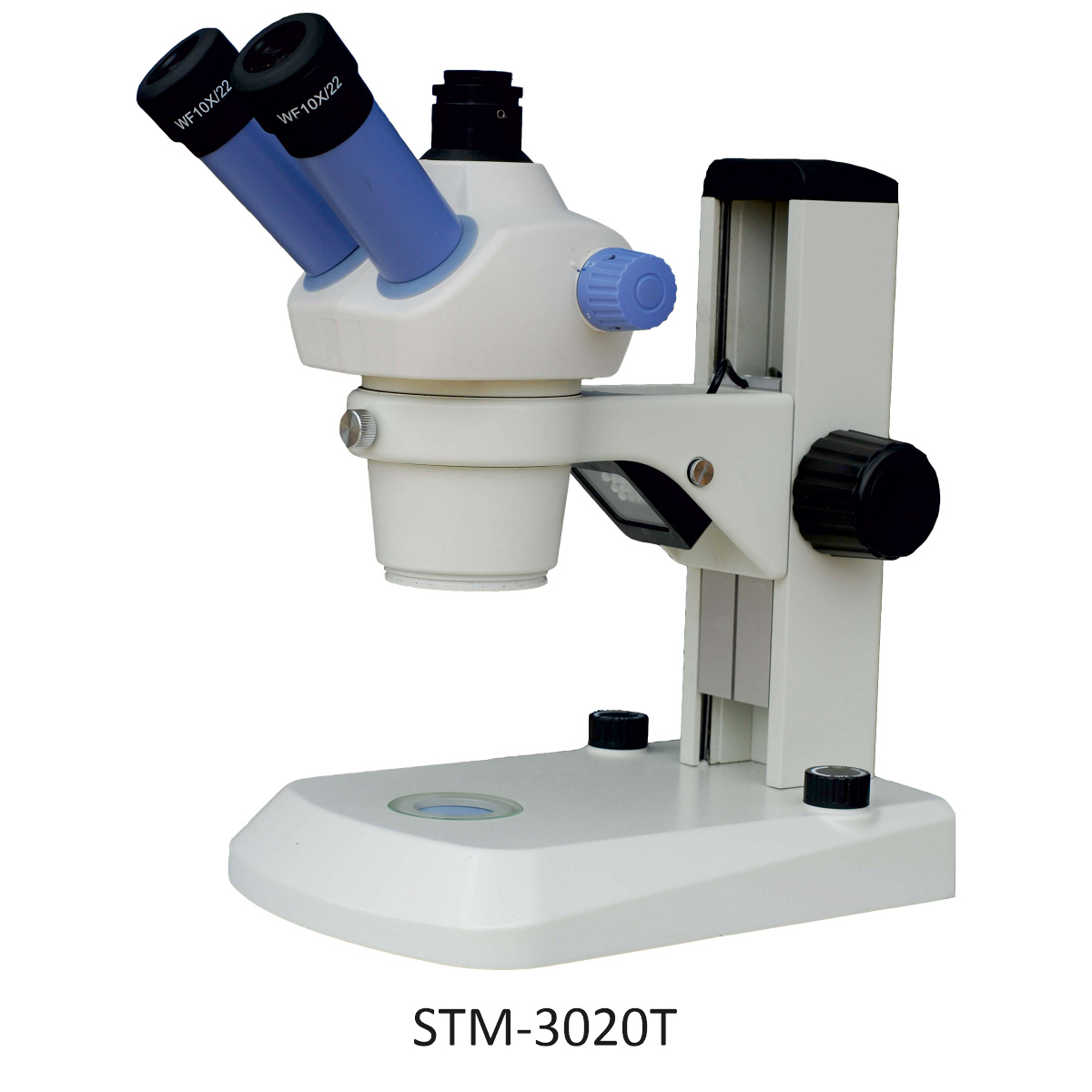

Trinocular head, inclined at 45°, Interpupilary Distance, 55-75mm



Standard

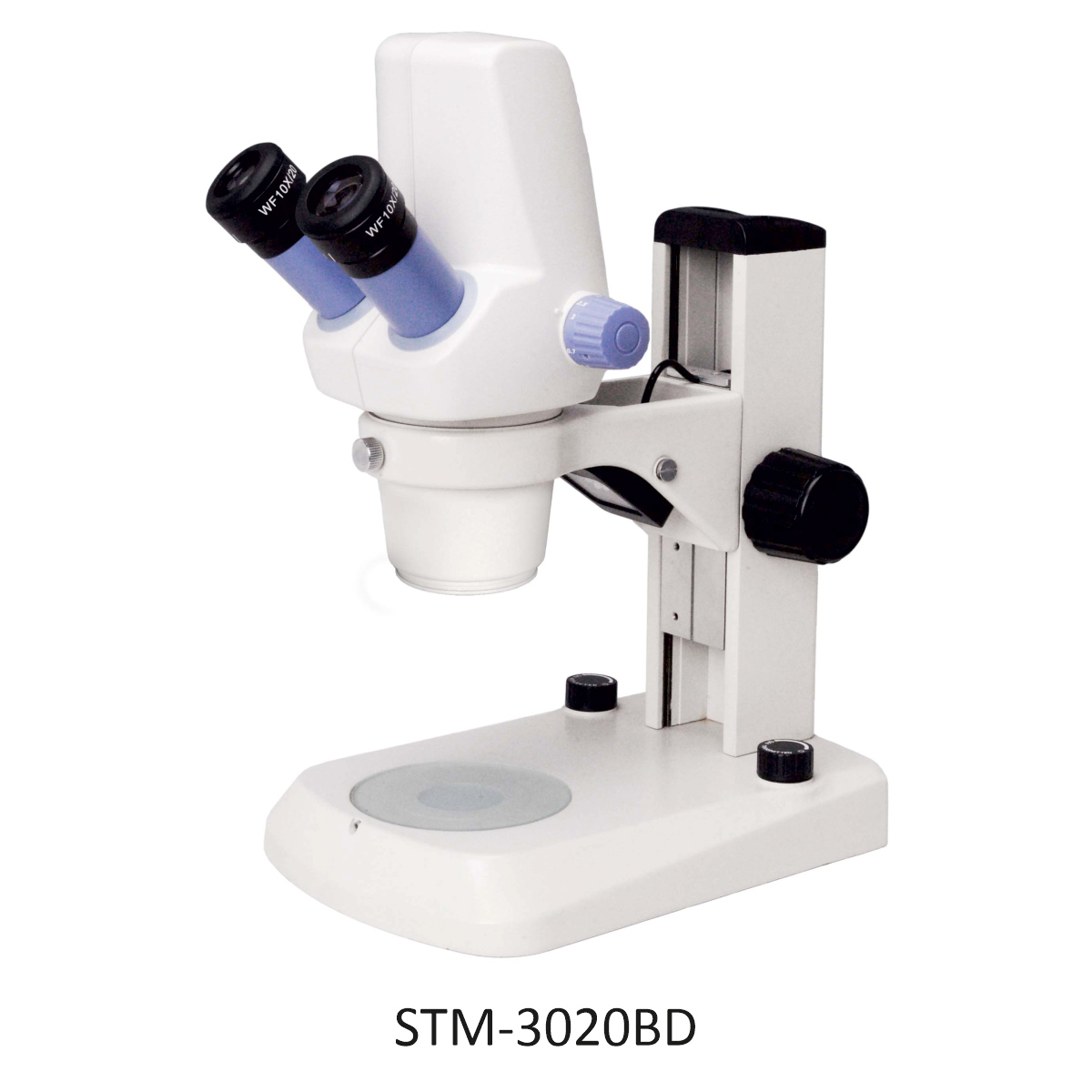

Binocular head with 1.3MP digital camera, inclined at 45°, Interpupilary Distance 55-75mm, ScopeImage 9.0 software





Standard

Eyepiece

Wide field eyepiece 10×/ 20mm

Standard

Standard

Standard

Wide field eyepiece 15×/ 16mm

Optional

Optional

Optional

Wide field eyepiece 20×/ 12mm

Optional

Optional

Optional

Wide field eyepiece 30×/8mm

Optional

Optional

Optional

WF10× Eyepiece with cross line

Optional

Optional

Optional

Objective

Zoom objective

0.7×～3×

Optional

Optional

Optional

1×～4.5×

Standard

Standard

Standard

Auxiliary objective

2×, W.D.: 30mm

Optional

Optional

Optional

0.75×, W.D.: 120mm

Optional

Optional

Optional

0.63×, W.D.: 137mm

Optional

Optional

Optional

0.5×, W.D.: 180mm

Optional

Optional

Optional

Zoom Ratio

1:4.3

Optional

Optional

Optional

1:4.5

Standard

Standard

Standard

Working Distance

97mm

Standard

Standard

Standard

Focusing

Coarse Focus, Focusing Range 100mm

Standard

Standard

Standard

Illumination

Incident Illumination 100V-240V/ LED

Standard

Standard

Standard

Transmitted Illumination 100V-240V/ LED

Standard

Standard

Standard

Attachment

Photo Attachment (Used for connecting Nikon or Canon DSLR camera to the microscope)

Optional

Optional

Optional

Video Attachment (0.5× C-mount)

Standard

Standard

Standard

Package

1pc/carton, 36.5cm*31cm*52cm, 6kg

Standard

Standard

Standard



Application

The microscope can be used for circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.

Literature

STM-3020 Series Brochure

User Manual

STM-3020 Series User Manual

Features

  • High quality, high function and excellent cost performance.
  • High resolution, Wide viewing field, Long working distance.
  • Ergonomic design, sharp image display, wide viewing field and easy to operate.
  • Providing a wide viewing field of Φ20mm with the zoom ratio of 1:4.5.
  • Ideal instrument in academic, medical and industrial field.

Specifications

Item

Specification

STM-

3020B

STM-

3020T

STM-

3020BD

Viewing Head

Binocular head, inclined at 45°, Interpupilary Distance 55-75mm

Standard





Binocular head, inclined at 60°, Interpupilary Distance 55-75mm

Optional

Optional



Trinocular head, inclined at 45°, Interpupilary Distance, 55-75mm



Standard



Binocular head with 1.3MP digital camera, inclined at 45°, Interpupilary Distance 55-75mm, ScopeImage 9.0 software





Standard

Eyepiece

Wide field eyepiece 10×/ 20mm

Standard

Standard

Standard

Wide field eyepiece 15×/ 16mm

Optional

Optional

Optional

Wide field eyepiece 20×/ 12mm

Optional

Optional

Optional

Wide field eyepiece 30×/8mm

Optional

Optional

Optional

WF10× Eyepiece with cross line

Optional

Optional

Optional

Objective

Zoom objective

0.7×～3×

Optional

Optional

Optional

1×～4.5×

Standard

Standard

Standard

Auxiliary objective

2×, W.D.: 30mm

Optional

Optional

Optional

0.75×, W.D.: 120mm

Optional

Optional

Optional

0.63×, W.D.: 137mm

Optional

Optional

Optional

0.5×, W.D.: 180mm

Optional

Optional

Optional

Zoom Ratio

1:4.3

Optional

Optional

Optional

1:4.5

Standard

Standard

Standard

Working Distance

97mm

Standard

Standard

Standard

Focusing

Coarse Focus, Focusing Range 100mm

Standard

Standard

Standard

Illumination

Incident Illumination 100V-240V/ LED

Standard

Standard

Standard

Transmitted Illumination 100V-240V/ LED

Standard

Standard

Standard

Attachment

Photo Attachment (Used for connecting Nikon or Canon DSLR camera to the microscope)

Optional

Optional

Optional

Video Attachment (0.5× C-mount)

Standard

Standard

Standard

Package

1pc/carton, 36.5cm*31cm*52cm, 6kg

Standard

Standard

Standard



Application

The microscope can be used for circuit board repair and inspection, SMT work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts.
