STM-3040 Series
Zoom Stereo Microscope

Stereo microscopes are also known as low magnification and dissecting microscopes. STM-3040 Zoom Stereo Microscope on a post stand offers upright, un-reversed 3 D images that remain in focus throughout the zoom range. Optional eyepieces and auxiliary objectives expand magnification range and working distances.

STM-3040 is a very popular zoom stereo microscope. Optional cold light and ring light can be chosen for this microscope. You can also choose trinocular head to add digital camera with the appropriate camera adapter. In summary, STM-3040 gives many range of magnifications, working distances, photo options, accessories and is very convenient to use – no wonder it is popular
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Application
  • Literature
  • User Manual

Features

  • With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
  • With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 20,000 hours.
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.
  • STM-3040BD Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish).
  • STM-3040BD support Windows Vista / Win 7 / Win8 / Mac Operation System. The software can preview, take photos and video, do image processing and measurement.

Specifications

Item

Specification

STM-3040

B

STM-3040

T

STM-3040

BD

Viewing Head

Binocular Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm

Standard

Optional

Optional

Binocular Viewing Head, Inclined at 60°, Interpupillary Distance 52-75mm

Optional

Optional

Optional

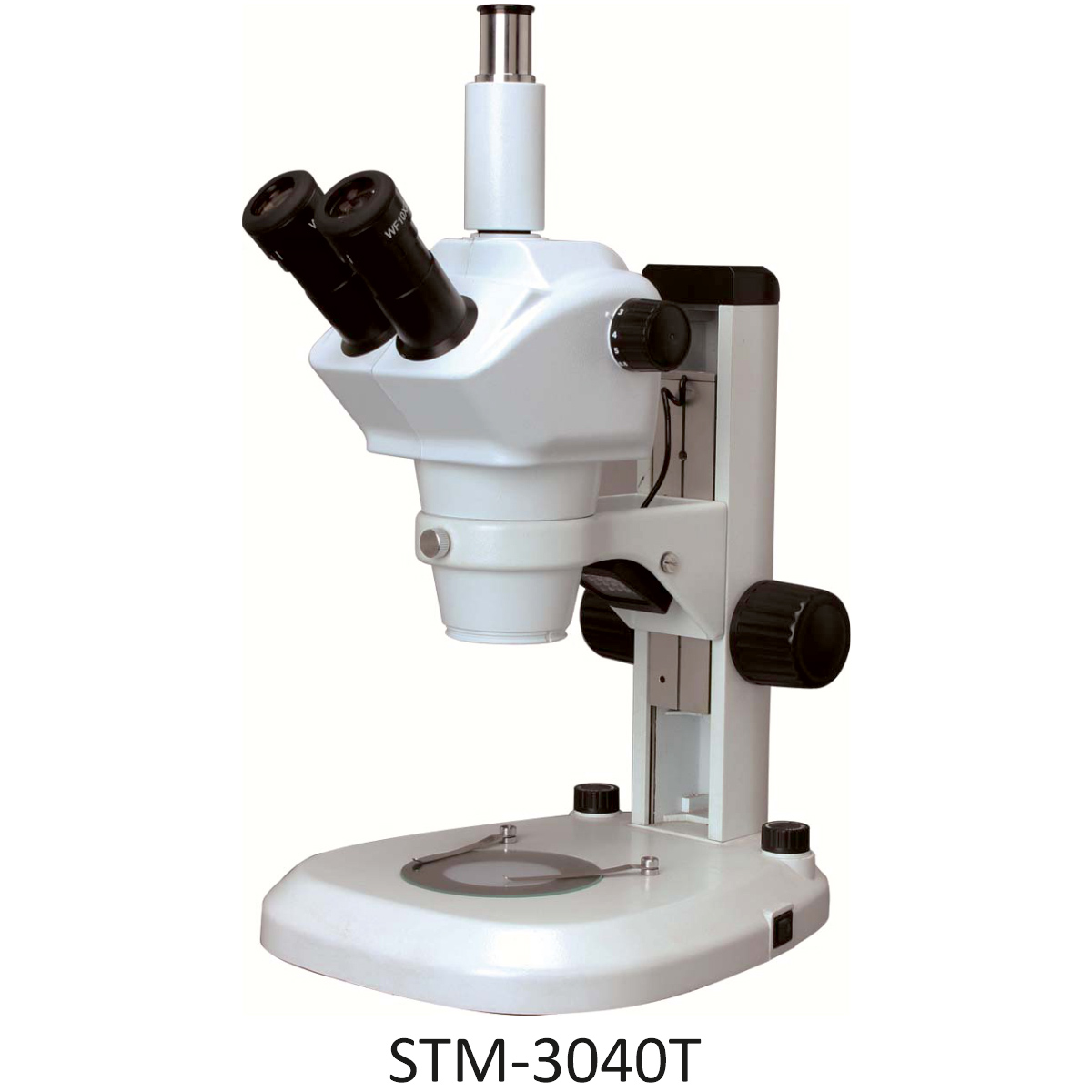

Trinocular Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm

Optional

Standard

Optional

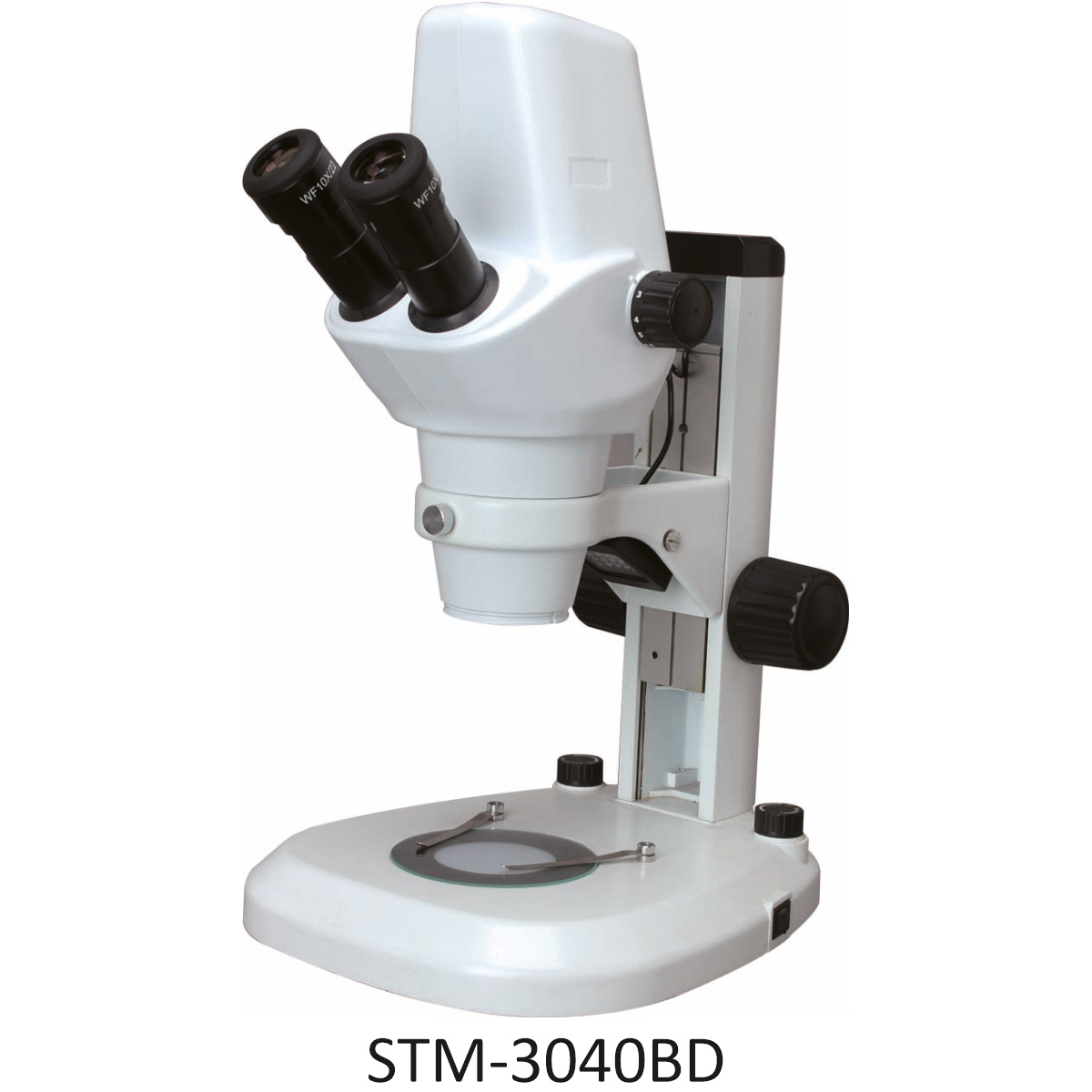

Digital Binocular Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm, 3.2MP(2048×1536), ScopeImage 9.0 Software

Optional

Optional

Standard

Eyepiece

Extra wide field eyepiece EW10×/22mm

Standard

Standard

Standard

WF15×/Φ16mm

Optional

Optional

Optional

WF20×/Φ12mm

Optional

Optional

Optional

WF30×/Φ8mm

Optional

Optional

Optional

Zoom Objective

0.8×-5×

Standard

Standard

Standard

Zoom Ratio

6.3:1

Standard

Standard

Standard

Working Distance

115mm

Standard

Standard

Standard

Auxiliary objective

0.5×, W.D.: 220mm

Optional

Optional

Optional

0.7×, W.D.: 125mm

Optional

Optional

Optional

2×, W.D.: 45mm

Optional

Optional

Optional

Stage Plate

Glass Insert Plate, Diameter 100mm

Standard

Standard

Standard

White&Black round plate, Diameter 100mm

Standard

Standard

Standard

Focusing Unit

Coarse Focus Knob with tension adjustable, Moving range 105mm

Standard

Standard

Standard

Illumination

Incident Illumination 100V-240V/ LED

Standard

Standard

Standard

Transmitted Illumination 100V-240V/ LED

Standard

Standard

Standard

Attachment

Photo Attachment

Optional

Optional

Optional

Video Attachment

Optional

Optional

Optional

Package

1pc/carton, 36.5cm*31cm*52cm, 8.5kg

Standard

Standard

Standard



Application

STM-3040 Series stereo zoom microscopes are of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.



Literature

STM-3040 Series Brochure

User Manual

STM-3040 Series User Manual

Features

  • With high quality optical components, providing sharp and striking contrast image and ensure flat image at large depth of field, Ease the tiredness with ergonomic design.
  • With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 20,000 hours.
  • With Complete eyepieces, objectives and accessories, it is an ideal instrument for industry assembling, inspection and teaching field.
  • STM-3040BD Support Multi-language (Arabic, Chinese, English, French, Germen, Japanese, Polish).
  • STM-3040BD support Windows Vista / Win 7 / Win8 / Mac Operation System. The software can preview, take photos and video, do image processing and measurement.

Specifications

Item

Specification

STM-3040

B

STM-3040

T

STM-3040

BD

Viewing Head

Binocular Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm

Standard

Optional

Optional

Binocular Viewing Head, Inclined at 60°, Interpupillary Distance 52-75mm

Optional

Optional

Optional

Trinocular Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm

Optional

Standard

Optional

Digital Binocular Viewing Head, Inclined at 45°, Interpupillary Distance 52-75mm, 3.2MP(2048×1536), ScopeImage 9.0 Software

Optional

Optional

Standard

Eyepiece

Extra wide field eyepiece EW10×/22mm

Standard

Standard

Standard

WF15×/Φ16mm

Optional

Optional

Optional

WF20×/Φ12mm

Optional

Optional

Optional

WF30×/Φ8mm

Optional

Optional

Optional

Zoom Objective

0.8×-5×

Standard

Standard

Standard

Zoom Ratio

6.3:1

Standard

Standard

Standard

Working Distance

115mm

Standard

Standard

Standard

Auxiliary objective

0.5×, W.D.: 220mm

Optional

Optional

Optional

0.7×, W.D.: 125mm

Optional

Optional

Optional

2×, W.D.: 45mm

Optional

Optional

Optional

Stage Plate

Glass Insert Plate, Diameter 100mm

Standard

Standard

Standard

White&Black round plate, Diameter 100mm

Standard

Standard

Standard

Focusing Unit

Coarse Focus Knob with tension adjustable, Moving range 105mm

Standard

Standard

Standard

Illumination

Incident Illumination 100V-240V/ LED

Standard

Standard

Standard

Transmitted Illumination 100V-240V/ LED

Standard

Standard

Standard

Attachment

Photo Attachment

Optional

Optional

Optional

Video Attachment

Optional

Optional

Optional

Package

1pc/carton, 36.5cm*31cm*52cm, 8.5kg

Standard

Standard

Standard



Application

STM-3040 Series stereo zoom microscopes are of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, and repair and inspection of small parts.
