Item |
Specification |
STM-6002 TR |
STM-6002 TTR |
|
|
Optical System |
Infinite Optical System |
Standard |
Standard |
|
|
Viewing Head |
Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm, Tube diameter: 30mm |
Optional |
Optional |
|
|
Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupillary Distance: 48-76mm, Tube diameter: 30mm. Light distribution (both): 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece) |
Standard |
Standard |
||
|
Eyepieces |
WF10×／22mm (adjustable) |
Standard |
Standard |
|
|
WF10×／22mm (adjustable , reticule 0.1mm) |
Standard |
Standard |
||
|
Long Working Distance Infinite Plan Objective |
LMPlan FL 5×/0.15 |
W.D=21.0mm |
Standard |
Standard |
|
LMPlan FL 10×/0.30 |
W.D=20.0mm |
Standard |
Standard |
|
|
LMPlan FL 20×/0.40 |
W.D=15.0mm |
Standard |
Standard |
|
|
LMPlan FL 50×/0.55 (S) |
W.D=10.0mm |
Standard |
Standard |
|
|
LMPlan FL 50×/0.75 (S) |
W.D=4.25mm |
Optional |
Optional |
|
|
LPL 80×/0.80 (S) |
W.D=0.85mm |
Optional |
Optional |
|
|
LMPlan FL 100×/0.85 (S, Dry) |
W.D=3.00mm |
Optional |
Optional |
|
|
Nosepiece |
Backward Quintuple Nosepiece |
Standard |
Standard |
|
|
Mechanical Stage |
Stage size: 200mm × 150mm, Travel range: 77mm × 52mm. Stage fast lowering unit: Up-Down moving range can be increased to 50mm |
Standard |
|
|
|
Stage size: 182mm × 140mm, Travel range: 77mm × 52mm Two slid holder, Metal plate size: 200mm x 150mm |
|
Standard |
||
|
Focus |
Coaxial Coarse and Fine Focusing, Fine Division 0.002mm, Fine Stroke 0.2mm per Rotation, Moving Range 25mm. Tightness adjustment, upper distance limiter |
Standard |
Standard |
|
|
Micrometer |
Stage Micrometer 0.01mm |
Optional |
Optional |
|
|
Polarizing Unit |
Polarizing and Analyzer attachment |
Standard |
Standard |
|
|
Condenser |
Abbe N.A. 1.25 with Iris Diaphragm |
|
Standard |
|
|
Reflected Illumination |
5W LED lamp (Input voltage: 100V～240V) |
Standard |
Standard |
|
|
12V/50W Halogen lamp (Input voltage: 100V～240V) |
Optional |
Optional |
||
|
Transmitted Illumination |
5W LED lamp (Input voltage: 100V～240V) |
|
Standard |
|
|
6V/30W Halogen lamp (Input voltage: 100V～240V) |
|
Optional |
||
|
Filter |
Blue |
Standard |
Standard |
|
|
Green |
Optional |
Optional |
||
|
Amber |
Optional |
Optional |
||
|
Grey |
Optional |
Optional |
||
|
C-mount Adapter |
1× C-mount (Focus Adjustable) |
Optional |
Optional |
|
|
0.75× C-mount (Focus Adjustable) |
|
|
||
|
0.5× C-mount (Focus Adjustable) |
Optional |
Optional |
||
|
Packing |
Packing Size: 520×470×430mm, Gross Weight: 16 kgs, Net Weight: 12kgs |
Standard |
Standard |
|

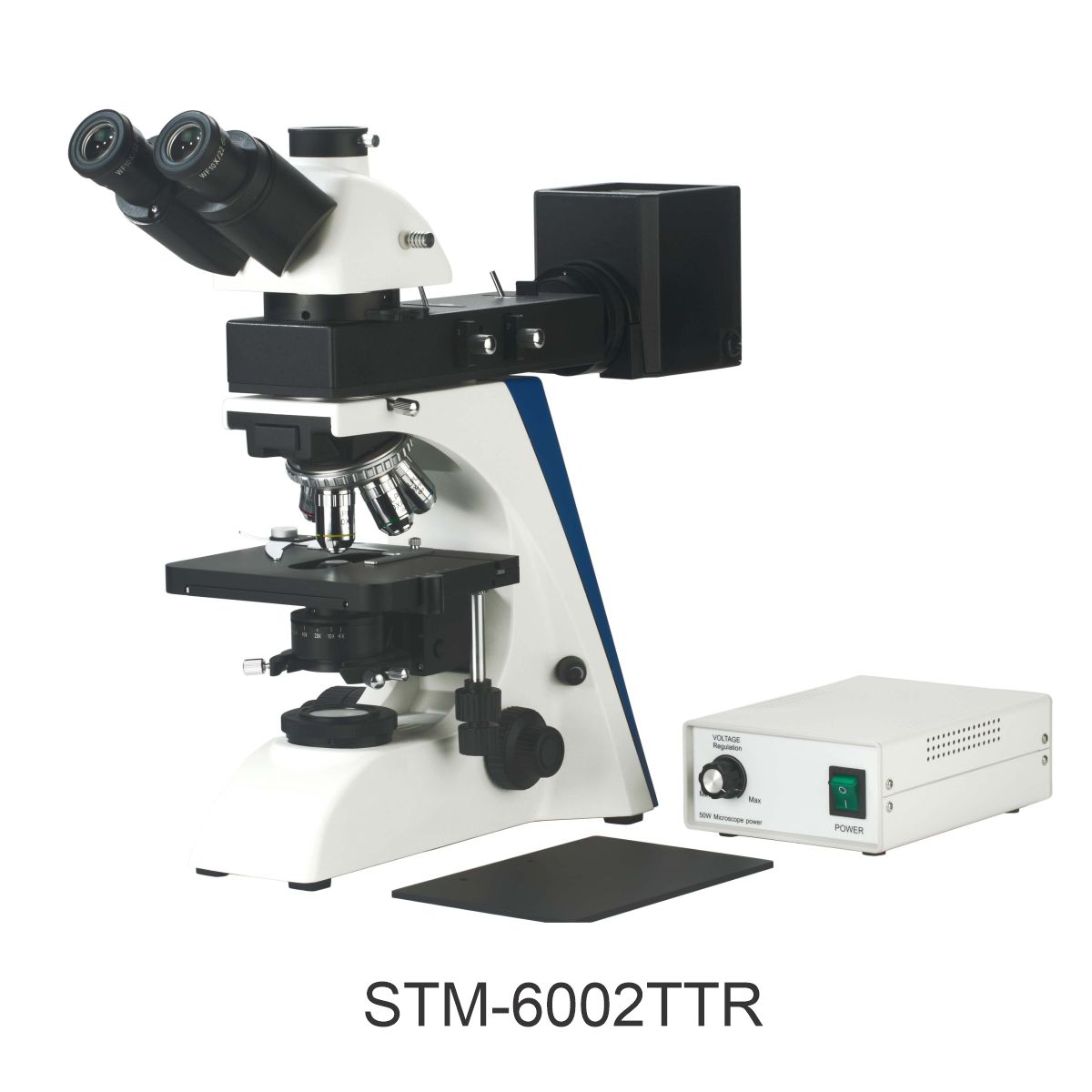

STM-6002R series metallurgical microscopes are widely used in institutes and laboratories to observe and identify the structure of various metal and alloy, they also can be widely used in electronics, chemical and instrumentation industry, observe the opaque material and transparent material, such as metal, ceramics, integrated circuits, electronic chips, printed circuit boards, LCD panels, film, powder, toner, wire, fibers, plated coatings, and other non-metallic materials and so on.
|
