Item |
Specification |
STM-3014A |
STM-3014B |
STM-3014C |
STM-3014D |
|
Head |
Binocular Viewing Head, Inclined at 45°, 360° rotatable, Interpupillary adjusting distance 54-76mm, left eyepiece with diopter adjustment±5 |
Standard |
Standard |
Standard |
Standard |
|
Eyepiece |
High eyepoint WF10×/20mm eyepiece |
Standard |
Standard |
Standard |
Standard |
|
WF15×/15mm eyepiece |
Optional |
Optional |
Optional |
Optional |
|
|
WF20×/10mm eyepiece |
Optional |
Optional |
Optional |
Optional |
|
|
Objective |
2×, 4× |
Standard |
Standard |
Standard |
Standard |
|
1×, 2× |
Optional |
Optional |
Optional |
Optional |
|
|
1×, 3× |
Optional |
Optional |
Optional |
Optional |
|
|
Magnification |
20×, 40×, with optional eyepiece and auxiliary objective, can be extended to 5×-160× |
Standard |
Standard |
Standard |
Standard |
|
Auxiliary Objective |
0.5× objective, W.D.: 165mm |
Optional |
Optional |
Optional |
Optional |
|
1.5× objective, W.D.: 45mm |
Optional |
Optional |
Optional |
Optional |
|
|
2× objective, W.D.: 30mm |
Optional |
Optional |
Optional |
Optional |
|
|
Working Distance |
100mm |
Standard |
Standard |
Standard |
Standard |
|
Head Mount |
76mm |
Standard |
Standard |
Standard |
Standard |
|
Illumination |
Transmitted light 12V/15W Halogen, Brightness Adjustable |
|
Standard |
|
|
|
Incident light 12V/15W Halogen, Brightness Adjustable |
|
Standard |
|
|
|
|
Transmitted light 3W LED, Brightness Adjustable |
|
Optional |
|
Standard |
|
|
Incident light 3W LED, Brightness Adjustable |
|
Optional |
|
Standard |
|
|
LED ring light |
Optional |
Optional |
Optional |
Optional |
|
|
Cold light source |
Optional |
Optional |
Optional |
Optional |
|
|
Focusing Arm |
Coarse focusing, focusing range 50mm |
Standard |
Standard |
Standard |
Standard |
|
Pillar Stand |
Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, Base size: 200×255×22mm, no illumination |
Standard |
|
|
|
|

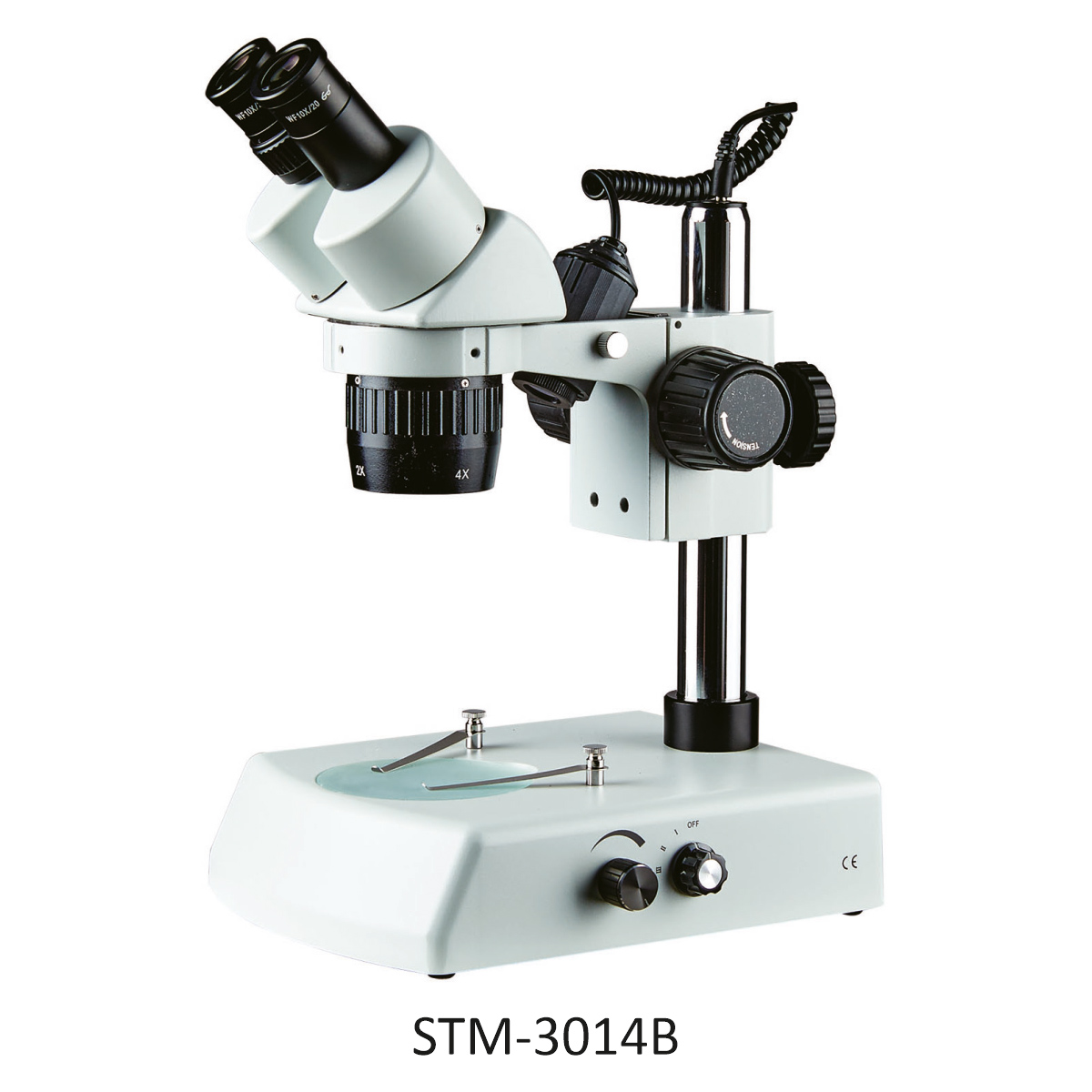

Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, glass plate, Base size: 200×255×60mm, Halogen illumination |
|
Standard |
|
|
|
|

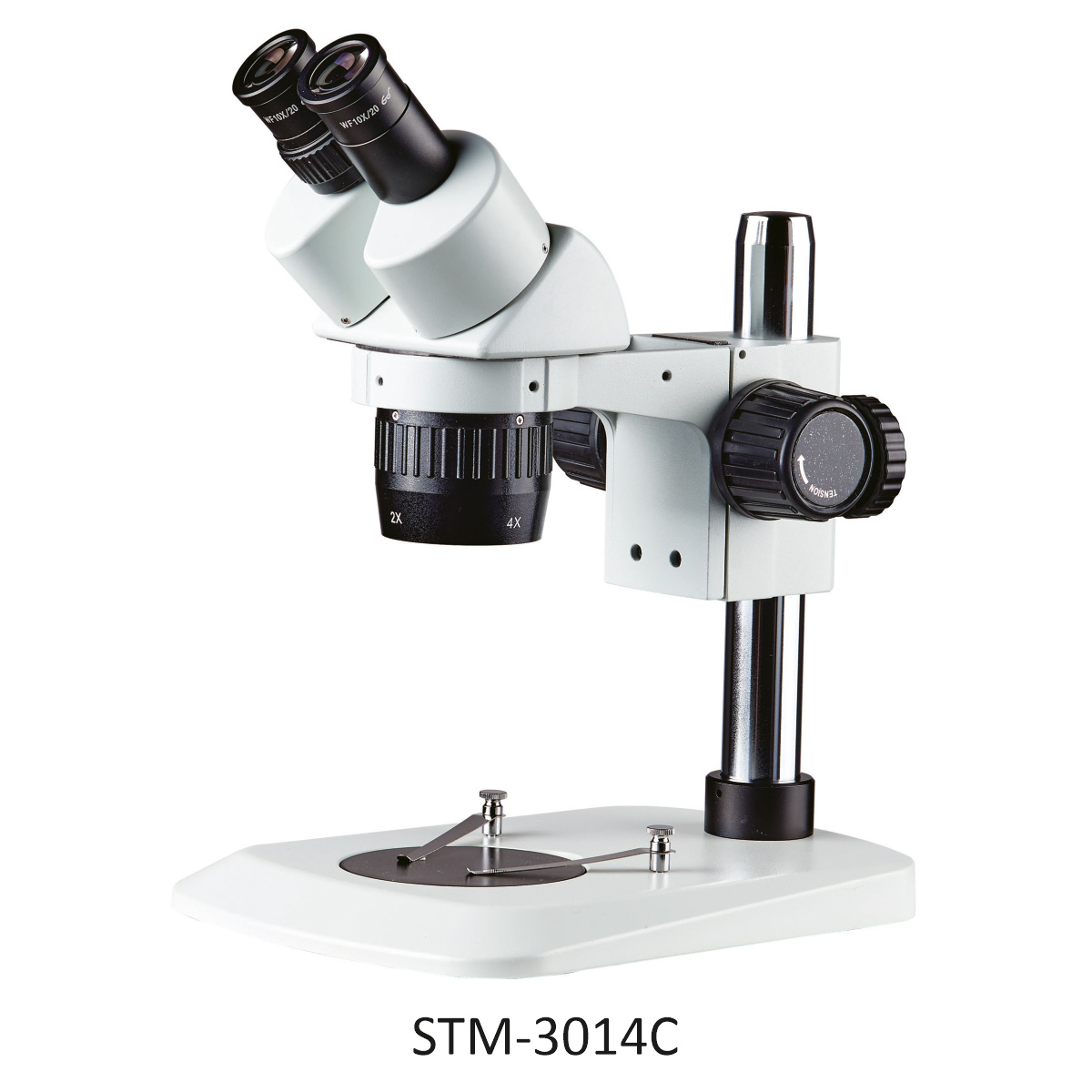

Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, Base size: 205×275×22mm, no illumination |
|
|
Standard |
|
|
|

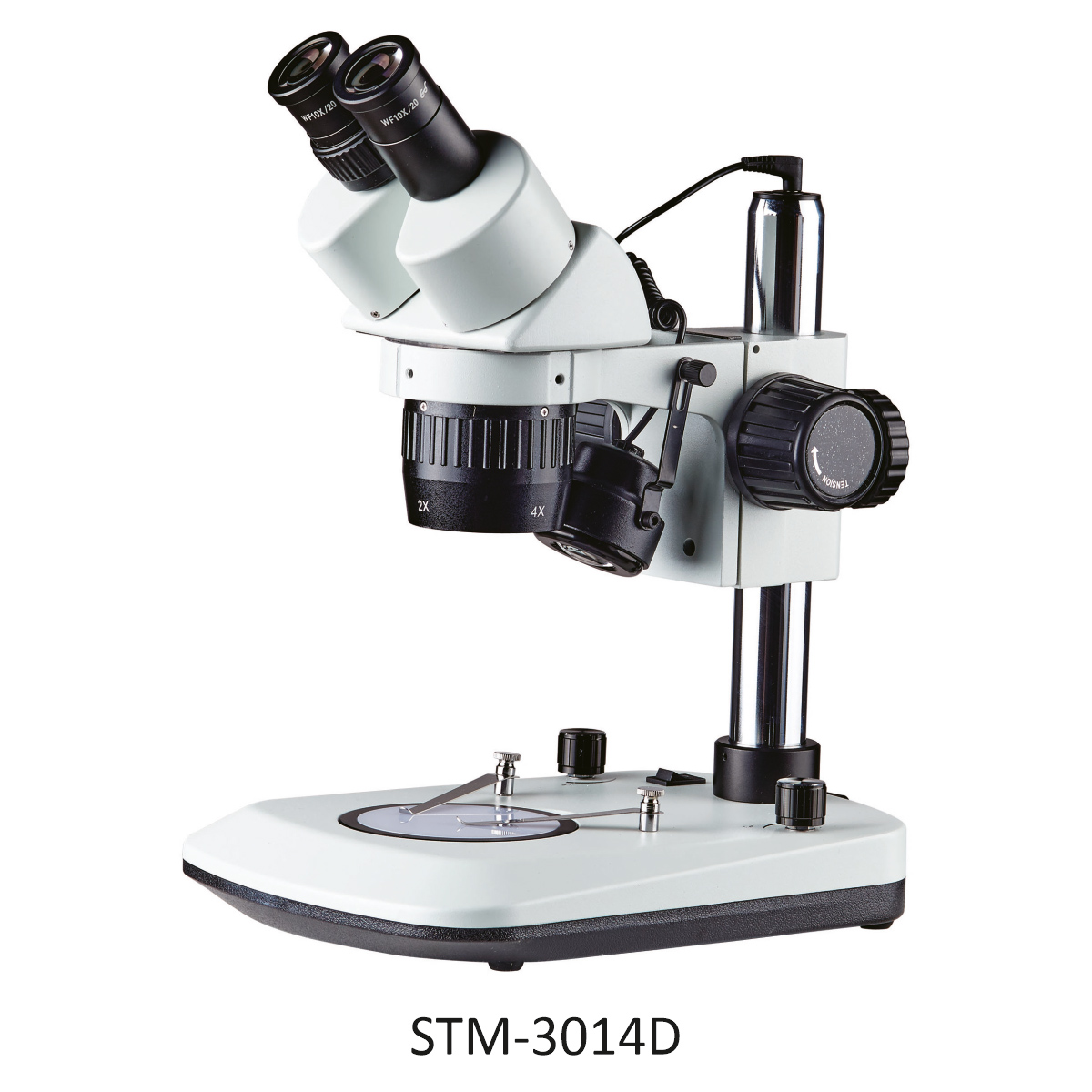

Pole height 240mm, pole diameter Φ32mm, with Clips, Φ95 black&White plate, glass plate, Base size: 205×275×40mm, LED illumination |
|
|
|
Standard |
|
|
Package |
1pc/1carton, 38.5cm*24cm*37cm, Net/Gross Weight: 3.5/4.5kg |
Standard |
Standard |
Standard |
Standard |
The STM-3014 series stereo microscopes are of great value in a variety of applications such as circuit board repair, circuit board inspection, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, repair and inspection of small parts, dissection and school education etc
|
