Stalwart

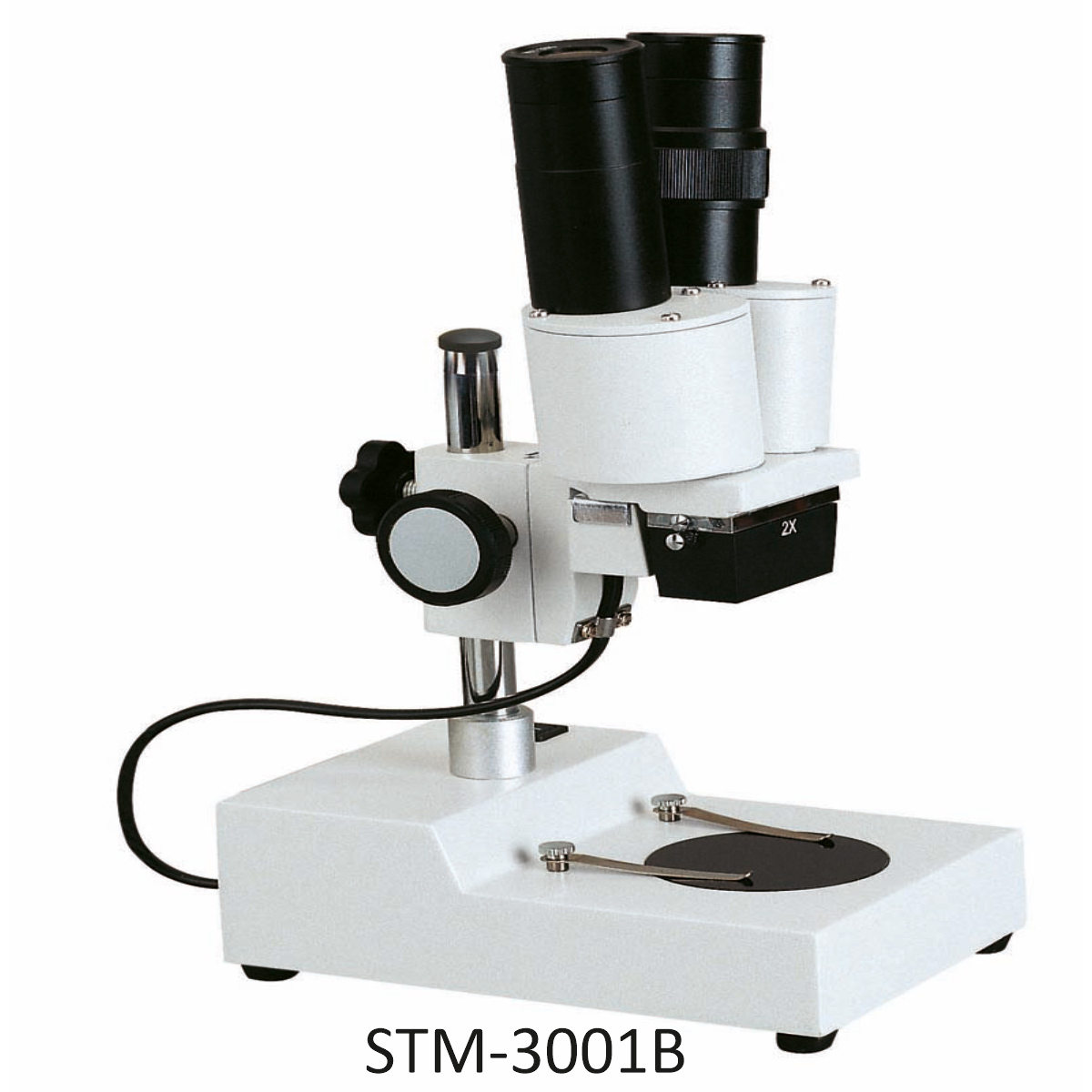

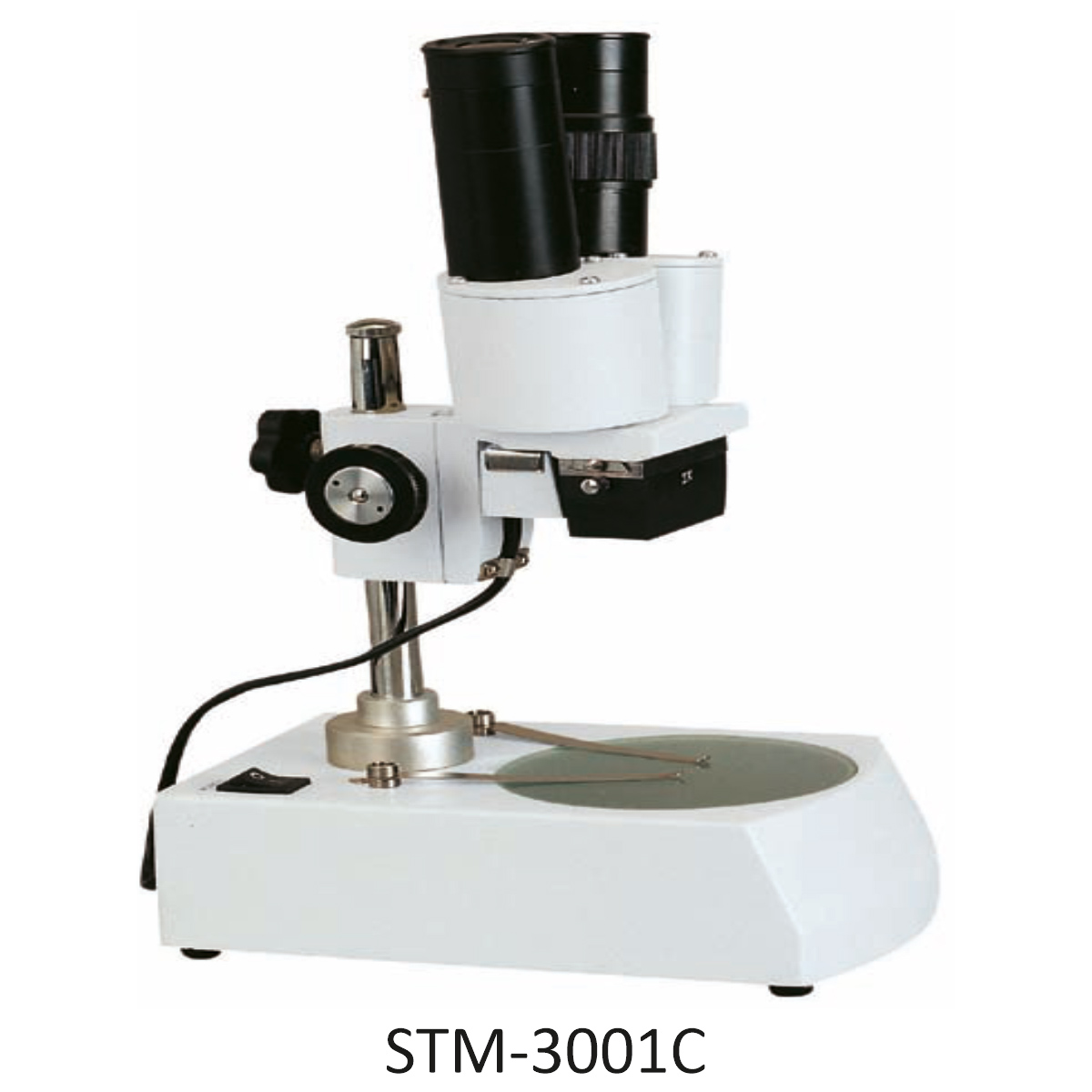

STM-3001 Series

Stereo Microscope

STM-3001 series stereo microscopes are smart and cost-effective stereo microscope. A variety of eyepieces and objectives are available for different requirements. They are widely used in electric factories, schools laboratories, sculpture, families and so on

Quantity :

Add to Inquiry Basket

Features
Specifications
Application
Literature
User Manual

Features

Sharp stereo erect image over a wide field of view.
Upright binocular head with locked-in eyepiece. The left ocular-tube with diopter adjustment ±5dp.
V-shape inserted objective with locked-in structure, easy to replace.
CE approved.
A wide range of accessories for selection.

Specifications

Item	Specification	STM-3001A	STM-3001B	STM-3001C
Viewing Head	Upright Binocular Viewing Head, Interpupillary Distance 55-75mm, diopter adjustment ±5dp on left ocular-tube, Tube diameter 23.2mm	Standard	Standard	Standard
Eyepiece	WF5×/20mm	Optional	Optional	Optional
	WF10×/20mm	Standard	Standard	Standard
	WF15×/15mm	Optional	Optional	Optional
	WF20×/10mm	Optional	Optional	Optional
Objective	1×, Working distance 57mm	Optional	Optional	Optional
	2×, Working distance 80mm	Standard	Standard	Standard
	3×, Working distance 61mm	Optional	Optional	Optional
	4×, Working distance 57mm	Optional	Optional	Optional
	6×, Working distance 66mm	Optional	Optional	Optional
Illumination	Natural illumination, Natural light	Standard
	Incident illumination, Incandescent lamp 12V10W		Standard
	Incident & transmitted illumination, Incandescent lamp 12V10W			Standard
Working Plate	Φ60 White&black Plate	Standard	Standard
Working Plate	Φ95 Frosted glass and White&Black Plate			Standard
Power supply	110V/60HZ or 220V/50HZ.	Standard	Standard	Standard
Package	4pcs/carton, 68cm31cm38cm, Gross weight 11kg, Net weight 7kg	Standard	Standard	Standard

Application

STM-3001 series stereo microscopes are widely applied in school education, circuit board inspection and repair, surface mount technology work, electronics inspection, coin collecting, gemology and gemstone setting, engraving, inspection and repair of small parts

Literature

STM-3001 Series Brochure

User Manual

STM-3001 Series User Manual
