Item

Specification

STM-5062B

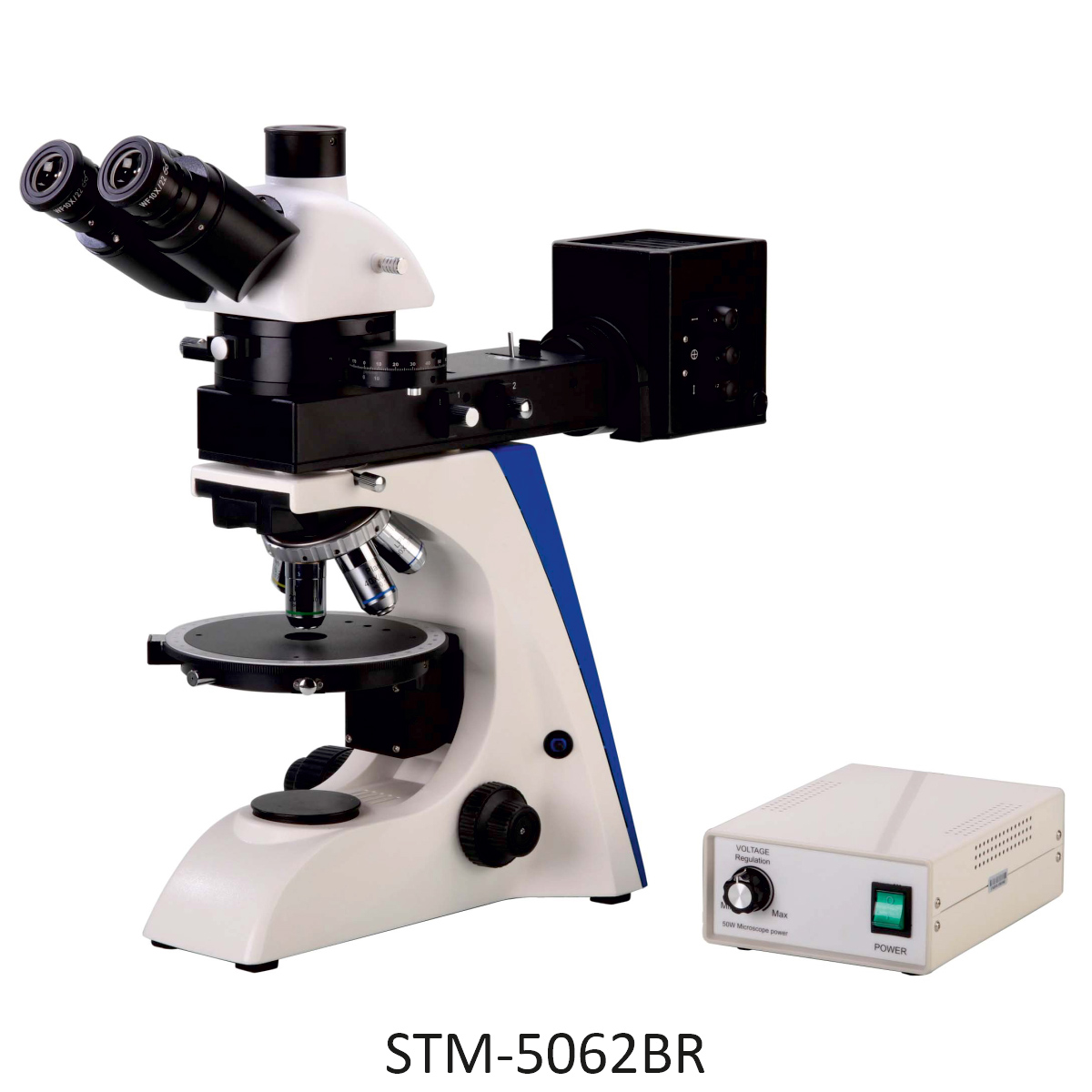

STM-5062BR

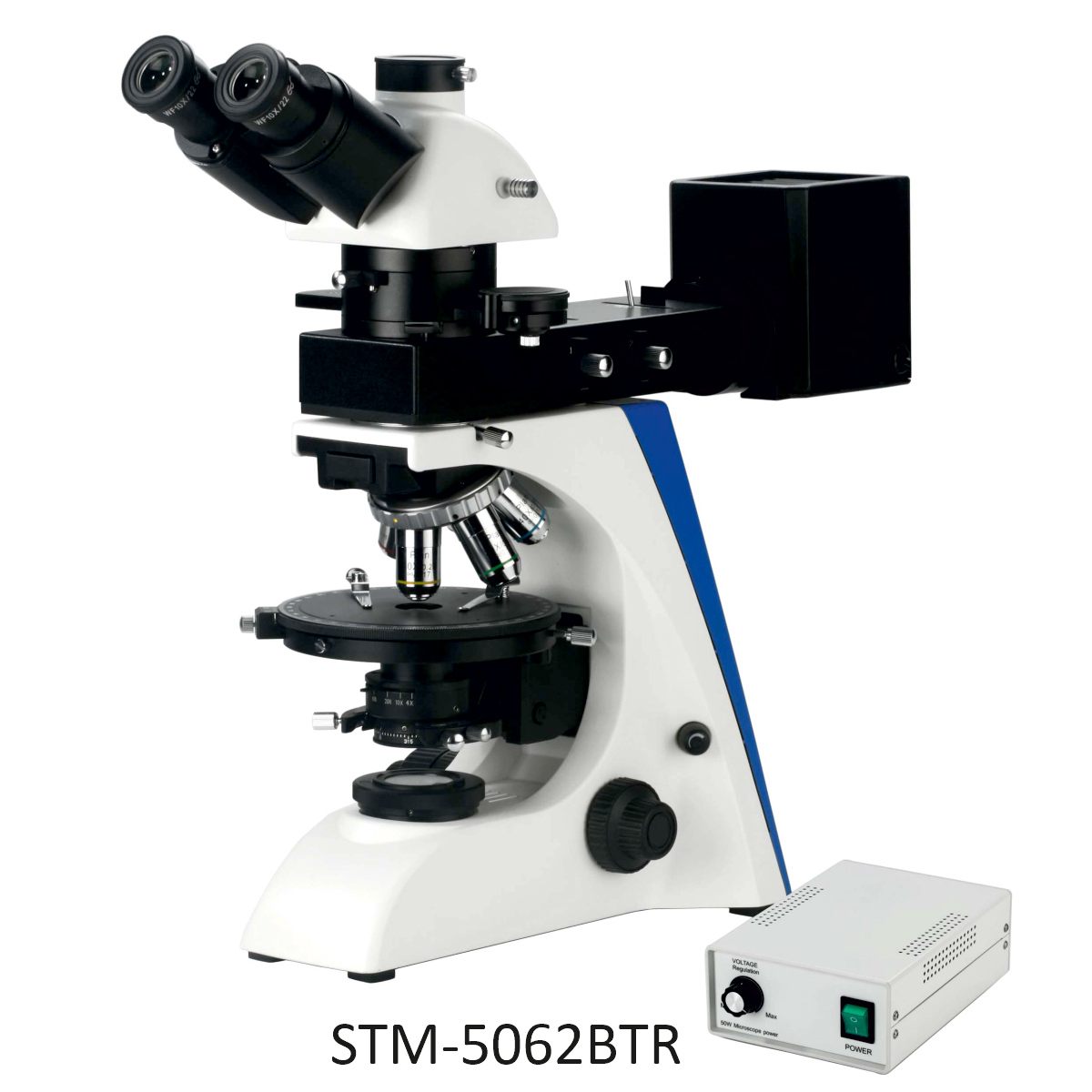

STM-5062BTR

Optical System

Infinite Optical System

Standard

Standard

Standard

Viewing Head

Seidentopf Binocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm.

Standard

Standard

Standard

Seidentopf Trinocular Head, inclined at 30°, 360° Rotatable, Interpupilary Distance: 48-76mm, Light distribution (both) 100: 0 (100% for eyepiece), 80:20 (80% for trinocular head and 20% for eyepiece)

Optional

Optional

Optional

Eyepiece

WF10×/22mm

Standard

WF10×/22 mm (Reticule 0.1mm)

Standard

WF10×/20 mm

Standard

Standard

WF10×/20 mm (Reticule 0.1mm)

Standard

Standard

Infinite Strain Free Plan Achromatic Objective (Transmitted)

4×/0.10       W.D=12.1mm

Standard

Standard

10×/0.25      W.D=4.64mm

Standard

Standard

20×/0.40(S)   W.D=2.41mm

Standard

Standard

40×/0.66(S)   W.D=0.65mm

Standard

Standard

60×/0.80 (S)   W.D=0.33mm

Optional

Optional

100×/1.25 (S, Oil)   W.D=0.12mm

Optional

Optional

LWD Infinite Strain Free Plan Achromatic Objective (Reflected)

5×/0.13 (S)      W.D=24.23mm

Standard

Optional

10×/0.25 (S)      W.D=18.48mm

Standard

Optional

20×/0.40 (S)      W.D=8.35mm

Standard

Optional

50×/0.70 (S)     W.D=1.95mm

Standard

Standard

100×/0.90 (S, Dry)     W.D=1.1mm

Optional

Optional

Nosepiece

Backward Quintuple nosepiece, center adjustable

Standard

Standard

Standard

Analyzer Unit

Rotatable 360°, module type, can be locked

Standard

Standard

Standard

Bertrand Lens

Built In, Center Adjustable

Standard

Standard

Standard

Optical Compensator

λ Slip(First Class Red), 1/4λ Slip, Quartz Wedge (Ⅰ- ⅣClass)

Standard

Standard

Standard

Revolving Round Stage

Diameter Φ156mm, Rotatable 360°, Center Adjustable, Division 1°, Vernier Division 6’

Standard

Standard

Standard

Attachable Mechanical Stage

Polarizing Attached Mechanical Stage with X-Y movement

Optional

Optional

Optional

Focusing

Coaxial Coarse & Fine Adjustment, Range 25mm, Fine Stroke 0.2mm, Fine Division 0.002mm

Standard

Standard

Standard

Swing-out Condenser

N.A.0.9/0.13 swing out condenser

Standard

Standard

Polarizing Unit

with Scale, Rotatable 360°, Can Be Locked

Standard

Standard

Transmitted Illumination

5W LED lamp (Input voltage:100V～240V)

Standard

Standard

Koehler Illumination 6V/30W Halogen Lamp (Input voltage: 100V～240V)

Optional

Optional

Reflected Illumination

5W LED lamp (Input voltage:100V～240V)

Standard

Standard

With field diaphragm, aperture diaphragm, polarizer,

12V/50W halogen lamp (Input voltage:100V～240V)

Optional

Optional

Filter

Blue

Standard

Standard

Standard

Amber

Optional

Optional

Optional

Green

Optional

Optional

Optional

Neutral

Optional

Optional

Optional

C-mount

1× (Focus adjustable)

Optional

Optional

Optional

0.75× (Focus adjustable)

Optional

Optional

Optional

0.5× (Focus adjustable)

Optional

Optional

Optional

Packing

Packing size 565mm×310mm×410mm, Gross Weight 12.5kgs, Net Weight 10kgs

Standard

Packing size 750mm×360mm×450mm, Gross Weight 15kgs, Net Weight 11kgs

Standard

Packing size 750mm×360mm×450mm, Gross Weight 16kgs, Net Weight 12kgs

Standard
