Features

Adopt stepper motor and screw driving mode.

Adopt stepper motor and screw driving mode, he screw pitch is consistent and the positioning accuracy is high.

Tilting Trinocular Head.

The eye tube can be adjusted from 0°-35°.
Digital cameras or DSLR cameras can be connected to the trinocular tube.
The beam splitter has 3-position (100:0, 20:80, 0:100).
The splitter bar can be assembled on the either side according to user’s requirements.

Motorized Objective Change.

Objectives could be switched by simply pressing the buttons. Users could also self-define two of the most commonly used objectives and switch between them with the green button.
The illumination has connection with the objective, when the objective is changed, the light intensity will also be changed accordingly.

Nosepiece Rotating Buttons.

This microscope has the function of motorized rotating nosepiece with the 2 buttons.

Motorized Swing-out Condenser.

The top-lens on the condenser will be automatically swing-in or swing-out according to the objective lens that is selected.

Light Intensity Management.

The illumination has connection with the objective, when the objective is changed, the light intensity will also be changed accordingly. Thus, from low to high magnification, the field of view maintains the same brightness. There is no need to manually adjust the intensity of the light and also reduce eye fatigue. The long-life LED light source ensures uniform brightness while is easy to maintain.

6-Position Turret for fluorescent filter blocks

All the fluorescent filter blocks use the high-performance filter lens. Up to 6 filter blocks can be installed in the turret, that allows users to view different stained specimens with a turret.

Can be controlled by the control handle and controller, also can be controlled by software.

This microscope can realize LED brightness, objective lens switching, auto focus, and electric adjustment of XYZ axis through the NMC-3 controller and control handle. The software can realize depth of field fusion, objective lens switching, brightness control, auto focus, area scanning, image stitching, 3D imaging and other functions.

Specifications

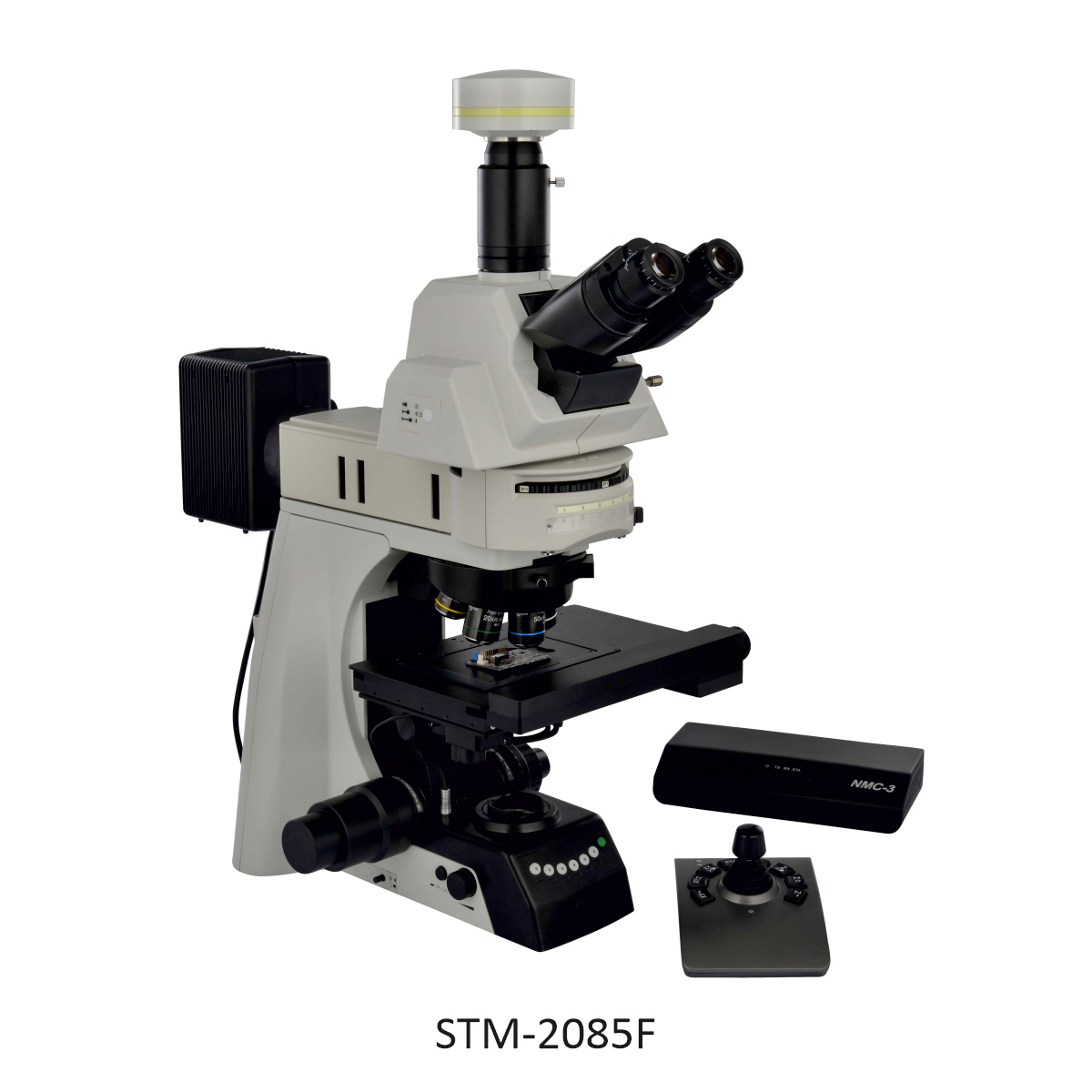

Item	Specification		STM-2085	STM-2085F
Optical System	NIS60 Infinite Color Corrected Optical System		Standard	Standard
Viewing Head	Ergo Tilting Trinocular Head, adjustable 0-35° inclined, interpupillary distance 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100		Standard	Standard
	Seidentopf Trinocular Head, 30° inclined, interpupillary distance: 47mm-78mm; splitting ratio Eyepiece:Trinocular=100:0 or 20:80 or 0:100		Optional	Optional
	Seidentopf Binocular Head, 30° inclined, interpupillary distance: 47mm-78mm		Optional	Optional
Eyepiece	Super wide field plan eyepiece SW10X/25mm, diopter adjustable		Standard	Standard
	Super wide field plan eyepiece SW10X/22mm, diopter adjustable		Optional	Optional
	Extra wide field plan eyepiece EW12.5X/17.5mm, diopter adjustable		Optional	Optional
	Wide field plan eyepiece WF15X/16mm, diopter adjustable		Optional	Optional
	Wide field plan eyepiece WF20X/12mm, diopter adjustable		Optional	Optional
Objective	N-PLN Plan Objective	N-PLN 2X/NA=0.06, WD=7.5mm	Optional	Optional
		N-PLN 4X/NA=0.10, WD=30mm	Standard	Standard
		N-PLN 10X/NA=0.25, WD=10.2mm	Standard	Standard
		N-PLN 20X/NA=0.40, WD=12mm	Standard	Standard
		N-PLN 40X/NA=0.65, WD=0.7mm	Standard	Standard
		N-PLN 100X(Oil)/NA=1.25, WD=0.2mm	Standard	Standard
		N-PLN 50X(Oil)/NA=0.95, WD=0.19mm	Optional	Optional
		N-PLN 60X/NA=0.80, WD=0.3mm	Optional	Optional
		N-PLN-I 100X (Oil, with Iris Diaphragm)/ NA=0.5-1.25, WD=0.2mm	Optional	Optional
	N-PLN PH Plan Phase Contrast Objective	N-PLN PH 10X/NA=0.25, WD=10.2mm	Optional	Optional
		N-PLN PH 20X/NA=0.40, WD=12mm	Optional	Optional
		N-PLN PH 40X/NA=0.65, WD=0.7mm	Optional	Optional
		N-PLN PH 100X(Oil)/NA=1.25, WD=0.2mm	Optional	Optional
	N-PLFN Plan Semi-apochromatic Fluorescent Objective	N-PLFN 4X/NA=0.13, WD=17.2mm	Optional	Optional
		N-PLFN 10X/NA=0.30, WD=16.0mm	Optional	Optional
		N-PLFN 20X/NA=0.50, WD=2.1mm	Optional	Optional
		N-PLFN 40X/NA=0.75, WD=1.5mm	Optional	Optional
		N-PLFN 100X(Oil)/NA=1.4, WD=0.16mm	Optional	Optional
Nosepiece	Motorized Backward Sextuple Nosepiece (with DIC slot)		Standard	Standard
Condenser	Swing-out type condenser N.A.0.9/0.25(Auto)		Standard	Standard
	Turret Phase Contrast Condenser		Optional	Optional
	Dark-field Condenser (Dry), used for objectives lower than 100X		Optional	Optional
	Dark-field Condenser (Oil), used for 100X objective		Optional	Optional
Transmitted Illumination	3W S-LED lamp, center pre-set, intensity adjustable		Standard	Standard
Transmitted Illumination	12V/100W halogen lamp, center pre-set, intensity adjustable		Optional	Optional
Focusing	Motorized auto focusing, fine division 0.1μm, Max. speed 10 r/s, moving range: 30mm		Standard	Standard
Stage	Motorized double layers mechanical stage, size 275 X 239 X 44.5 mm; moving range 125mmX75mm (X-Y); precision: 0.1μm, Max. Speed: 20mm/s		Standard	Standard
DIC Kit	10X DIC Objective Lens		Optional	Optional
	20X DIC Objective Lens		Optional	Optional
	Polarizer for DIC Kit		Optional	Optional
	DIC insert plate(10X/20X), can be inserted into the DIC slot on nosepiece		Optional	Optional
	DIC insert plate(40X/100X) can be inserted into the DIC slot on nosepiece		Optional	Optional
	DIC Turret Condenser		Optional	Optional
Reflected fluorescence illuminator	Turret with 6 filter block cubes position, with iris field diaphragm and aperture diaphragm, central adjustable; with filter slot and polarizing slot; with fluorescence filters (B,G fluorescent filters).		Optional	Standard
	B1, U, V, R fluorescent filters		Optional	Optional
	100W mercury lamp house, filament center and focus adjustable; with reflected mirror, mirror center and focus adjustable.		Optional	Standard
	Digital power controller, wide voltage 100-240VAC		Optional	Standard
	ND6/ND25 Filter		Optional	Optional
Control Handle	3D control handle, 4 gears speed		Standard	Standard
Controller	Communication interface: USB2.0 and RS232		Standard	Standard
Other Accessories	0.5X C-mount Adapter		Optional	Optional
	USB3.0 Digital camera(5.0MP, Sony IMX250, 2/3” CMOS sensor, 35fps@2448x2048)		Optional	Optional
	1X C-mount Adapter		Optional	Optional
	Dust Cover		Standard	Standard
	Power Cord		Standard	Standard
	Cedar Oil 5ml		Standard	Standard
	Simple Polarizing kit		Optional	Optional
	Calibration slide 0.01mm		Optional	Optional
	Multi Viewing Attachment for 2/3/5/7/10 person		Optional	Optional

Application

This motorized automatic microscope is an ideal instrument in biological, histological, pathological, bacteriology, immunizations and pharmacy field and can be widely used in medical and sanitary establishments, laboratories, institutes, academic laboratories, colleges and universities.

Literature

STM-2085 Series Brochure

User Manual

STM-2085 Series User Manual
