STM-1080 Series
Monocular Zoom Microscope

STM-1080 Series Monocular Zoom microscopes adopt apochromatic parallel optical imaging system and provide high resolution and sharp stereoscopic images. This series microscopes are designed for the applications in the fields of machine vision, industrial inspection and scientific research. Modularization product portfolio and excellent optical performance make them a better choice in these areas.


Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature

Features

  • Adopt apochromatic parallel optical imaging system, use advanced multi-layer coating technology, excellently correct the imaging on the edge of field of view. Get high-resolution and high contrast images, naturally restore the true colors of observed objects.
  • Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in modern equipment.
  • Zoom ratio 1:8.3, zoom range 0.6×-5×, standard working distance 88mm, can meet the requirement of machine vision conventional imaging.
  • There are a variety of auxiliary lens and C-mount eyepiece adapter for option, make the system’s optical magnification range 0.054×-1500×, working distance 2mm-270mm, object field of view 0.004mm-20mm.
  • LED Ring light, Polarizing illumination, Coaxial illumination system are optional, Coaxial illumination adopts single high brightness 3W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection and limited exterior lighting occasions.
  • Adopt modular design, various additional accessories are optional to make the microscope a powerful devoice for your jobs.

Specifications

Item

Specification

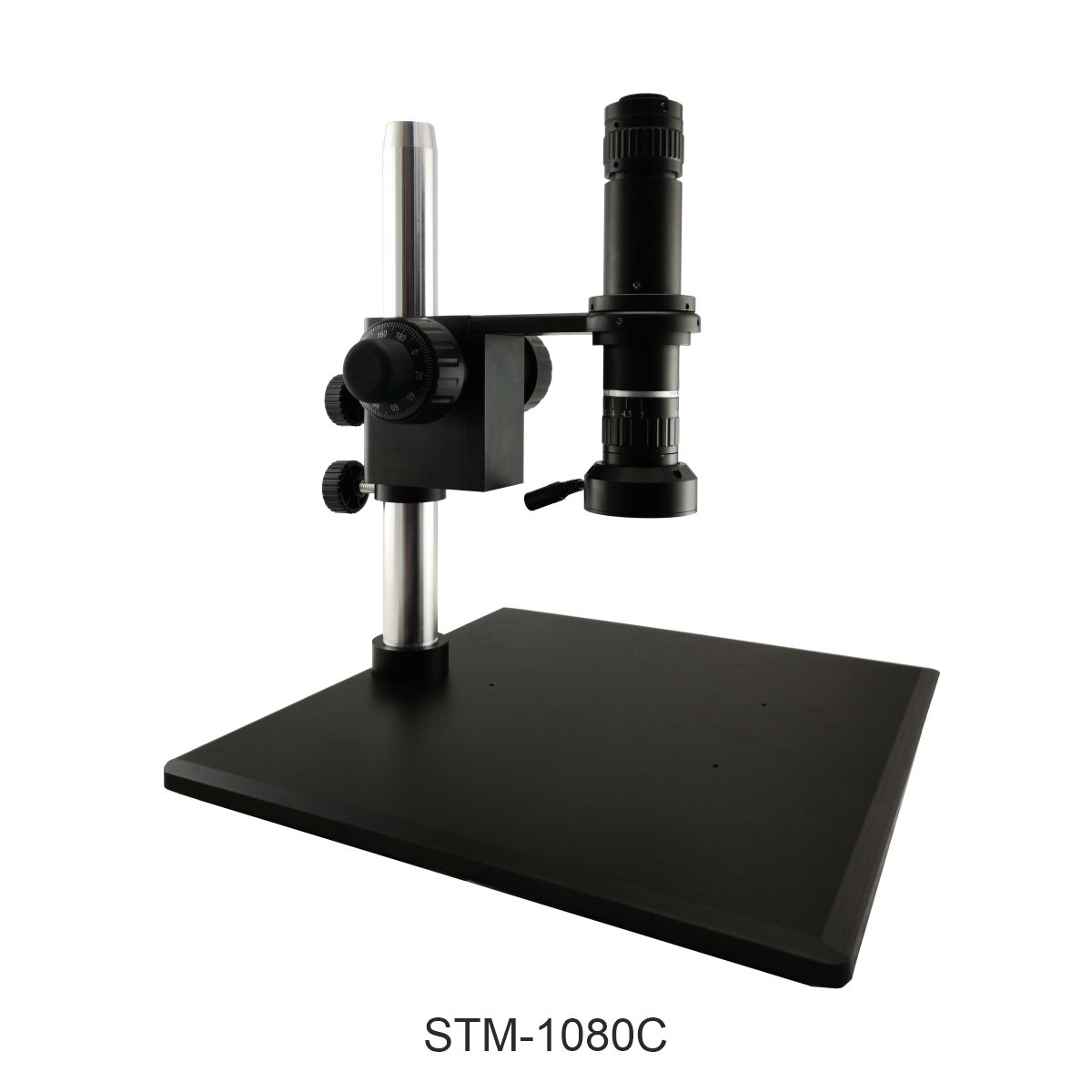

STM-1080A

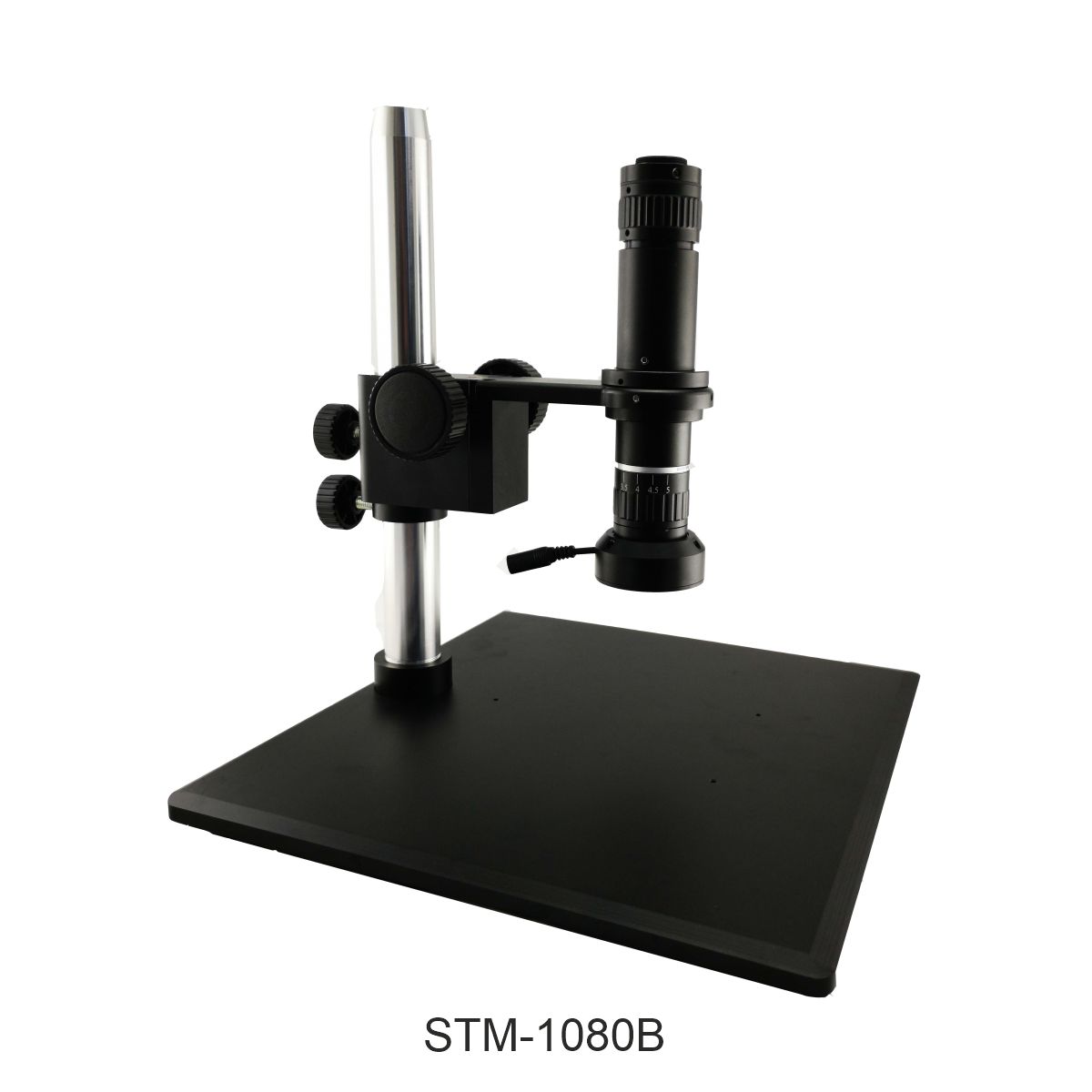

STM-1080B

STM-1080C

Optical System

Infinite apochromatic parallel optical system

Standard

Standard

Standard

Zoom Lens

Optical zoom magnification: 0.6×-5.0×

Standard

Standard

Standard

Zoom ratio

1:8.3

Standard

Standard

Standard

Viewing head

Monocular Viewing head with 10×/18mm, 15×/12mm, 20×/11mm eyepiece, Φ23.2mm

Optional

Optional

Optional

90° Prism

Used to turn the angle of camera or objective, so as to short the size

Optional

Optional

Optional

Mounting Size

Φ40mm

Standard

Standard

Standard

Mounting Adapter

Mounting Adapter (39.6 to 45mm), used to connect the STM-1080A to 45mm focus arm

Optional

Optional

Optional

Mounting Adapter (39.6 to 50mm), used to connect the STM-1080A to 50mm focus arm

Optional

Optional

Optional

LCD Digital Camera

SLC-520 digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080

Optional

Optional

Optional

SLC-520AF Auto focus digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080

Optional

Optional

Optional

SLC-550 digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.

Optional

Optional

Optional

SLC-550AF Auto focus digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.

Optional

Optional

Optional

C-mount Adapter

0.3× C-mount adapter

Optional

Optional

Optional

0.4× C-mount adapter

Optional

Optional

Optional

0.5× C-mount adapter

Standard

Standard

Standard

0.67× C-mount adapter

Optional

Optional

Optional

1× C-mount adapter

Optional

Optional

Optional

1.5× C-mount adapter

Optional

Optional

Optional

2× C-mount adapter

Optional

Optional

Optional

3× C-mount adapter

Optional

Optional

Optional

Auxiliary Lens

0.3× /WD: 270mm

Optional

Optional

Optional

0.5× / WD: 160mm

Optional

Optional

Optional

0.6× / WD: 130mm

Optional

Optional

Optional

1× / WD: 88mm

Standard

Standard

Standard

1.5× / WD: 52mm

Optional

Optional

Optional

2× / WD: 39mm

Optional

Optional

Optional

Infinite LWD Plan Achromatic Metallurgical Objective Lens

5×, NA: 0.12, WD: 26.1mm

Optional

Optional

Optional

10×, NA: 0.25, WD: 20.2mm

Optional

Optional

Optional

20×, NA: 0.40, WD: 8.8mm

Optional

Optional

Optional

40×, NA: 0.6, WD: 3.98mm

Optional

Optional

Optional

50×, NA: 0.70, WD: 3.68mm

Optional

Optional

Optional

60×, NA: 0.75, WD: 1.22mm

Optional

Optional

Optional

80×, NA: 0.80, WD: 1.25mm

Optional

Optional

Optional

100×, NA: 0.85, WD: 0.4mm

Optional

Optional

Optional

Infinite LWD Plan Apochromatic Metallurgical Objective

5×, NA: 0.13, WD: 44.5mm

Optional

Optional

Optional

10×, NA: 0.28, WD: 34mm

Optional

Optional

Optional

20×, NA: 0.29, WD: 31mm

Optional

Optional

Optional

50×, NA: 0.42, WD: 20.1mm

Optional

Optional

Optional

Coaxial light Device

Coaxial Device, light input port Φ11mm (does not include light source)

Optional

Optional

Optional

Coaxial point light source: 3W LED, 5500K, brightness adjustable

Optional

Optional

Optional

Polarized Coaxial Device, light input port Φ11mm (does not include light source)

Optional

Optional

Optional

Ring Light

SAL-48A LED Ring light, brightness adjustable

Optional

Standard

Standard

Polarized LED Ring light, brightness adjustable

Optional

Optional

Optional

Other Accessories

Metallurgical objective adapter (used to connect metallurgical objectives onto the zoom body)

Optional

Optional

Optional

Triple Nosepiece for metallurgical objectives

Optional

Optional

Optional

Quadruple Nosepiece for metallurgical objectives

Optional

Optional

Optional

SSL-3B LED light source with dual goose neck light guide, 6.5W

Optional

Optional

Optional

SMS-302 X-Y moving stage

Optional

Optional

Optional

SSL2-150A-1 Cold light source with Single Light Guide, 150W

Optional

Optional

Optional

SSL2-150A-2 Cold light source with Dual Light Guide, 150W

Optional

Optional

Optional

SSL2-150A-O Cold light source with Annular Ring Light Guide, 150W

Optional

Optional

Optional

Stand and focus arm

SA1 Pillar type column plain stand with coarse focus arm

Optional

Standard

Optional

SA2 Pillar type column plain stand with coarse and fine focus arm

Optional

Optional

Standard

SA3 Square type column plain stand with coarse and fine focus arm

Optional

Optional

Optional

SA4 Square type column plain stand with coarse and fine focus arm, transmitted 10W LED illumination

Optional

Optional

Optional

SA5 multi-angle column plain stand with coarse focus arm

Optional

Optional

Optional



Literature

STM-1080 Series Brochure

Features

  • Adopt apochromatic parallel optical imaging system, use advanced multi-layer coating technology, excellently correct the imaging on the edge of field of view. Get high-resolution and high contrast images, naturally restore the true colors of observed objects.
  • Compact design, so that all functions are concentrated in a tube, it is very suitable for the small installation space in modern equipment.
  • Zoom ratio 1:8.3, zoom range 0.6×-5×, standard working distance 88mm, can meet the requirement of machine vision conventional imaging.
  • There are a variety of auxiliary lens and C-mount eyepiece adapter for option, make the system’s optical magnification range 0.054×-1500×, working distance 2mm-270mm, object field of view 0.004mm-20mm.
  • LED Ring light, Polarizing illumination, Coaxial illumination system are optional, Coaxial illumination adopts single high brightness 3W LED, color temperature 5500K, uniform lighting, suitable for high reflectivity surface precision detection and limited exterior lighting occasions.
  • Adopt modular design, various additional accessories are optional to make the microscope a powerful devoice for your jobs.

Specifications

Item

Specification

STM-1080A

STM-1080B

STM-1080C

Optical System

Infinite apochromatic parallel optical system

Standard

Standard

Standard

Zoom Lens

Optical zoom magnification: 0.6×-5.0×

Standard

Standard

Standard

Zoom ratio

1:8.3

Standard

Standard

Standard

Viewing head

Monocular Viewing head with 10×/18mm, 15×/12mm, 20×/11mm eyepiece, Φ23.2mm

Optional

Optional

Optional

90° Prism

Used to turn the angle of camera or objective, so as to short the size

Optional

Optional

Optional

Mounting Size

Φ40mm

Standard

Standard

Standard

Mounting Adapter

Mounting Adapter (39.6 to 45mm), used to connect the STM-1080A to 45mm focus arm

Optional

Optional

Optional

Mounting Adapter (39.6 to 50mm), used to connect the STM-1080A to 50mm focus arm

Optional

Optional

Optional

LCD Digital Camera

SLC-520 digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080

Optional

Optional

Optional

SLC-520AF Auto focus digital camera with HDMI and WIFI output, can capture 2.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080

Optional

Optional

Optional

SLC-550 digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.

Optional

Optional

Optional

SLC-550AF Auto focus digital camera with HDMI and WIFI output, can capture 5.0MP pictures, videos and do measurement, control with mouse; 11.6 inch LCD screen, resolution 1920*1080.

Optional

Optional

Optional

C-mount Adapter

0.3× C-mount adapter

Optional

Optional

Optional

0.4× C-mount adapter

Optional

Optional

Optional

0.5× C-mount adapter

Standard

Standard

Standard

0.67× C-mount adapter

Optional

Optional

Optional

1× C-mount adapter

Optional

Optional

Optional

1.5× C-mount adapter

Optional

Optional

Optional

2× C-mount adapter

Optional

Optional

Optional

3× C-mount adapter

Optional

Optional

Optional

Auxiliary Lens

0.3× /WD: 270mm

Optional

Optional

Optional

0.5× / WD: 160mm

Optional

Optional

Optional

0.6× / WD: 130mm

Optional

Optional

Optional

1× / WD: 88mm

Standard

Standard

Standard

1.5× / WD: 52mm

Optional

Optional

Optional

2× / WD: 39mm

Optional

Optional

Optional

Infinite LWD Plan Achromatic Metallurgical Objective Lens

5×, NA: 0.12, WD: 26.1mm

Optional

Optional

Optional

10×, NA: 0.25, WD: 20.2mm

Optional

Optional

Optional

20×, NA: 0.40, WD: 8.8mm

Optional

Optional

Optional

40×, NA: 0.6, WD: 3.98mm

Optional

Optional

Optional

50×, NA: 0.70, WD: 3.68mm

Optional

Optional

Optional

60×, NA: 0.75, WD: 1.22mm

Optional

Optional

Optional

80×, NA: 0.80, WD: 1.25mm

Optional

Optional

Optional

100×, NA: 0.85, WD: 0.4mm

Optional

Optional

Optional

Infinite LWD Plan Apochromatic Metallurgical Objective

5×, NA: 0.13, WD: 44.5mm

Optional

Optional

Optional

10×, NA: 0.28, WD: 34mm

Optional

Optional

Optional

20×, NA: 0.29, WD: 31mm

Optional

Optional

Optional

50×, NA: 0.42, WD: 20.1mm

Optional

Optional

Optional

Coaxial light Device

Coaxial Device, light input port Φ11mm (does not include light source)

Optional

Optional

Optional

Coaxial point light source: 3W LED, 5500K, brightness adjustable

Optional

Optional

Optional

Polarized Coaxial Device, light input port Φ11mm (does not include light source)

Optional

Optional

Optional

Ring Light

SAL-48A LED Ring light, brightness adjustable

Optional

Standard

Standard

Polarized LED Ring light, brightness adjustable

Optional

Optional

Optional

Other Accessories

Metallurgical objective adapter (used to connect metallurgical objectives onto the zoom body)

Optional

Optional

Optional

Triple Nosepiece for metallurgical objectives

Optional

Optional

Optional

Quadruple Nosepiece for metallurgical objectives

Optional

Optional

Optional

SSL-3B LED light source with dual goose neck light guide, 6.5W

Optional

Optional

Optional

SMS-302 X-Y moving stage

Optional

Optional

Optional

SSL2-150A-1 Cold light source with Single Light Guide, 150W

Optional

Optional

Optional

SSL2-150A-2 Cold light source with Dual Light Guide, 150W

Optional

Optional

Optional

SSL2-150A-O Cold light source with Annular Ring Light Guide, 150W

Optional

Optional

Optional

Stand and focus arm

SA1 Pillar type column plain stand with coarse focus arm

Optional

Standard

Optional

SA2 Pillar type column plain stand with coarse and fine focus arm

Optional

Optional

Standard

SA3 Square type column plain stand with coarse and fine focus arm

Optional

Optional

Optional

SA4 Square type column plain stand with coarse and fine focus arm, transmitted 10W LED illumination

Optional

Optional

Optional

SA5 multi-angle column plain stand with coarse focus arm

Optional

Optional

Optional
