Item

Specification

STM-6000A

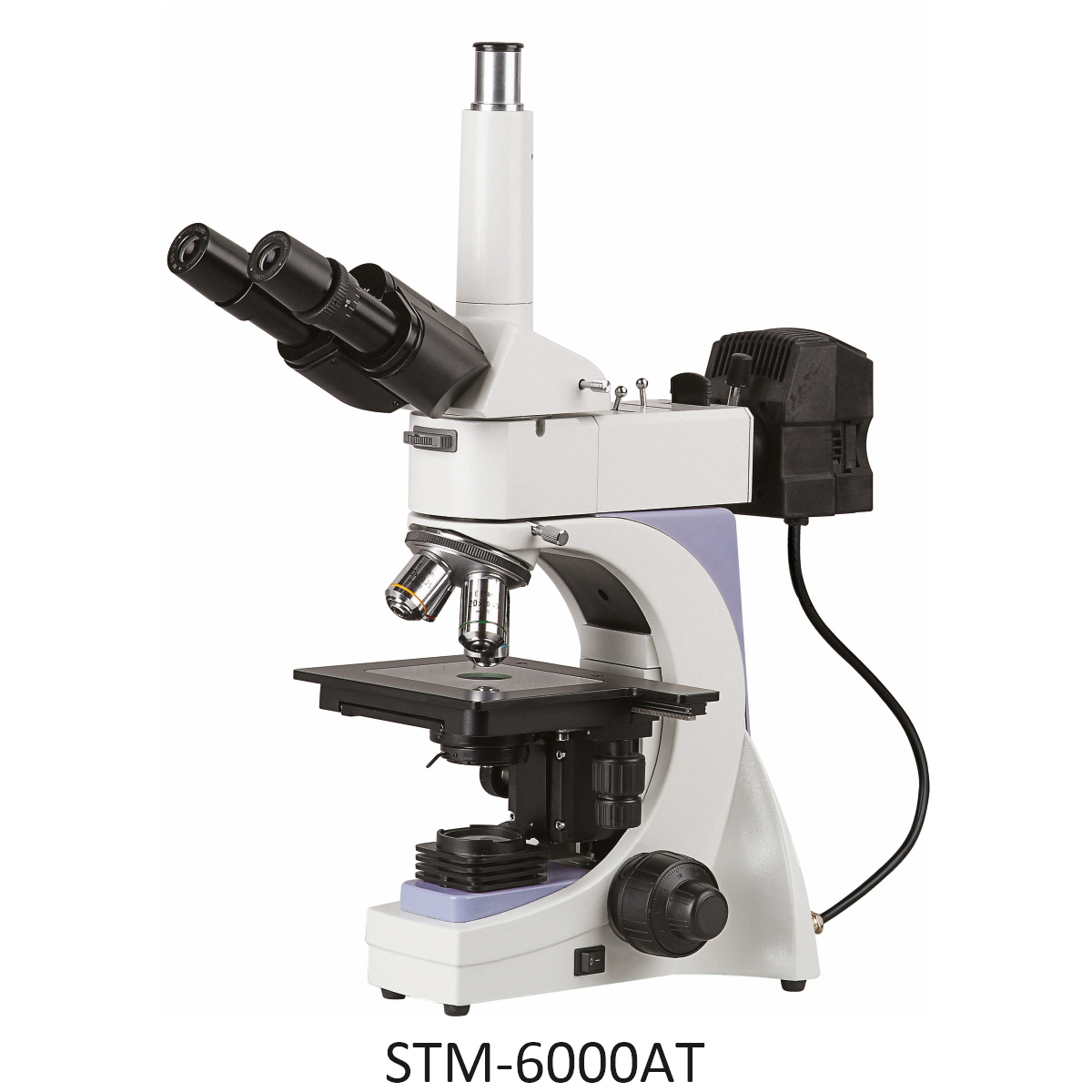

STM-6000AT

Viewing Head

Seidentopf type binocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm

Standard

Seidentopf type trinocular head, inclined at 30°, 360° rotatable, interpupillary distance 48-75mm, Light distribution: 20:80

Standard

Eyepiece

WF10×/18mm

Standard

Standard

WF8×/18mm

Optional

Optional

WF10×/18mm with 0.1mm Micrometer & cross hair

Optional

Optional

WF12.5×/15mm

Optional

Optional

Infinite Plan Achromatic Objectives

4×/0.1/∞/-    WD 17.3mm

Standard

Standard

5×/0.12/∞/-   WD 15.5mm

Optional

Optional

10×/0.25/∞/-  WD 10.0mm

Standard

Standard

20×/0.40/∞/0  WD 5.8mm

Optional

Optional

40×/0.60/∞/0  WD 2.9mm

Standard

Standard

40×/0.65/∞/0  WD 0.52mm

Optional

Optional

50×/0.75/∞/0  WD 0.32mm

Optional

Optional

80×/0.90/∞/0  WD 0.2mm

Optional

Optional

100×/0.80/∞/0  WD 2mm

Optional

Optional

Nosepiece

Quadruple Nosepiece

Standard

Standard

Stage

Double layer mechanical stage 150×140mm, moving range 75×50mm

Standard

Standard

Focusing

Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Range 20mm

Standard

Standard

Illumination

Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W Halogen lamp, Brightness adjustable

Standard

Standard

Kohler Illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 3W LED illumination, Brightness adjustable

Optional

Optional

Transmitted Illumination, 6V/20W Halogen Lamp, Brightness Adjustable

Optional

Optional

Filters

Blue, Green, Yellow & Ground filters

Standard

Standard

Polarizing Set

Polarizer and Analyzer

Optional

Optional

Specimen Presser

For metallurgical specimen preparation

Optional

Optional

Photo Adapter

Used to connect DSLR camera to the microscope

Optional

Optional

Video Adapter

1×, 0.5× C-mount adapter

Optional

Optional
