Item

Specification

STM-

2035DA1

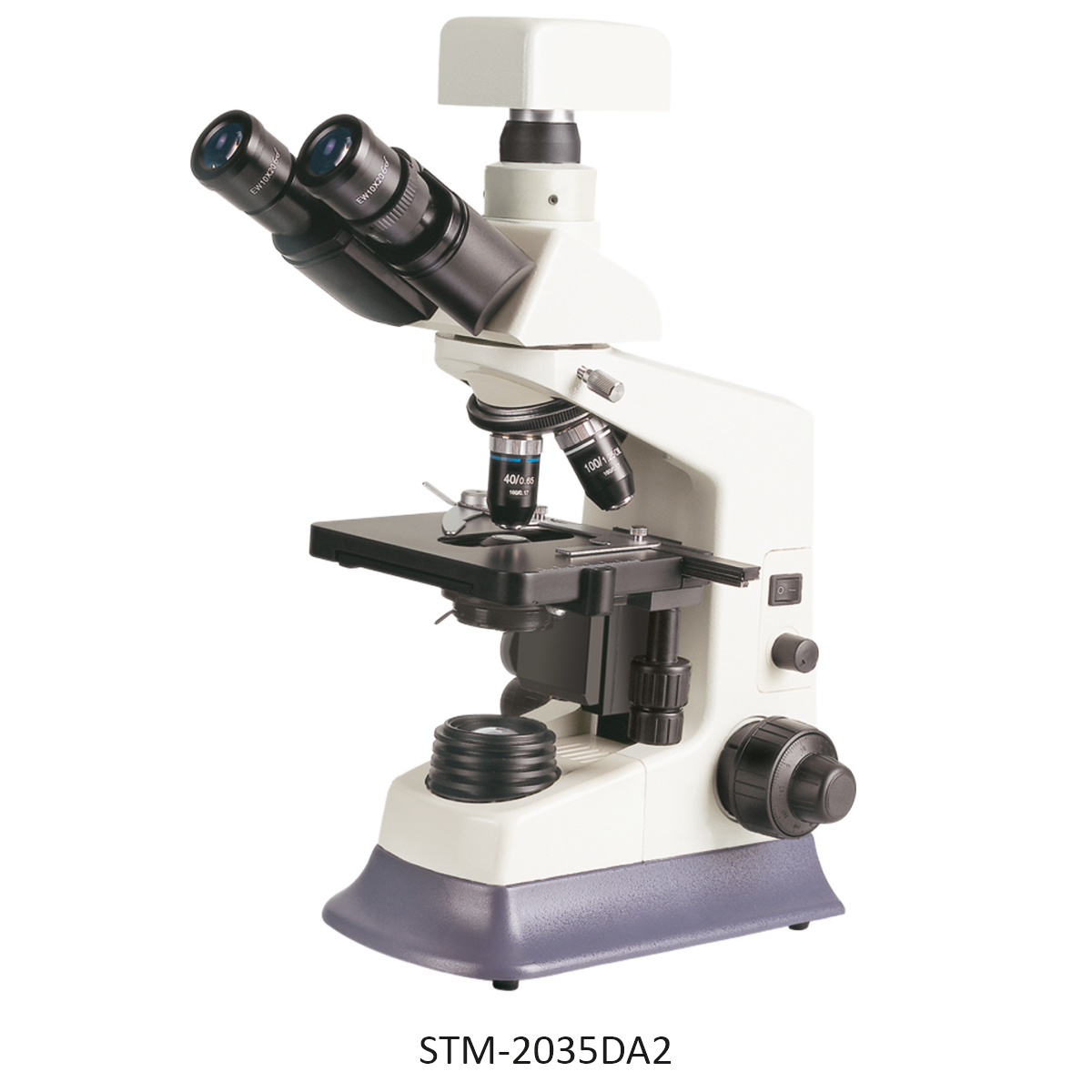

STM-

2035DA2

Digital System

1.3MP CMOS digital camera with high-resolution, 1280×1024, USB2.0 output

Standard

Standard

2.0MP CMOS digital camera with high-resolution, 1600×1200, USB2.0 output

Optional

Optional

3.0MP CMOS digital camera with high-resolution, 2048×1536, USB2.0 output

Optional

Optional

5.0MP CMOS digital camera with high-resolution, 2592×1944, USB2.0 output

Optional

Optional

Viewing Head

Seidentopf type Binocular Head at 30°, Interpupilary Distance 55-75mm

Standard

Seidentopf type Binocular Head at 30°, Interpupilary Distance 48-75mm

Standard

Eyepiece

Extra Wide Field EW10×/20mm

Standard

Standard

Nosepiece

Backward Quadruple Nosepiece

Standard

Standard

Backward Quintuple Nosepiece

Optional

Optional

Objective

Semi-plan Achromatic Objective 4×, 10×, 40×, 100×

Standard

Standard

Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Optional

Optional

Infinite Plan Achromatic Objective 4×, 10×, 20×, 40×, 60×, 100×

Optional

Optional

Condenser

NA1.25 Abbe Condenser with iris diaphragm and filter, rack & pinion adjustment

Standard

Standard

Stage

Double Layers Mechanical Stage 140×140mm/ 75×50mm

Standard

Standard

Illumination

1W S-LED Illumination, Brightness Adjustable

Standard

Standard

6V/20W Halogen Lamp, Brightness Adjustable

Optional

Optional

Kohler Illumination

Optional

Optional

Filter

Blue and Green Filter

Standard

Standard

Phase Contrast Kit

Turret Phase Contrast Kit

Optional

Optional

Polarization Set

Simple Polarization Attachment

Optional

Optional

Dark-field Attachment

Dark-field Condenser(Dry)

Optional

Optional

Dark-field Condenser(Oil)

Optional

Optional

Pointer

LED Pointer

Optional

Optional

Software

ScopeImage 9.0

Standard

Standard
