Item |
Specification |
STM-2010MD |
STM-2010BD |
|
Viewing Head |
Monocular head, Inclined at 45º, 360º Rotatable |
Standard |
|
|
Binocular head, Inclined at 45º, 360º Rotatable, 55-75mm |
|
Standard |
|
|
Camera System |
Resolution: 1280×1024(1.3MP) |
Standard |
Standard |
|
Output: USB2.0 |
Standard |
Standard |
|
|
Operation System: Windows 2000/XP/VISTA/Win 7/8/10 |
Standard |
Standard |
|
|
Software: ScopeImage 9.0 |
Standard |
Standard |
|
|
Eyepiece |
Wide Field Eyepiece: WF10×/18mm |
Standard |
Standard |
|
WF5×/20mm, WF16×/11mm, WF25×/8mm |
Optional |
Optional |
|
|
Objective |
Achromatic Objective: 4×, 10×, 40×(S), 100×(S, Oil) |
Standard |
Standard |
|
Achromatic Objective: 20×, 60× |
Optional |
Optional |
|
|
Stage |
Double Layers Mechanical Stage: 110×120mm, Moving Range X-Y: 70×20mm |
Standard |
Standard |
|
Condenser |
Abbe NA 1.25 Condenser with Iris Diaphragm (Φ2-Φ28mm) |
Standard |
Standard |
|
Focusing |
Coaxial Coarse and Fine Adjustment, Moving Range 10mm |
Standard |
Standard |
|
Illumination |
1W LED illumination, brightness adjustable |
Standard |
Standard |
|
Accessories |
Operation manual, dust cover, AC adapter and USB cable |
Standard |
Standard |
|
Package |
1pc/carton, 28cm×22cm×40cm, 5kg |
Standard |
Standard |

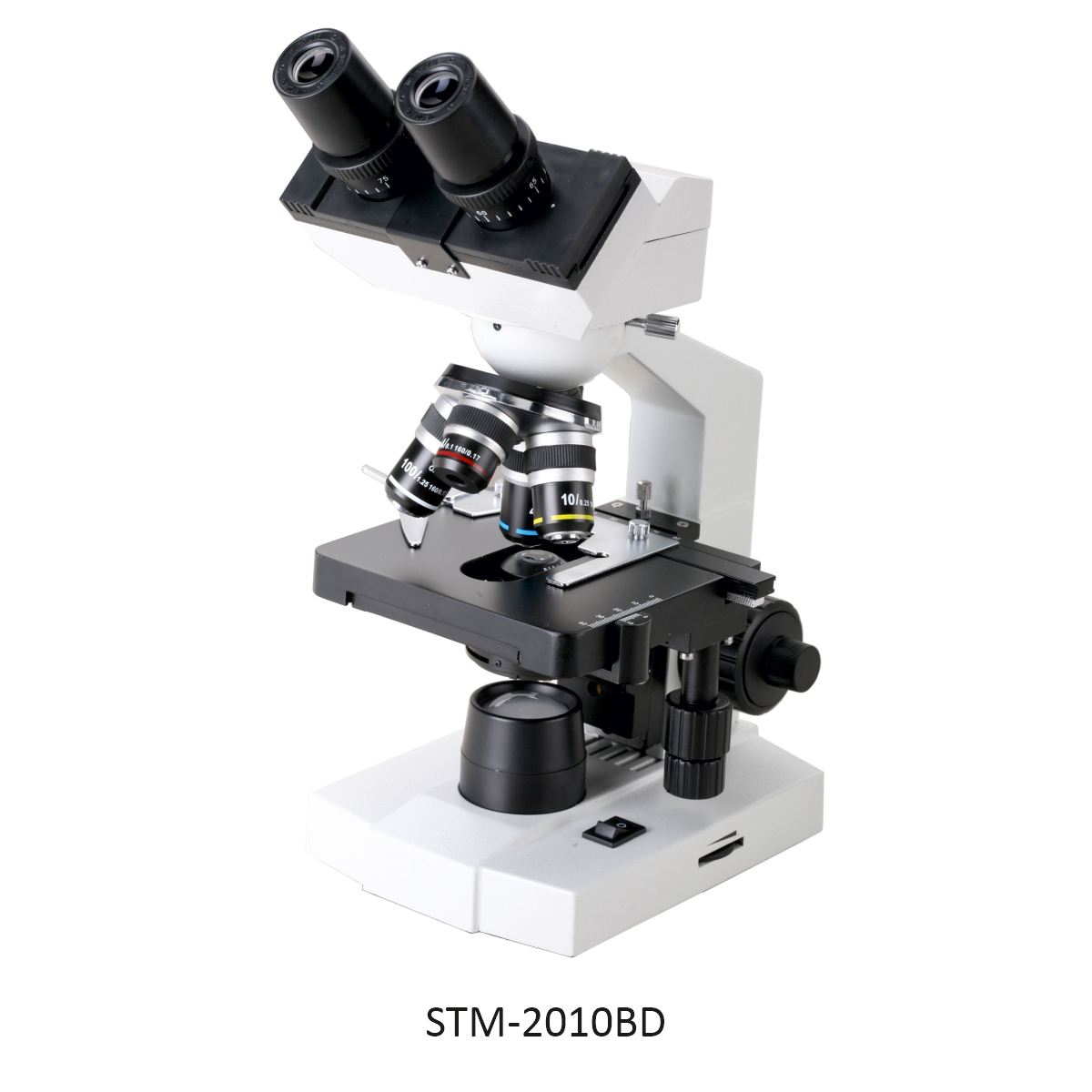

STM-2010MD/BD digital microscopes are primarily designed for school students to do image analysis and distant sharing. The microscopes also provide a superior cost effective solution for computer interactive laboratory, clinical environments and individuals as hobby etc.
|
