Item

Specification

STM-2063B

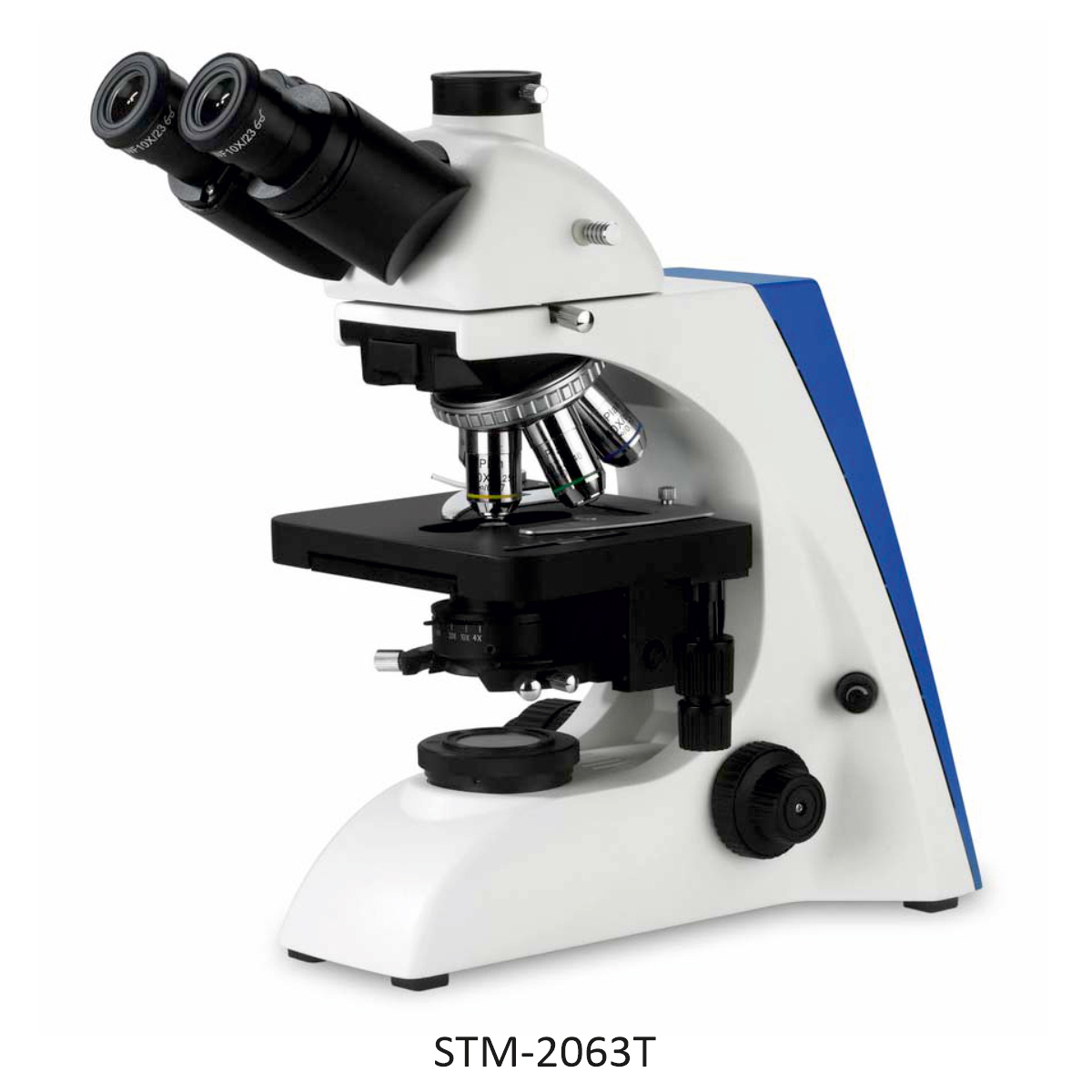

STM-2063T

Optical System

Color Corrected Infinite Optical System

Standard

Standard

Viewing Head

Seidentopf Binocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm

Standard

Seidentopf Trinocular Head, Inclined 30°, Rotatable 360°, Interpupilary Distance: 48-76mm, Light distribution (both): 100: 0 (100% for eyepiece)

80:20(80% for trinocular head and 20% for eyepiece)

Standard

Eyepiece

WF10×/22mm (Diopter adjustable), tube diameter: 30mm

Standard

Standard

WF15×/16mm (Diopter adjustable)

Optional

Optional

WF10×/22mm with 0.1mm eyepiece micrometer

Optional

Optional

Infinite Plan Achromatic Objective

4×/0.10,            W.D.=12.10mm

Standard

Standard

10×/0.25,           W.D.=4.64mm

Standard

Standard

20×/0.40(S),         W.D.=2.41mm

Standard

Standard

40×/0.65 (S),        W.D.=0.65mm

Standard

Standard

100×/1.25(S, Oil),    W.D.=0.12mm

Standard

Standard

2.5×/0.07           W.D.=8.47mm

Optional

Optional

60×/0.80(S)         W.D.=0.33mm

Optional

Optional

100×/1.15(S, Water)  W.D.=0.19mm

Optional

Optional

Nosepiece

Backward Quintuple Nosepiece

Standard

Standard

Stage

Rackless Double Layers Mechanical stage, Size: 182mm×140mm, Travel Range: 77mm×52mm, Scale: 0.1mm, Two Slide Holder

Standard

Standard

Condenser

Swing out condenser N.A.0.9/0.13, with iris diaphragm

Standard

Standard

Focusing

Coaxial Coarse and Fine Focusing Knob, Coarse Focusing Travel Range: 25mm, Coarse Stroke 42.4mm/rotation, Fine Stroke 0.2mm/Rotation, Fine division: 2µm

Standard

Standard

Koehler Illumination

6V/30W Halogen Lamp with Field Diaphragm, Brightness Adjustable

Standard

Standard

3W LED Illumination with Field Diaphragm, Brightness Adjustable

Optional

Optional

Dark Field Unit

Dark field condenser (Dry), apply to 4×- 40× objective

Optional

Optional

Dark Field Condenser (Oil), apply to 100× objective

Optional

Optional

Polarizing Unit

Analyzer and Polarizer

Optional

Optional

Phase Contrast Unit

Quintuple hole turret unit with 10×/20×/40×/100× phase contrast objective

Optional

Optional

Independent slot with 10×/20×/40×/100× phase contrast objective

Optional

Optional

Fluorescent Attachment

100W Mercury Epi-Fluorescence unit (Six-hole disc, Uv/V/B/G and another filters)

Optional

Optional

3W LED Epi-Fluorescence unit (Six-hole disc, Uv/V/B/G and another filters)

Optional

Optional

Video Adapter

1× C-mount (Used for DSLR cameras or large format microscope camera)

Optional

0.5× C-mount (focus adjustable, used for microscope camera)

Standard

Photo Adapter

Used for CANON／NIKON／OLYMPUS/ SONY DLSR cameras

Optional

Filter

Blue

Standard

Standard

Green/ Amber/Grey

Optional

Optional

Power Supply

Wide voltage input: 100V～240V

Standard

Standard

Packing

1 carton/set, Packing Size: 565mm × 310mm × 410mm, Gross Weight: 12 kgs, Net Weight: 10 kgs

Standard

Standard
