Item |
Specification |
STM-2042B |
STM-2042T |
|
Optical System |
Infinite Color Corrected Optical System |
Standard |
Standard |
|
Viewing Head |
Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm |
Standard |
|
|
Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, Light splitting ratio: Eyepiece:Trinocular=8:2 |
|
Standard |
|
|
Eyepiece |
Plan 10×/18mm with adjustable diopter |
Standard |
Standard |
|
Plan 10×/20mm with adjustable diopter |
Optional |
Optional |
|
|
Objective |
Infinite plan Achromatic Objectives 4×, 10×, 40×, 100× |
Standard |
Standard |
|
Nosepiece |
Reversed Quadruple Nosepiece |
Standard |
Standard |
|
Reversed Quintuple Nosepiece |
Optional |
Optional |
|
|
Stage |
Double Layers Mechanical Stage 140mm×132mm, moving range 76mm×50mm |
Standard |
Standard |
|
Condenser |
NA1.25 Condenser (with slot for phase contrast and darkfield accessories) |
Standard |
Standard |
|
Focusing |
Coaxial focusing system with tension adjustable, coarse:25mm per rotation, with upper limit and tightness adjustment, Fine Division 0.002mm |
Standard |
Standard |
|
Illumination |
100V-240V, single high brightness 3W LED Koehler illumination, intensity adjustable |
Standard |
Standard |
|
100V-240V, Philips 6V/20W halogen Koehler illumination, intensity adjustable |
Optional |
Optional |
|
|
Optional accessories |
Phase Contrast Kit |
Optional |
Optional |
|
Dark Field Attachment |
Optional |
Optional |
|
|
Polarizing attachment |
Optional |
Optional |
|
|
Video & photo accessories (1/3×, 1/2×, 1× C-mount) |
|
Optional |
|
|
Various filters (Blue, Green, Yellow and frosted) |
Optional |
Optional |

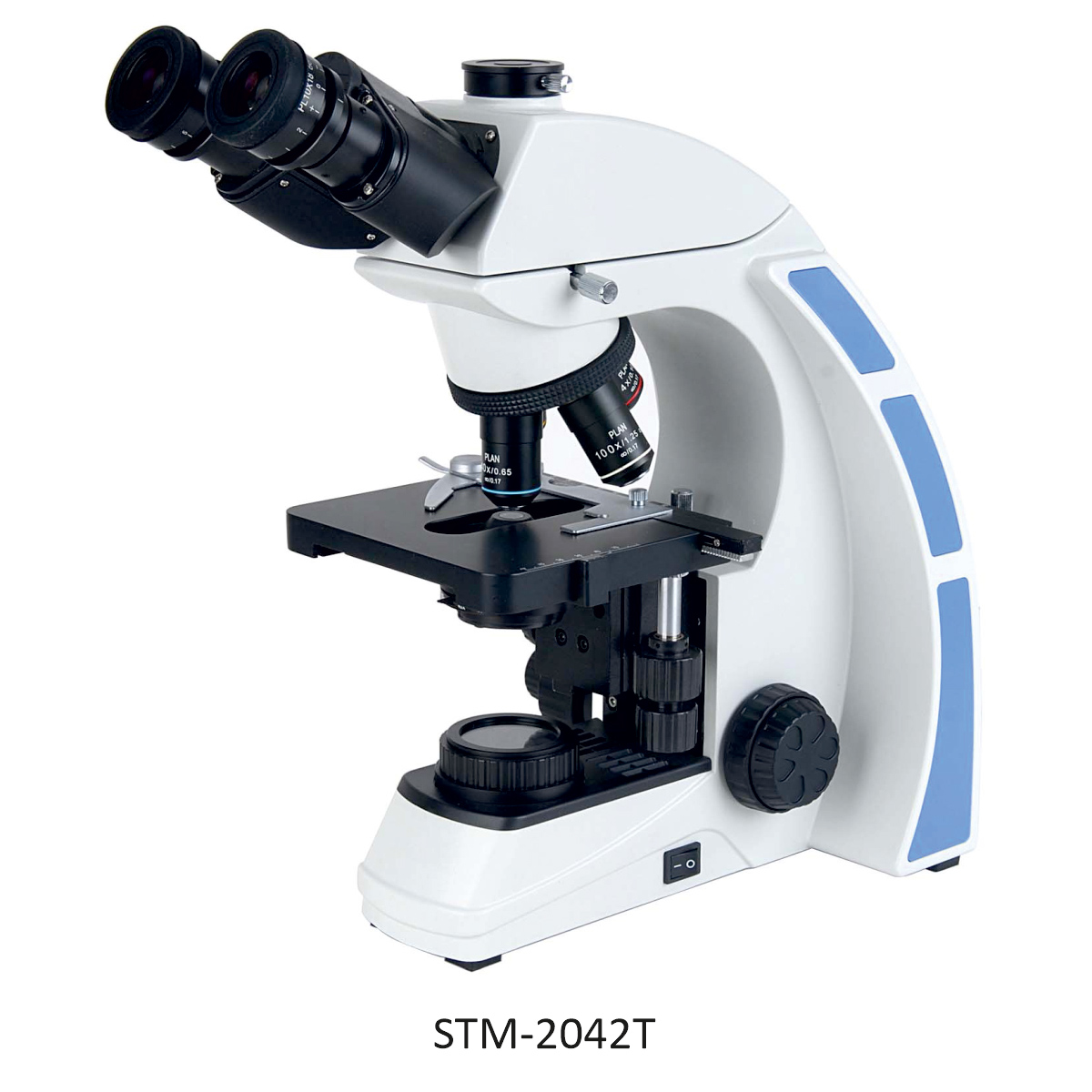

STM-2042 series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers
|
