Item |
Specification |
STM-2041B |

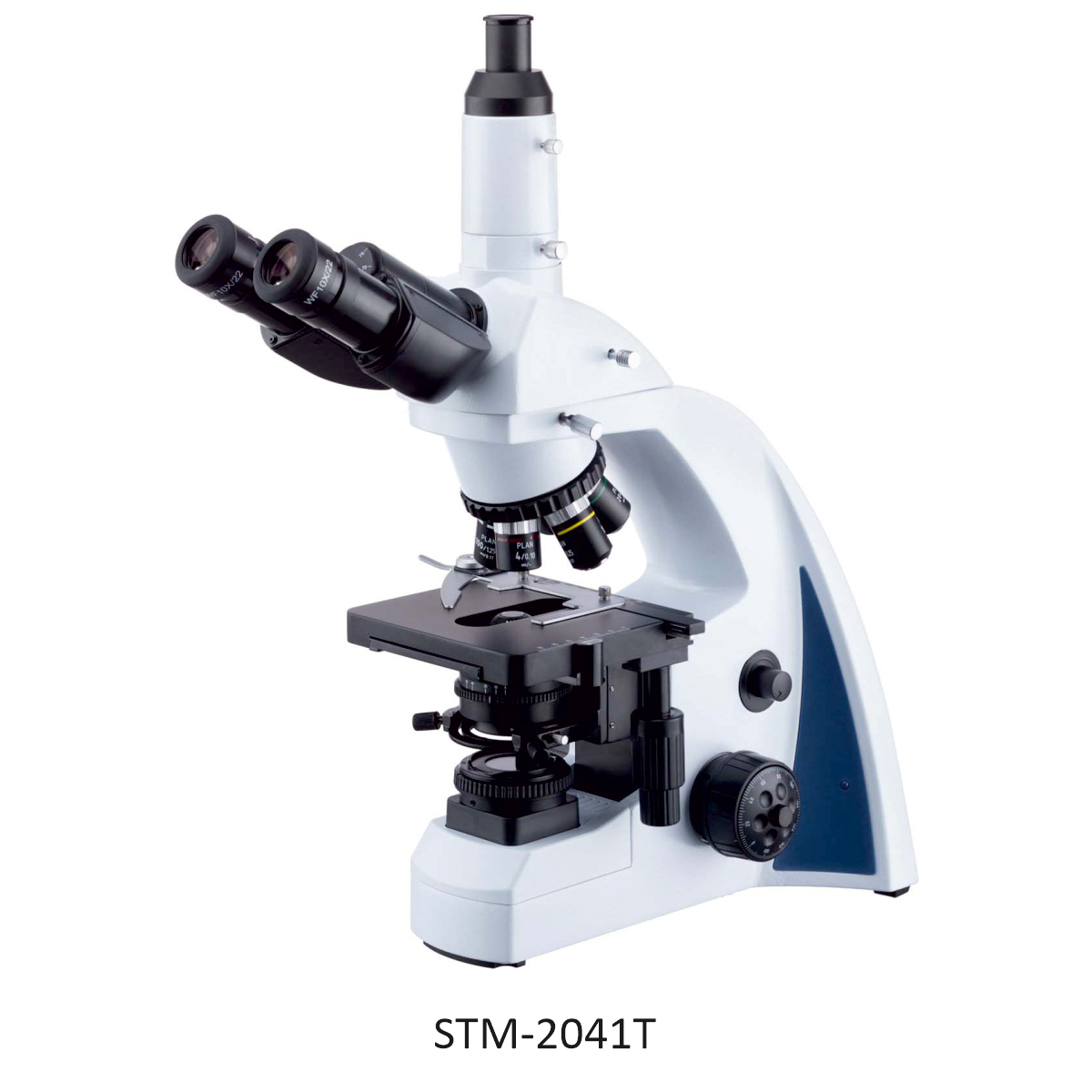

STM-2041T |
|
Optical System |
Infinite Optical System |
Standard |
Standard |
|
Viewing Head |
Seidentopf binocular head, 30° inclined, Interpupillary 48-75mm, eyepiece tube: Φ30mm |
Standard |
|
|
Seidentopf trinocular head, 30° inclined, Interpupillary 48-75mm, eyepiece tube: Φ30mm, Light distribution: 100: 0 and 50:50(eyepiece: trinocular tube) |
|
Standard |
|
|
Eyepiece |
Wide Field Eyepiece WF 10×/22mm with Diopter Adjustment |
Standard |
Standard |
|
WF15×/16mm Eyepiece |
Optional |
Optional |
|
|
WF20×/12mm Eyepiece |
Optional |
Optional |
|
|
Eyepiece micrometer 0.1mm |
Optional |
Optional |
|
|
Objective |
Infinite Plan Achromatic Objectives 4×, 10×, 40×(S), 100×(S, Oil) |
Standard |
Standard |
|
Infinite Plan Achromatic Objectives 2×, 20×, 60×(S) |
Optional |
Optional |
|
|
Infinite Semi-Plan Achromatic Objectives 4×, 10×, 40×(S), 100×(S, Oil) |
Optional |
Optional |
|
|
Infinite Plan Fluorescent Achromatic Objectives 4×, 10×, 20×, 40×(S), 100×(S, Oil) |
Optional |
Optional |
|
|
Nosepiece |
Backward Quadruple Nosepiece |
Standard |
Standard |
|
Backward Quintuple Nosepiece |
Optional |
Optional |
|
|
Stage |
Double Layers Mechanical Stage 140mm×140mm/ 75mm×50mm |
Standard |
Standard |
|
Rackless Double Layers Mechanical Stage 150mm×139mm, Moving Range 75mm×52mm |
Optional |
Optional |
|
|
Condenser |
Sliding-in Centerable Condenser NA1.25 |
Standard |
Standard |
|
Swing-out Condenser NA 0.9/ 0.25 |
Optional |
Optional |
|
|
Dark Field Condenser NA 0.7-0.9 (Dry, used for objectives except 100×) |
Optional |
Optional |
|
|
Dark Field Condenser NA 1.25-1.36 (Oil, used for 100× objectives) |
Optional |
Optional |
|
|
Focusing |
Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 20mm |
Standard |
Standard |
|
Illumination |
3W LED Lamp, Brightness Adjustable |
Standard |
Standard |
|
6V/20W Halogen Lamp, Brightness Adjustable |
Optional |
Optional |
|
|
Kohler Illumination |
Optional |
Optional |
|
|
Optional accessories |
Simple Polarizing Set (Polarizer and Analyzer) |
Optional |
Optional |
|
Phase Contrast Kit BPHE-1 (Infinite 10×, 20×, 40×, 100× phase contrast objective) |
Optional |
Optional |
|
|
YX-2 Epi-fluorescent Attachment (Mercury lamp) |
Optional |
Optional |
|
|
FL-LED Epi-fluorescent Attachment (LED lamp, B, G, UV, V, R fluorescent filters are available) |
Optional |
Optional |
|
|
Video Adapter |
1× C-mount (Used for large format microscope camera) |
|
Optional |
|
0.5× C-mount (Used for microscope camera) |
|
Standard |
|
|
Photo Adapter |
BDPL-1(Nikon), Used for Nikon DLSR cameras |
|
Optional |
|
BDPL-2(Canon), Used for Canon DLSR cameras |
|
Optional |
|
|
Packing |
1pc/carton, 35cm*35.5cm*55.5cm, gross weight: 12kg |
Standard |
Standard |
STM-2041 series microscopes are ideal instruments in biological, pathological, histological, bacterial, immune, pharmacological and genetic fields. They can be widely used in medical and sanitary establishments, such as hospitals, clinics, laboratories, medical academies, colleges, universities and related research centers.
|
