Item |
Specification |

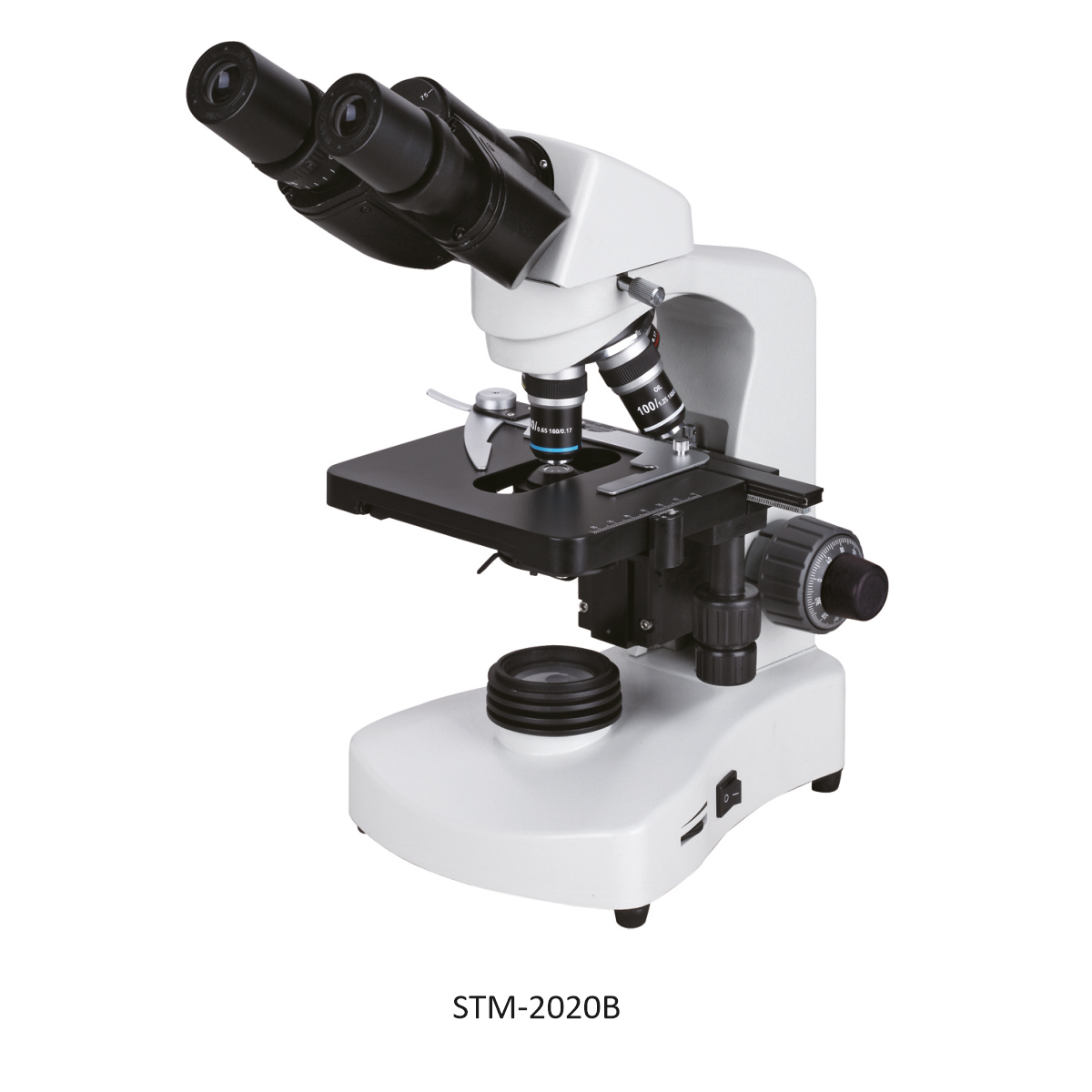

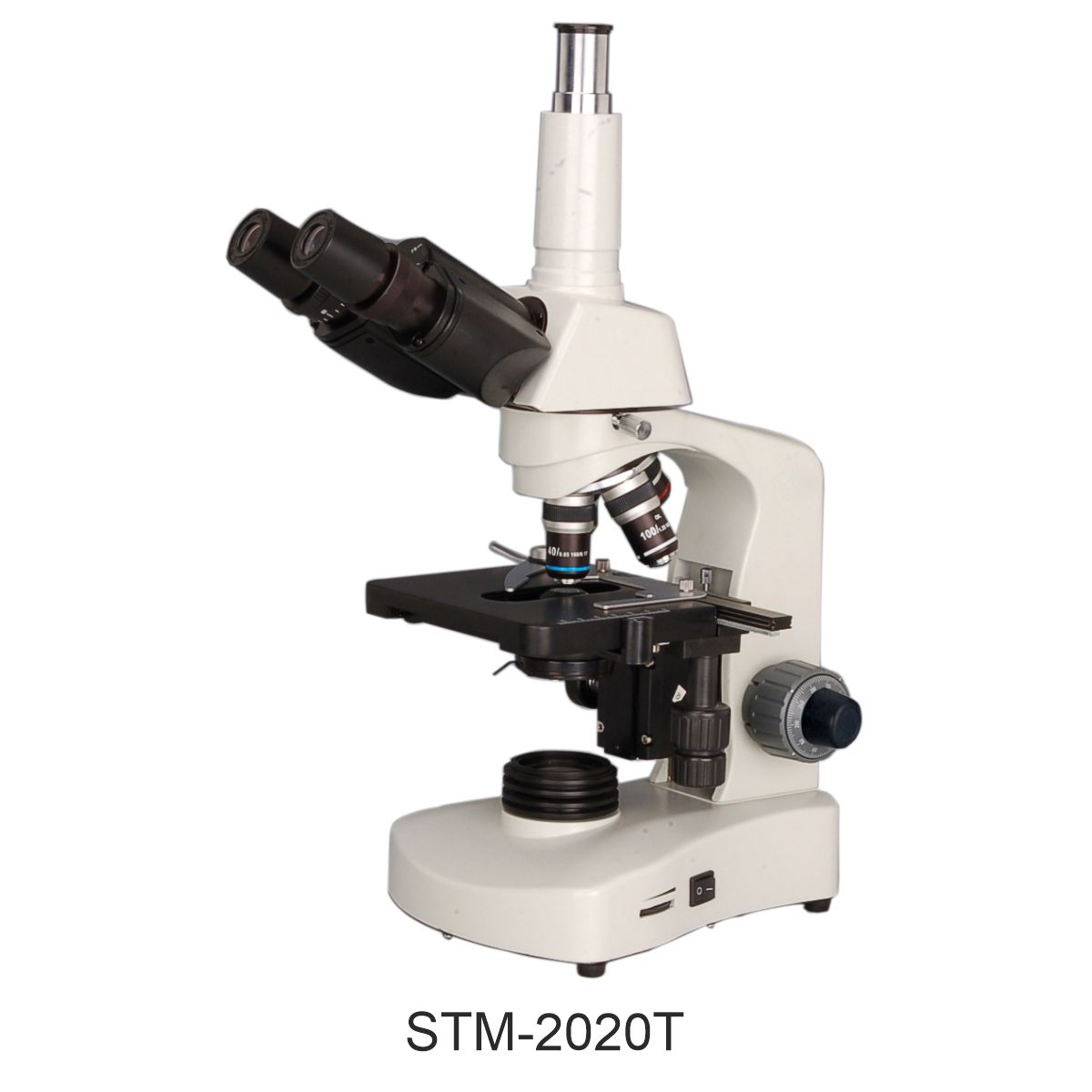

STM-2020M |
STM-2020B |
STM-2020T |
|
Viewing Head |
Monocular Head, Inclined at 30°, 360° Rotatable |
Standard |
|
|
|
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm |
|
Standard |
|
|
|
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 55-75mm |
|
|
Standard |
|
|
Eyepiece |
WF10×/18mm |
Standard |
Standard |
Standard |
|
WF16×/11mm |
Optional |
Optional |
Optional |
|
|
WF25×/8mm |
Optional |
Optional |
Optional |
|
|
Objective |
Achromatic Objective 4×, 10×, 40×, 100×(Oil) |
Standard |
Standard |
Standard |
|
Achromatic Objective 20×, 60× |
Optional |
Optional |
Optional |
|
|
Nosepiece |
Backward Quadruple Nosepiece |
Standard |
Standard |
Standard |
|
Stage |
Double Layer Mechanical Stage 132×142mm/ 75×40mm |
Standard |
Standard |
Standard |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm |
Standard |
Standard |
Standard |
|
Condenser |
Abbe NA 1.20 with Iris Diaphram and Filter |
Standard |
Standard |
Standard |
|
Illumination |
1W S-LED illumination, Brightness Adjustable |
Standard |
Standard |
Standard |
|
Halogen Lamp 6V/ 20W, Brightness Adjustable |
Optional |
Optional |
Optional |
|
|
Immersion oil |
5ml Immersion oil |
Standard |
Standard |
Standard |
|
Optional Accessories |
Phase Contrast Kit |
Optional |
Optional |
Optional |
|
Dark Field Attachment |
Optional |
Optional |
Optional |
|
|
Polarization Attachment |
Optional |
Optional |
Optional |
|
|
Rechargeable battery |
Optional |
Optional |
Optional |
|
|
Package |
1pc/carton, 39.5cm*26.5cm*50cm, 7kg |
Standard |
Standard |
Standard |
STM-2020 series microscopes are ideally suited for school biological education and medical analyses area to oSTMerve all kinds of slides. They can be widely used in clinics, hospitals, schools, academic laSTM and scientific research department
|
Item |
Specification |
STM-2020M |
STM-2020B |
STM-2020T |
|
Viewing Head |
Monocular Head, Inclined at 30°, 360° Rotatable |
Standard |
|
|
|
Seidentopf Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm |
|
Standard |
|
|
|
Seidentopf Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 55-75mm |
|
|
Standard |
|
|
Eyepiece |
WF10×/18mm |
Standard |
Standard |
Standard |
|
WF16×/11mm |
Optional |
Optional |
Optional |
|
|
WF25×/8mm |
Optional |
Optional |
Optional |
|
|
Objective |
Achromatic Objective 4×, 10×, 40×, 100×(Oil) |
Standard |
Standard |
Standard |
|
Achromatic Objective 20×, 60× |
Optional |
Optional |
Optional |
|
|
Nosepiece |
Backward Quadruple Nosepiece |
Standard |
Standard |
Standard |
|
Stage |
Double Layer Mechanical Stage 132×142mm/ 75×40mm |
Standard |
Standard |
Standard |
|
Focusing |
Coaxial Coarse & Fine Adjustment, Fine Division 0.004mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.4mm per Rotation, Moving Range 24mm |
Standard |
Standard |
Standard |
|
Condenser |
Abbe NA 1.20 with Iris Diaphram and Filter |
Standard |
Standard |
Standard |
|
Illumination |
1W S-LED illumination, Brightness Adjustable |
Standard |
Standard |
Standard |
|
Halogen Lamp 6V/ 20W, Brightness Adjustable |
Optional |
Optional |
Optional |
|
|
Immersion oil |
5ml Immersion oil |
Standard |
Standard |
Standard |
|
Optional Accessories |
Phase Contrast Kit |
Optional |
Optional |
Optional |
|
Dark Field Attachment |
Optional |
Optional |
Optional |
|
|
Polarization Attachment |
Optional |
Optional |
Optional |
|
|
Rechargeable battery |
Optional |
Optional |
Optional |
|
|
Package |
1pc/carton, 39.5cm*26.5cm*50cm, 7kg |
Standard |
Standard |
Standard |
STM-2020 series microscopes are ideally suited for school biological education and medical analyses area to oSTMerve all kinds of slides. They can be widely used in clinics, hospitals, schools, academic laSTM and scientific research department
