Item |
Specification |

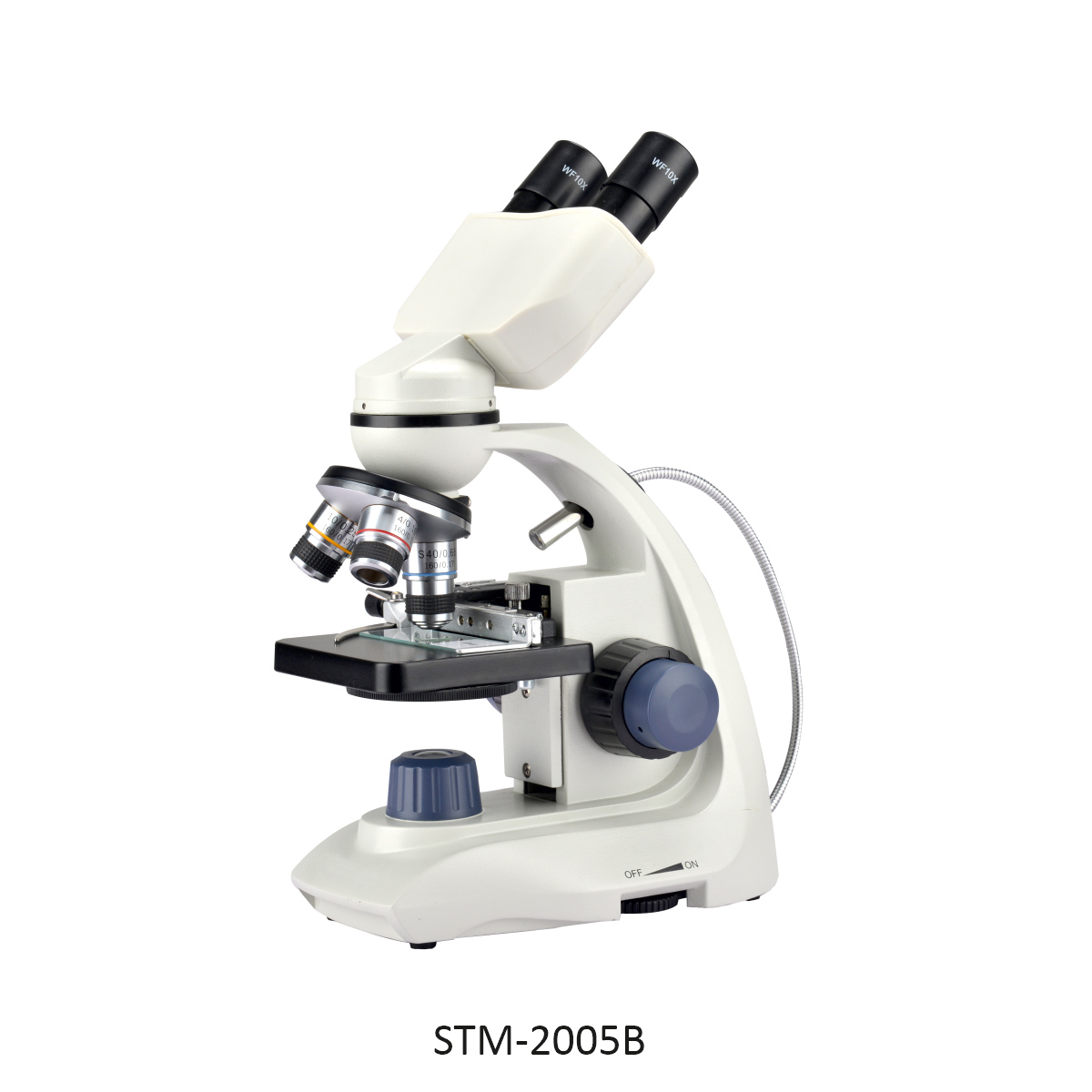

STM-2005M |
STM-2005B |
|
Viewing Head |
Monocular viewing head, Inclined at 45°, 360° Rotatable |
Standard |
|
|
Binocular viewing head, Inclined at 45°, 360° Rotatable, Interpupillary distance 54-77mm |
|
Standard |
|
|
Eyepiece |
WF10×/16mm |
Standard |
Standard |
|
WF16×/11mm |
Optional |
Optional |
|
|
WF20×/9.5mm |
Optional |
Optional |
|
|
WF25×/6.5mm |
Standard |
Standard |
|
|
Nosepiece |
Triple Nosepiece |
Standard |
Standard |
|
Objective |
Achromatic Objective 4×(185) |
Standard |
Standard |
|
Achromatic Objective 10×(185) |
Standard |
Standard |
|
|
Achromatic Objective 40×(185) |
Standard |
Standard |
|
|
Achromatic Objective 60×(185) (The performance is not good, not recommend) |
Optional |
Optional |
|
|
Achromatic Objective 100×(185) (The performance is not good, not recommend) |
Optional |
Optional |
|
|
Stage |
Plain Stage with Slide Clips 95×95mm |
Standard |
Standard |
|
Plain Stage with Mechanical ruler 95×95mm/60×30mm |
Optional |
Optional |
|
|
Focusing |
Coaxial Coarse and Fine Adjustment |
Standard |
Standard |
|
Condenser |
Single Lens NA 0.65 with Disc Diaphragm |
Standard |
Standard |
|
Illumination |
0.1W LED Illumination, Brightness Adjustable |
Standard |
Standard |
|
Spare Parts |
Dust Cover |
Standard |
Standard |
|
Power Supply |
AC100-220V power adapter, microscope input voltage DC5V |
Standard |
Standard |
|
Battery compartment (can use 3pcs AA batteries as the power supply) |
Standard |
Standard |
|
|
Package |
Styrofoam & Carton, Dimension 28×19×40 cm, 3kg |
Standard |
Standard |
STM-2005 series biological microscopes can be used for educational applications in elementary and middle schools. They also can be used as hobby for biological applications and small items identification.
|
