STC2C Series
CMOS Color Microscope Digital Cameras

STC2C series cameras adopt ultra-high performance CMOS sensor as the image-capture device. USB2.0 is used as the data transfer interface.

STC2C series cameras’ hardware resolutions ranges from 0.35M to 14M and come with the zinc aluminum alloy compact housing. STC2C come with advanced video & image processing application ImageView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API; The STC2C can be widely used in bright field light environment and microscope image capture and analysis with moderate frame rate.

Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature

Features

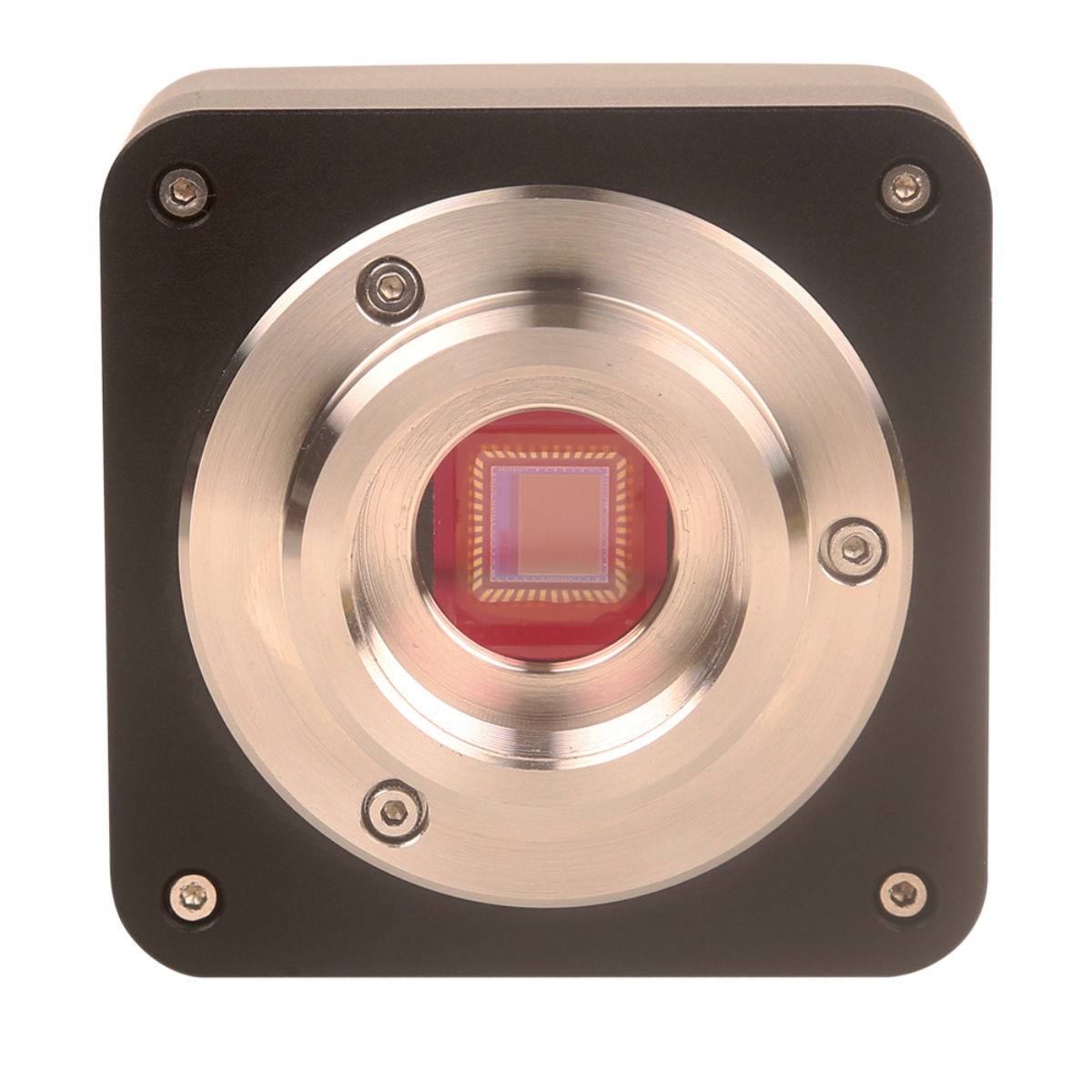

  • Standard C-Mount with Aptina CMOS sensor;
  • With hardware resolution among 0.35M to 14M;
  • Durable zinc aluminum alloy housing;
  • USB2.0 interface ensuring high speed data transmission;
  • Ultra-FineTM color engine with perfect color reproduction capability;
  • With advanced video & image processing application ImageView;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

Specifications

Order Code

Sensor & Size(mm)

Pixel(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

STC2C-1400C

14M/MT9F002(C)
1/2.3“(6.451x4.603)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

1.8@4096x3288
10@2048x1644
27@1024x822

1x1, 2x2, 4x4

0.4ms~2000ms

STC2C-1000C

10M/MT9J003(C)
1/2.3“ (6.44x4.616)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

1.9@3584x2748
8@1792x1374
27@896x684

1x1, 2x2, 4x4

0.4ms~2000ms

STC2C-900C

9M/Special(C)
1/2.4“(5.825x4.369)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

1.9@3488x2616
8@1744x1308
27@872x654

1x1, 2x2, 4x4

0.4ms~2000ms

STC2C-800C

8M/Special(C)
1/2.5“(5.451x4.088)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

1.9@3264x2448
8@1600x1200
27@800x600

1x1, 2x2, 4x4

0.4ms~2000ms

STC2C-500C

5.1M/MT9P001(C)
1/2.5“ (5.7x4.28)

2.2x2.2

0.53 V/lux-sec

66.5dB

40.5dB

5@2592x1944
18@1280x960
60@640x480

1x1, 2x2, 4x4

0.294ms~2000ms

STC2C-300C

3.1M/MT9T001(C)
1/2“ (6.55x4.92)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

8@2048x1536
22@1024x768
43@680x510

1x1, 2x2, 3x3

0.244ms~2000ms

STC2C-200C

2.0M/Special(C)
1/2.6“(5.12x3.84)

3.2x3.2

1.0 V/lux-sec

61dB

43dB

16@1600x1200
50@800x600

1x1, 2x2

0.128ms~2000ms

STC2C-123C

1.23M/SC1235(C)
1/3“ (4.80x3.60)

3.75x3.75

4.5V/lux-sec

74dB

38dB

15@1280x960
15@1280x720

1x1, 1x1

0.14ms~2000ms

STC2C-130M

1.3M/MT9M001(M)
1/2“ (6.66x5.32)

5.2x5.2

2.1 V/lux-sec

68.2dB

45dB

20@1280x1024

1x1

0.14ms~500ms

STC2C-35C

0.35M/MT9V011(C)
1/4“ (3.58x2.69)

5.6x5.6

1.9V/lux-sec

60dB

45dB

30@640x480
80@320x240

1x1, 2x2

0.111ms~192ms



Other Specification for STC2C Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System*

Natural

Operating Environment

Operating Temperature (in Centigrade)

-10~ 50

Storage Temperature (in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB2.0 High-speed Port

Display:17” or Larger

CD-ROM

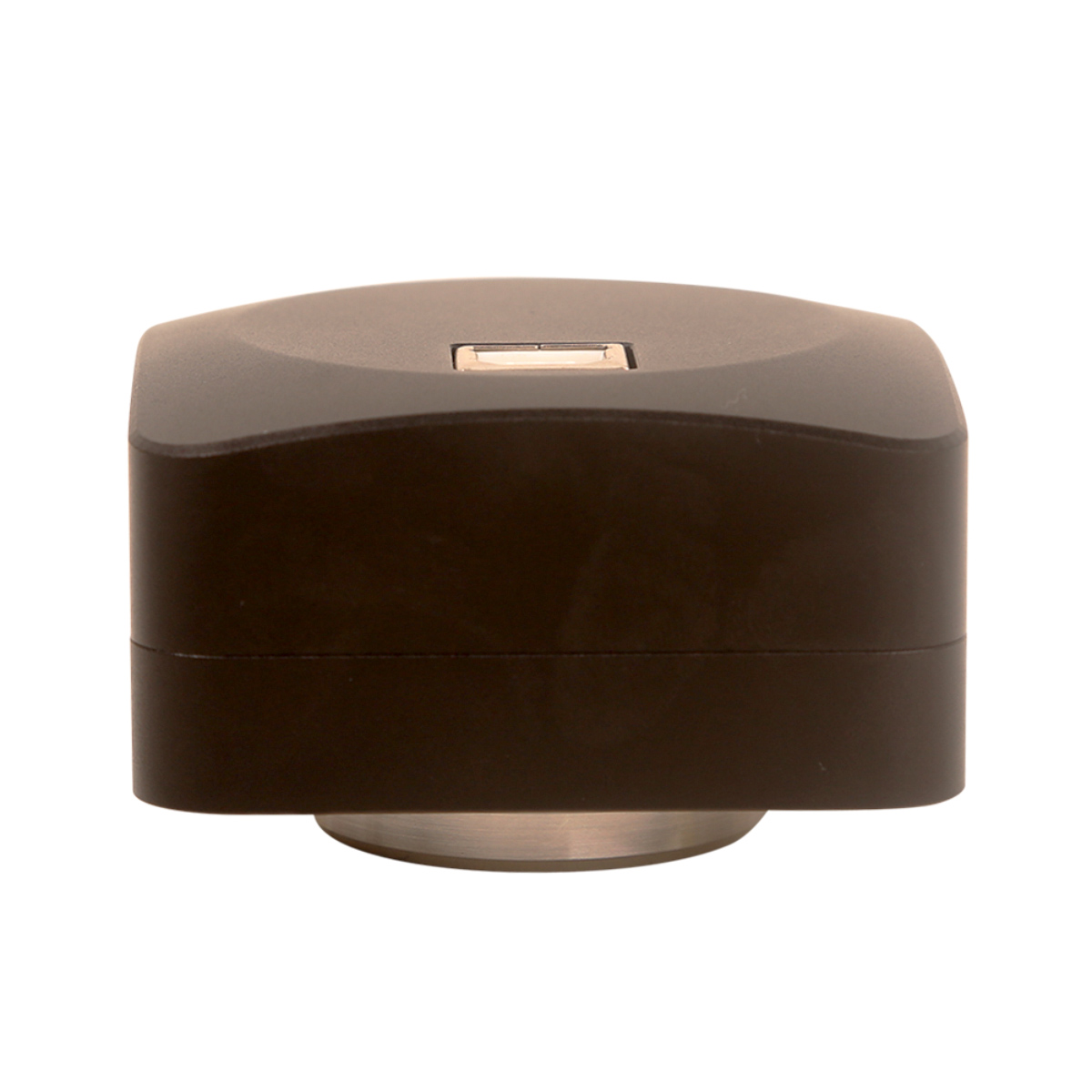

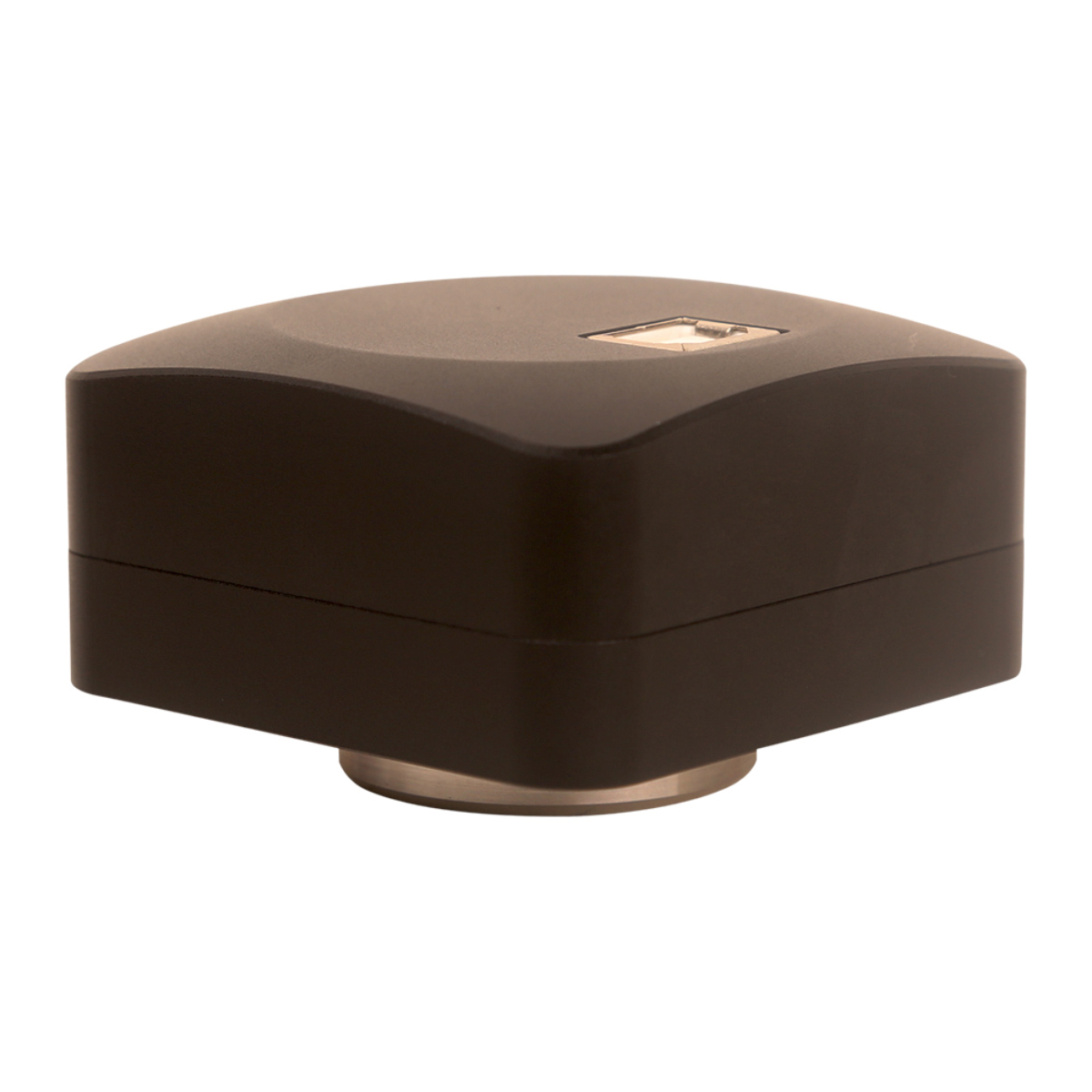

Dimension of STC2C

The STC2C body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
