Order Code |
Sensor & Size(mm) |
Pixel Size(μm) |
G Sensitivity Dark Signal |
FPS/Resolution |
Binning |
Exposure |
|
STC4C-520C |
5.2M/ICX655AQ(C) |
3.45x3.45 |
420mv with 1/30s 4mv with 1/30s |
4.3@2448x2050 |
1x1 |
0.22ms~60s |
|
STC4C-510C |
5.1M/ICX452AQ(C) |
2.775x2.775 |
260mv with 1/30s 16mv with 1/30s |
4@2592x1944 |
1x1, 2x2 |
0.212ms~77ms |
|
STC4C-500C |
5.0M/ICX282AQ(C) |
3.40x3.40 |
280mv with 1/30s 16mv with 1/30s |
4.5@2560x1920 |
1x1, 2x2 |
0.203ms~60s |
|
STC4C-200C |
2.0M/ICX274AQ(C) |
4.40x4.40 |
420mv with 1/30s 8mv with 1/30s |
10@1600x1200 |
1x1 |
0.135ms~60s |
|
STC4C-140BC |
1.4M/ICX205AK(C) |
4.65x4.65 |
400mv with 1/30s 16mv with 1/30s |
15@1360x1024 |
1x1 |
0.127ms~60s |
|
STC4C-140M |
1.4M/ICX205AL(M) |
4.65x4.65 |
450mv with 1/30s 16mv with 1/30s |
15@1360x1024 |
1x1 |
0.127ms~60s |
|
Other Specification for STC4C |
|
|
Spectral Range |
380-650nm (with IR-cut Filter) |
|
White Balance |
ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor |
|
Color Technique |
Ultra-FineTM Color Engine/NA for Monochromatic Sensor |
|
Capture/Control API |
Native C/C++, C#/VB.NET, DirectShow, Twain and Labview |
|
Recording System |
Still Picture and Movie |
|
Cooling System* |
Natural |
|
Operating Environment |
|
|
Operating Temperature(in Centigrade) |
-10~ 50 |
|
Storage Temperature(in Centigrade) |
-20~ 60 |
|
Operating Humidity |
30~80%RH |
|
Storage Humidity |
10~60%RH |
|
Power Supply |
DC 5V over PC USB Port |
|
Software Environment |
|
|
Operating System |
Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit) OSx(Mac OS X) Linux |
|
PC Requirements |
CPU: Equal to Intel Core2 2.8GHz or Higher |
|
Memory:2GB or More |
|
|
USB Port:USB2.0 High-speed Port |
|
|
Display:17” or Larger |
|
|
CD-ROM |
|
Dimension of STC4C

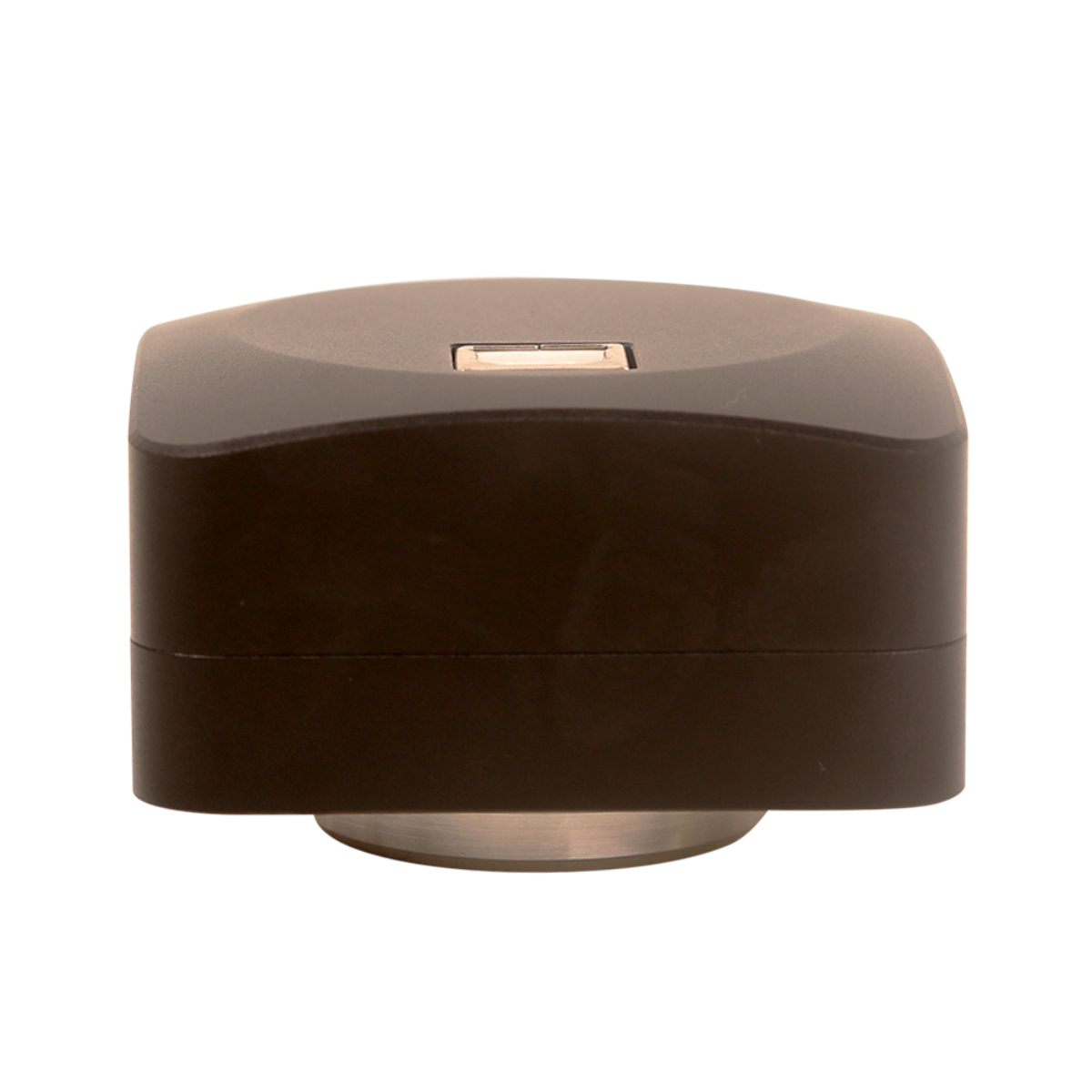

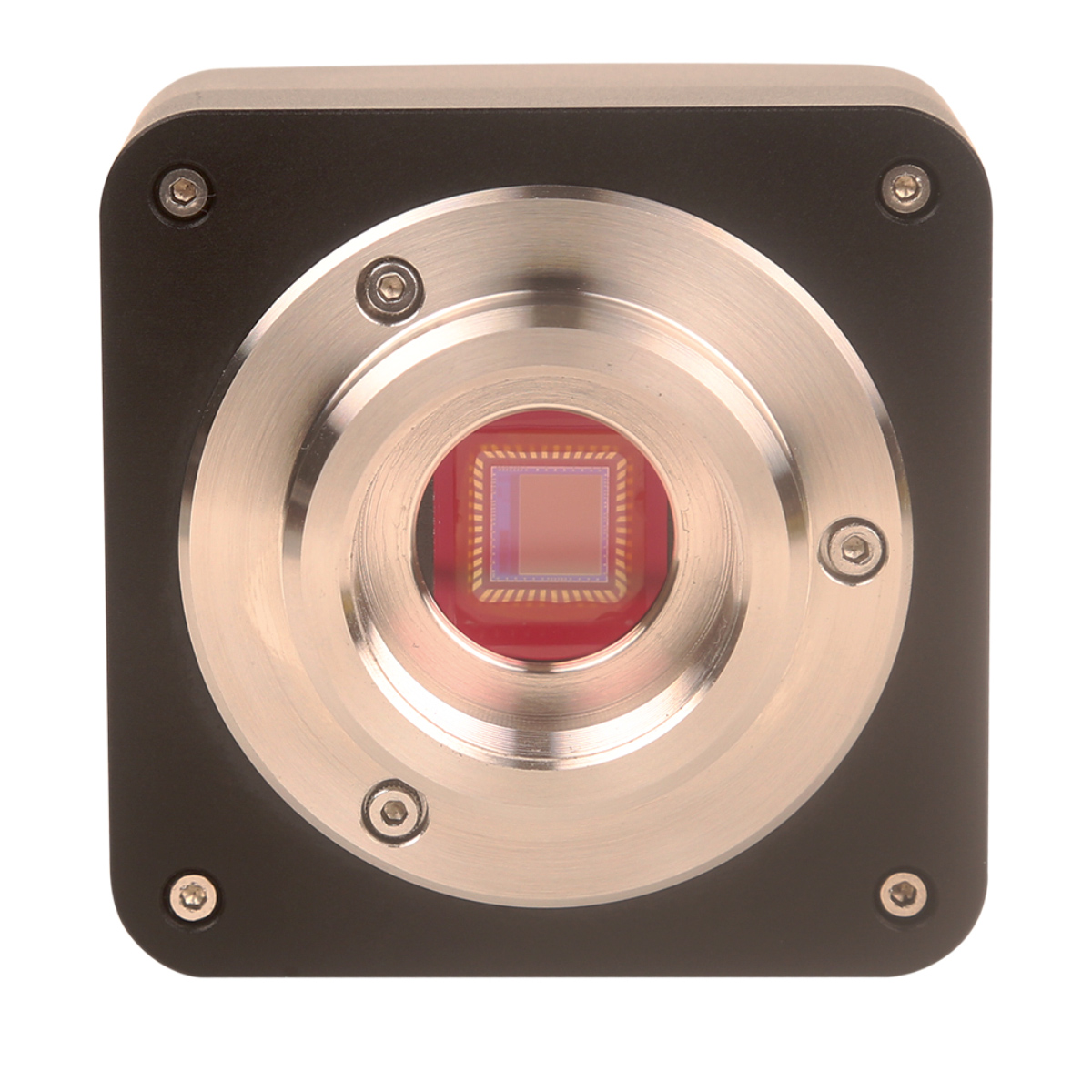

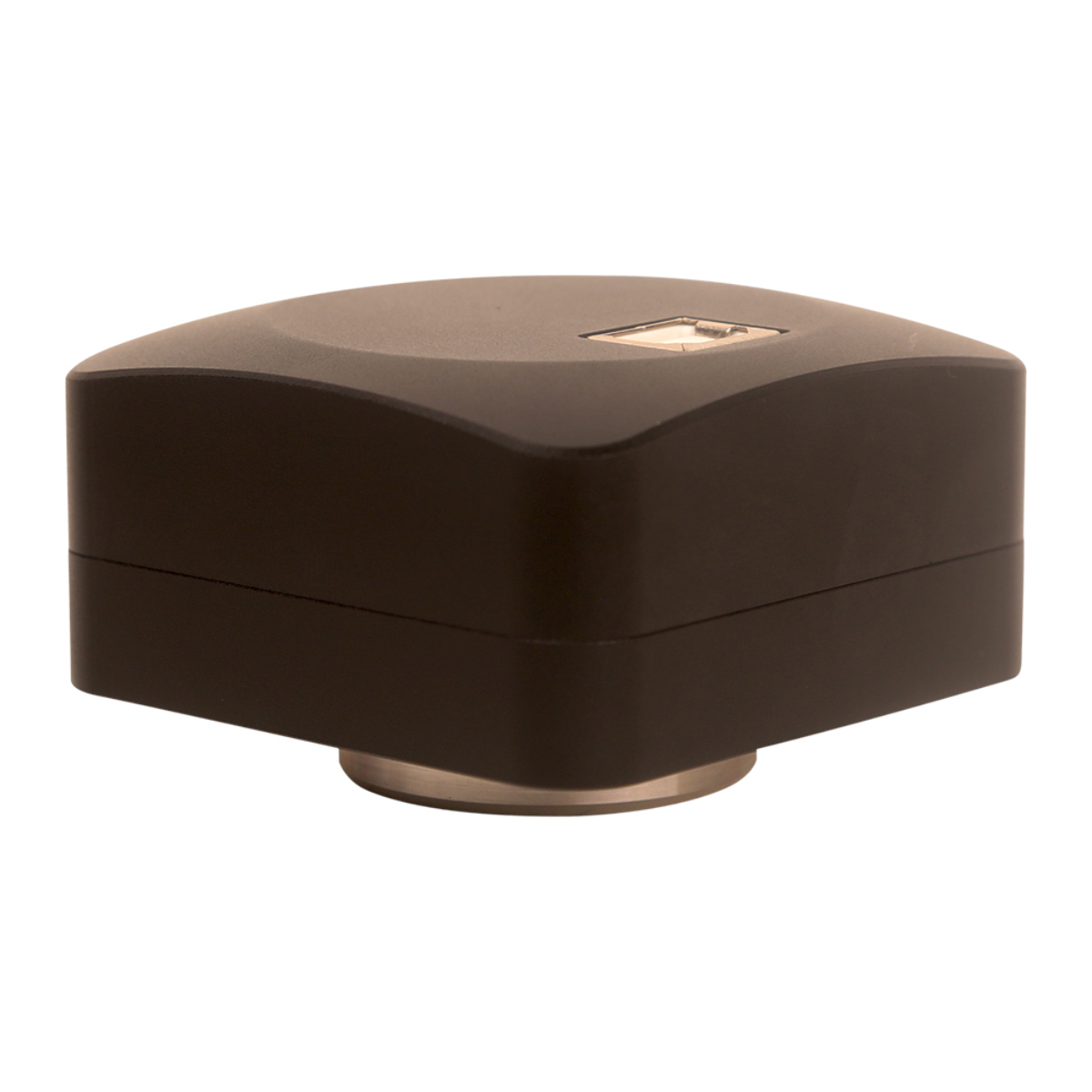

The STC4C body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
|
