Features

All in 1( HDMI+WIFI) C-mount camera with Sony high sensitivity CMOS sensor;
For HDMI application, with built-in multiple-language XCamView software. The camera characteristic can be controlled by XCamView through the USB mouse. The other basic processing and choosing can also be realized by the XCamView.;
1920 × 1080 (1080P) resolutions to match the current high-definition displayer on the market; Support plug and play application;
For HDMI application, 5.04M resolution image(2592*1944 SWHC-1080B) or 2.0M resolution image(1920*1080 SWHC-1080D/E) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved;
With the USB WIFI adapter, the SWHC-1080B/D/E can be used as WIFI camera, the ImageView/ImageLite advanced image processing software is used to view the video and capture image, support plug and play application;
Ultra-Fine color engine with perfect color reproduction capability(WIFI);
With advanced video & image processing application ImageView, which including professional image processing such as 2D measurement, HDR, image stitching, EDF(Extended Depth of Focus), image segmentation & count, image stacking, color composite and denoising(USB).

Specifications

Order Code	Sensor & Size(mm)	Pixel(μm)	G Sensitivity Dark Signal	FPS/Resolution	Binning	Exposure
SWHC-1080B	1080P/5M/Sony IMX178(C) 1/1.8"(6.22x4.67)	2.4x2.4	425mv with 1/30s 0.15mv with 1/30s	30@19201080(HDMI) 25@19201080(WiFi)	1x1	0.03ms~918ms
SWHC-1080D	1080P/2M/Sony IMX185(C) 1/1.9"(7.20x4.05)	3.75x3.75	1120mv with 1/30s 0.15mv with 1/30s	30@19201080(HDMI) 25@19201080(WiFi)	1x1	0.06ms~918ms
SWHC-1080E	Sony IMX249(C,GS) 1/1.2"(11.25x6.33)	5.86*5.86	1016mv with 1/30s 0.15mv with 1/30s	30@19201080(HDMI) 25@19201080(WiFi)	1x1	0.043ms~1000ms

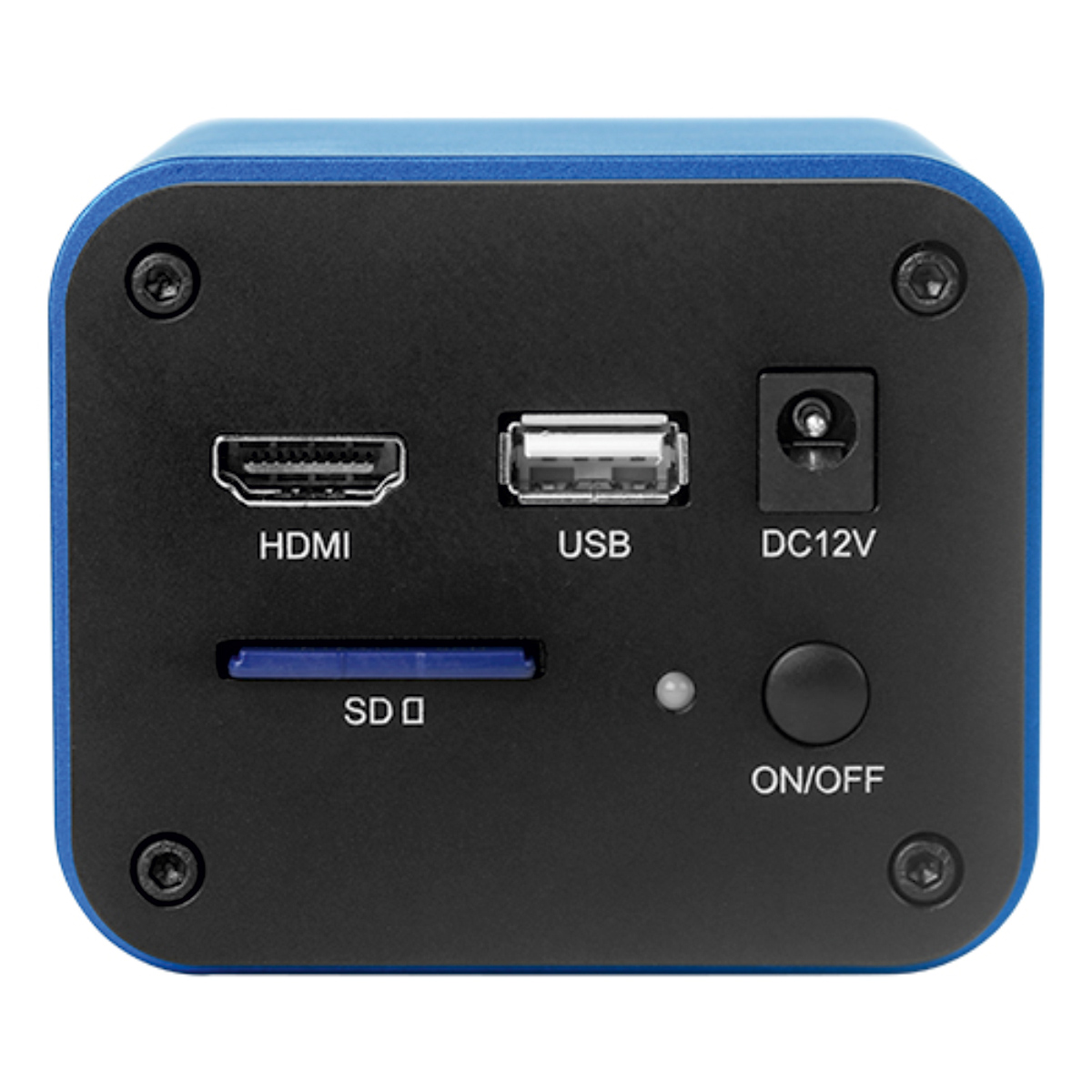

Interface & Button Functions
		USB	USB Mouse/USB WIFI Adapter
		HDMI	HDMI Out
		DC12V	12V Power in
		SD	SD Card Slot
		ON/OFF	Power On/off Switch
		LED	Power Indicator
Other Specification for HDMI Out
UI Operation	With USB Mouse to Operate on the embedded XCamView
Image Capture	JPEG Format with 5M Resolution (25921944) in SD Card(16G) (SWHC-*1080B) JPEG Format with 2M Resolution in SD Card(8G) (SWHC-1080D/E)
Video Record	ASF Format 1080P 30fps in SD Card(8G)

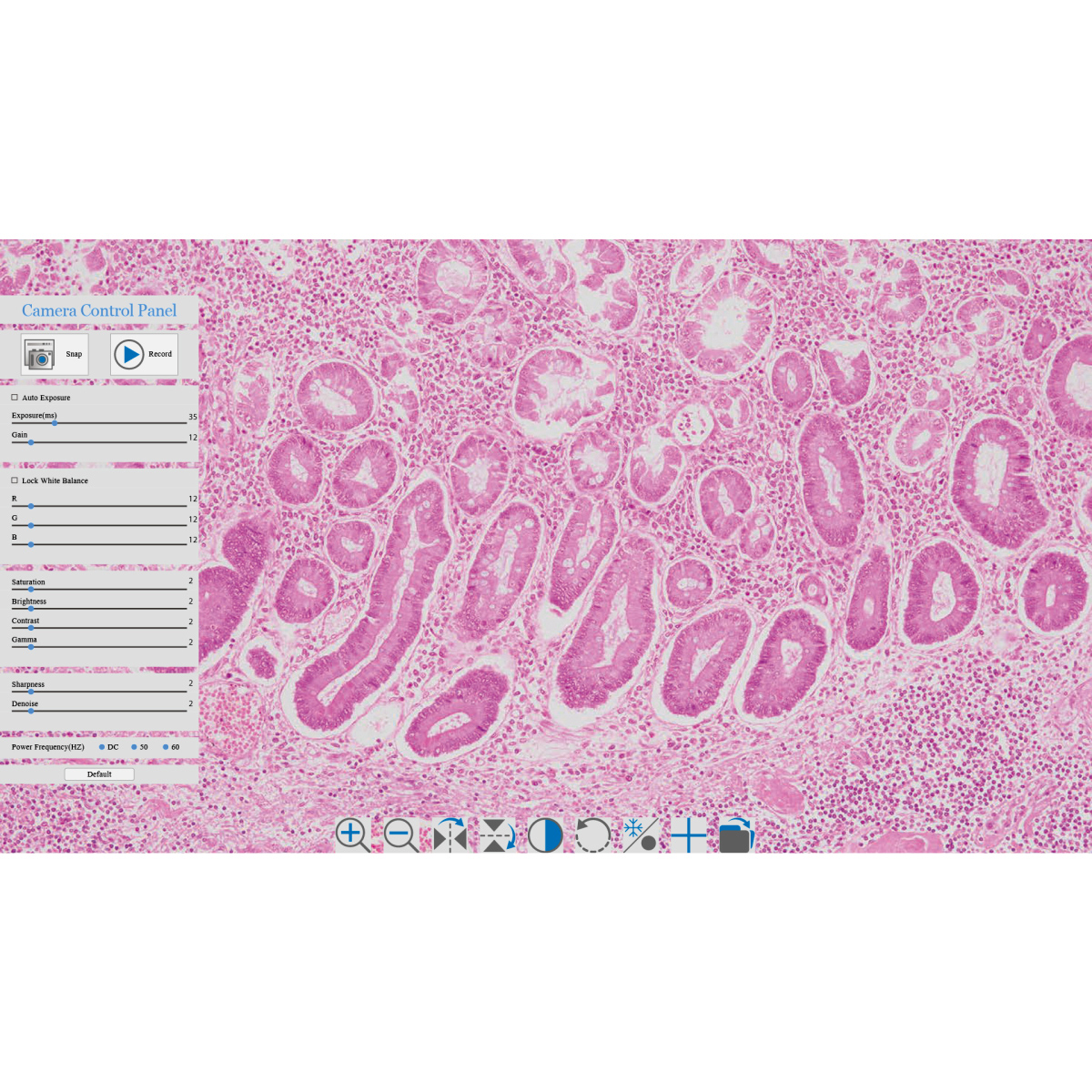

Camera Control Panel	Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
Toolbar	Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information
Other Specification for WIFI Out
UI Operation	ImageView or ImageLite on Windows/Linux/OSX/Android Platform
WIFI Performance	802.11n 150Mbps; RF Power 20dBm(Maximum)
Maximum Connected Devices	3~6(According to the Environment and Connection Distance)
White Balance	Auto White Balance
Color Technique	Ultra-Fine^TM Color Engine (WIFI)
Capture/Control API	Standard SDK for Windows/Linux/Mac(WIFI)
Recording System	Still Picture or Movie (WIFI)
Software Environment (for USB2.0 Connection)
Operating System	Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit) OSx(Mac OS X) Linux
PC Requirements	CPU: Equal to Intel Core2 2.8GHz or Higher
	Memory: 4GB or More
	USB Port: USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer)
	Display: 19” or Larger
	CD-ROM
Operating Environment
Operating Temperature (in Centigrade)	-10~ 50
Storage Temperature (in Centigrade)	-20~ 60
Operating Humidity	30~80%RH
Storage Humidity	10~60%RH
Power Supply	DC 12V/1A Adapter

Application

SWHC-1080B/D can meet various applications and can be widely used in industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.

Scientific research, education (teaching, demonstration and academic exchanges);
Digital laboratory, medical research;
Industrial visual (PCB examination, IC quality control);
Medical treatment (pathological observation);
Food (microbial colony observation and counting);
Aerospace, military (high sophisticated weapons).

Literature

SWHC-1080 Series Brochure
