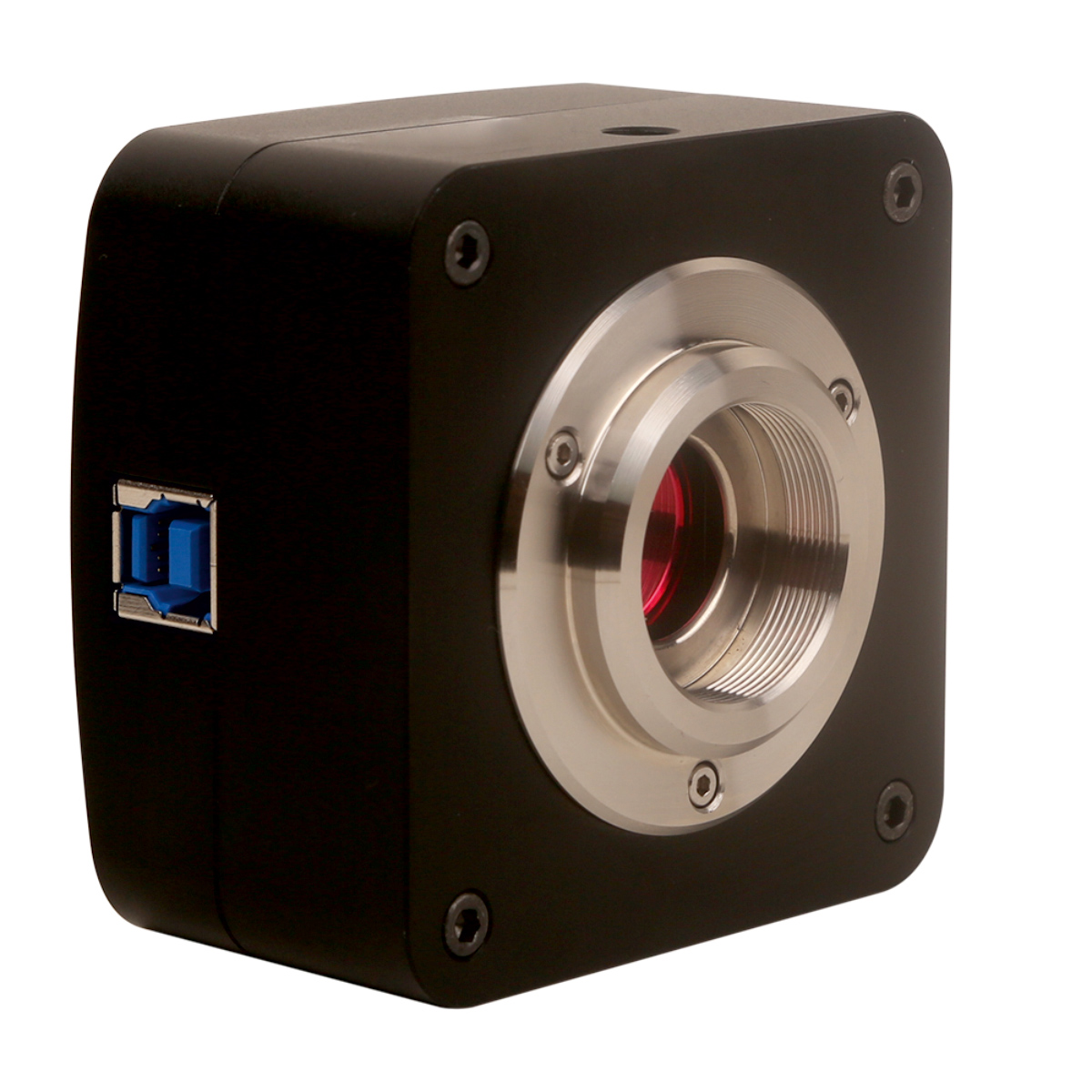

STC5D Series
C-mount CMOS Color Digital Camera

STC5D series cameras are ultra-high performance USB3.0 CMOS cameras and they adopt ultra-high performance CMOS sensor as the image capture device and USB3.0 is used as the data transfer interface.

STC5D hardware resolutions range from 3.0M to 14M and come with the integrated zinc aluminum alloy compact housing.

STC5D comes with advanced video & image processing application ImageView; Providing Windows/Linux/ OSX multiple platforms SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

The STC5D can be widely used in bright field light environment and microscope image capture and analysis with higher frame rate.

Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature

Features

  • Standard C-Mount camera with Aptina CMOS sensor;
  • With hardware resolution from 3.0MP to 18MP;
  • Integrated zinc aluminum alloy housing;
  • USB3.0 5 Gbps interface ensuring high frame rate;
  • With advanced video & image processing application ImageView;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain Control API.

Specifications

Order Code

Sensor & Size

Pixel(μm)

G Responsivity

Dynamic range

SNRmax

FPS/Resolution

Binning

Exposure

STC5D-1800C

18M/AR1820(C)
1/2.3"(6.14x4.61)

1.25x1.25

0.62 V/lux-sec
65.8dB

36.3dB

5.6@4912x3684
18.1@2456x1842
32.2@1228x922

1x1,2x2,4x4

0.1ms~2000ms

STC5D-1600C

16M/MN34120(C)
1/2.33“(6.18x4.66)

1.335x1.335

R: 2453LSB

Gr: 2444LSB

Gb: 1054LSB

B: 996LSB

6.0@4632x3488
15.0@2320x1740
26.0@1536x1160

1x1, 2x2,3x3

0.2ms~2000ms

STC5D-1601C

16M/MN34230PLJ (C)
4/3“ (17.6x13.3)

3.8x3.8

R: 1315LSB

Gr: 2413LSB

Gb: 2413LSB

B: 1042LSB

(Gain = 0dB)

6.0@4648x3506
15.0@2304x1750
30.0@1536x1168

1x1,2x2,3x3

0.06ms~15s

STC5D-1601M

16M/MN34230ALJ(M)
4/3“ (17.6x13.3)

3.8x3.8

A: 2650LSB

B: 2650LSB

C: 2650LSB

D: 2650LSB

(Gain = 0dB)

22@4640x3506

36@3840x2160

43@2304x1750

43@1920x1080

49@1536x1168

1x1,
1x1,
2x2,
2x2,
3x3

0.224ms~15s

STC5D-1400C

14M/MT9F002(C)
1/2.3“(5.73x4.60)

1.4x1.4

0.724v/lux-sec

65.3dB

35.5dB

6.2@4096x3286
20.8@2048x1644
53.3@1024x822

1x1,2x2,4x4

0.224ms~2000ms

STC5D-1000C

10M/MT9J003(C)
1/2.3“ (5.98x4.58)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

7.2@3584x2746
24.5@1792x1372

1x1,2x2,4x4

0.4ms~2000ms

STC5D-850C

8.5M/Special(C)
1/2.4“(5.56x4.26)

1.67x1.67

0.31v/lux-sec

65.2dB

34dB

8.3@3328x2548
26.2@1664x1272

1x1,2x2,4x4

0.1ms~2000ms

STC5D-500C

5.1M/MT9P006(C)
1/2.5“ (5.7x4.28)

2.2x2.2

1.76v/lux-sec

67.74dB

38.5dB

14.2@2560x1922
38.3@1280x960
101.2@640x480

1x1,2x2,4x4

0.1ms~2000ms

STC5D-300C

3.1M/AR0330(C)
1/3“ (4.51x3.38)

2.2x2.2

1.9v/lux-sec

100dB

39dB

27.3@2048x1534
53.3@1024x770

1x1, 2x2

0.1ms~2000ms



Other Specification for STC5D Camera

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-FineTM Color Engine/NA for Monochromatic Sensor

Capture/Control API

Native C/C++, C#/VB.NET, DirectShow, Twain and Labview

Recording System

Still Picture and Movie

Cooling System

Natural

Operating Environment

Operating Temperature(in Centigrade)

-10~ 50

Storage Temperature(in Centigrade)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 5V over PC USB Port

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB3..0 High-speed Port

Display:17” or Larger

CD-ROM



Dimension of STC5D

The STC5D series body, made from tough, zinc alloy, ensures a heavy duty, workhorse solution. The camera is designed with a high quality IR-CUT to protect the camera sensor. No moving parts included. These measures ensure a rugged, robust solution with an increased lifespan when compared to other industrial camera solutions.
