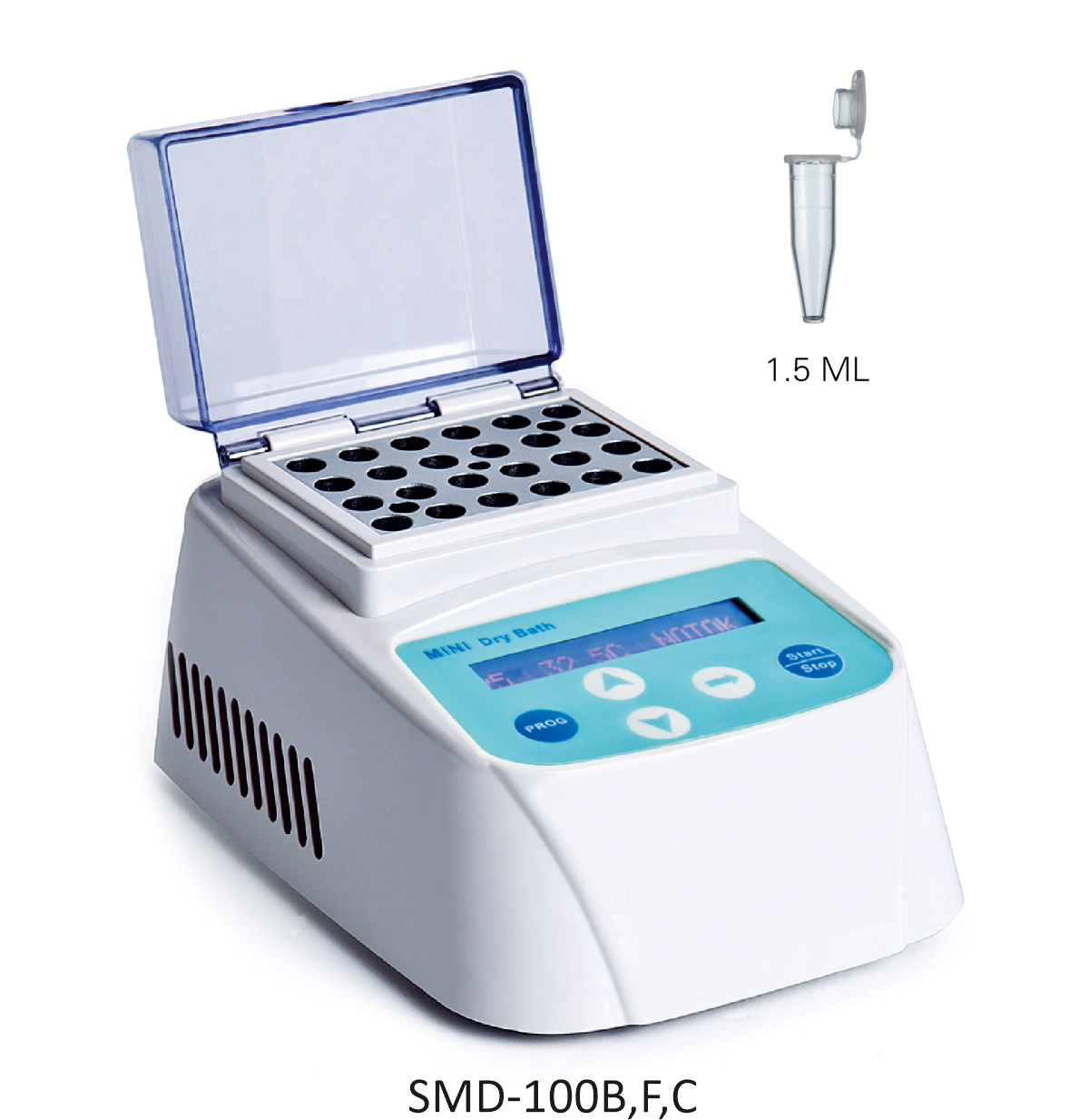

Model |
SMD-100B |
SMD-100C |
SMD-100D |
SMD-100F |
SMD-100I |
|
Temp. Control Range |
R.T.+5℃~100℃ |
-10℃~100℃ |
-10℃~100℃ |
R.T.+5℃~100℃ |
R.T.+5℃~100℃ |
|
Temp. Max. Decrease |
/ |
R.T. decreases 25℃ @R.T. 26℃ |
R.T. decreases 25℃@R.T. 26℃ |
/ |
/ |
|
Temp. Setting Range |
0℃~100℃ |
-10℃~100℃ |
-10℃~100℃ |
0℃~100℃ |
0℃~100℃ |
|
Temp. Stability@100℃ |
±0.5℃ |
±0.5℃ |
±0.5℃ |
±0.5℃ |
±0.5℃ |
|
Temp. Stability@40℃ |
±0.3℃ |
±0.3℃ |
±0.3℃ |
±0.3℃ |
±0.3℃ |
|
Block Temp. Uniformity |
±0.3℃ |
±0.3℃ |
±0.3℃ |
±0.3℃ |
±0.3℃ |
|
Temp. Display Accuracy |
0.1℃ |
0.1℃ |
0.1℃ |
0.1℃ |
0.1℃ |
|
Heating Speed |
≤15min ( 20℃ to 100℃) |
≤15min ( 20℃ to 100℃) |
≤15min ( 20℃ to 100℃) |
≤15min ( 20℃ to 100℃) |
≤15min ( 20℃ to 100℃) |
|
Cooling Speed |
natural cooling |
≤30min (R.T. decreases 20℃) @R.T.26℃ |
≤30min (R.T. decreases 20℃) @R.T.26℃ |
fan cooling |
natural cooling |
|
Heating Cover |
no |
no |
with |
no |
with |
|
Time Range |
1sec~999sec or1min~999min |
1sec~999sec or1min~999min |
1sec~999sec or1min~999min |
1sec~999sec or1min~999min |
1sec~999sec or1min~999min |
|
Voltage |
DC24V adapter |
DC24V adapter |
DC24V adapter |
DC24V adapter |
DC24V adapter |
|
Power |
60W |
120W |
120W |
60W |
60W |
|
Dimension |
W.110 x D.156 x H.92mm |
W.110 x D.156 x H.103mm |
W.110 x D.156 x H.108mm |
W.110 x D.156 x H.103mm |
W.110 x D.156 x H.97 mm |
|
Net Weight |
1kgs |
1.4kgs |
1.4kgs |
1kgs |
1kgs |
| Cat# | Spec |
Dia. of hole
|
Hole bottom shape | Block dimension |
|
SMD-A
|
0.2 ml x 40 | 6.1 mm | Cone bottom | 71 x 47 x 32 mm |
| SMD-B | 0.5 ml x 24 | 8 mm | Cone bottom | 71 x 47 x 32 mm |
| SMD-C | 1.5 ml x15 | 10.8 mm | Cone bottom | 71 x 47 x 32 mm |
| SMD-D | 2.0 ml x 15 | 10.8 mm | Round bottom | 71 x 47 x 32 mm |
| SMD-E | cuvette x 8 |
8~12.5 mm(Maximum
edge length 15mm)
|
No bottom | 71 x 47 x 32 mm |
| SMD-F | 15ml x 4 | 16.9mm | Flat bottom | 71 x 47 x 82 mm |
| SMD-G | 50 ml x 2 | 29.2mm | Flat bottom | 71 x 47 x 82 mm |
|
