Real time display of collector temperature & vacuum level
Automatic control of freeze-drying process, program can be set by users
Can be switched to manual operation mode at any time needed, to realize entire control of freeze-drying process.
Record vacuum rate, cold trap temperature, material temperature, shelf temperature, USB port for data download
Alarms for temperature and vacuum level, guarantee the safety and stability of operation.
|
|
Model |
STFD-10B |

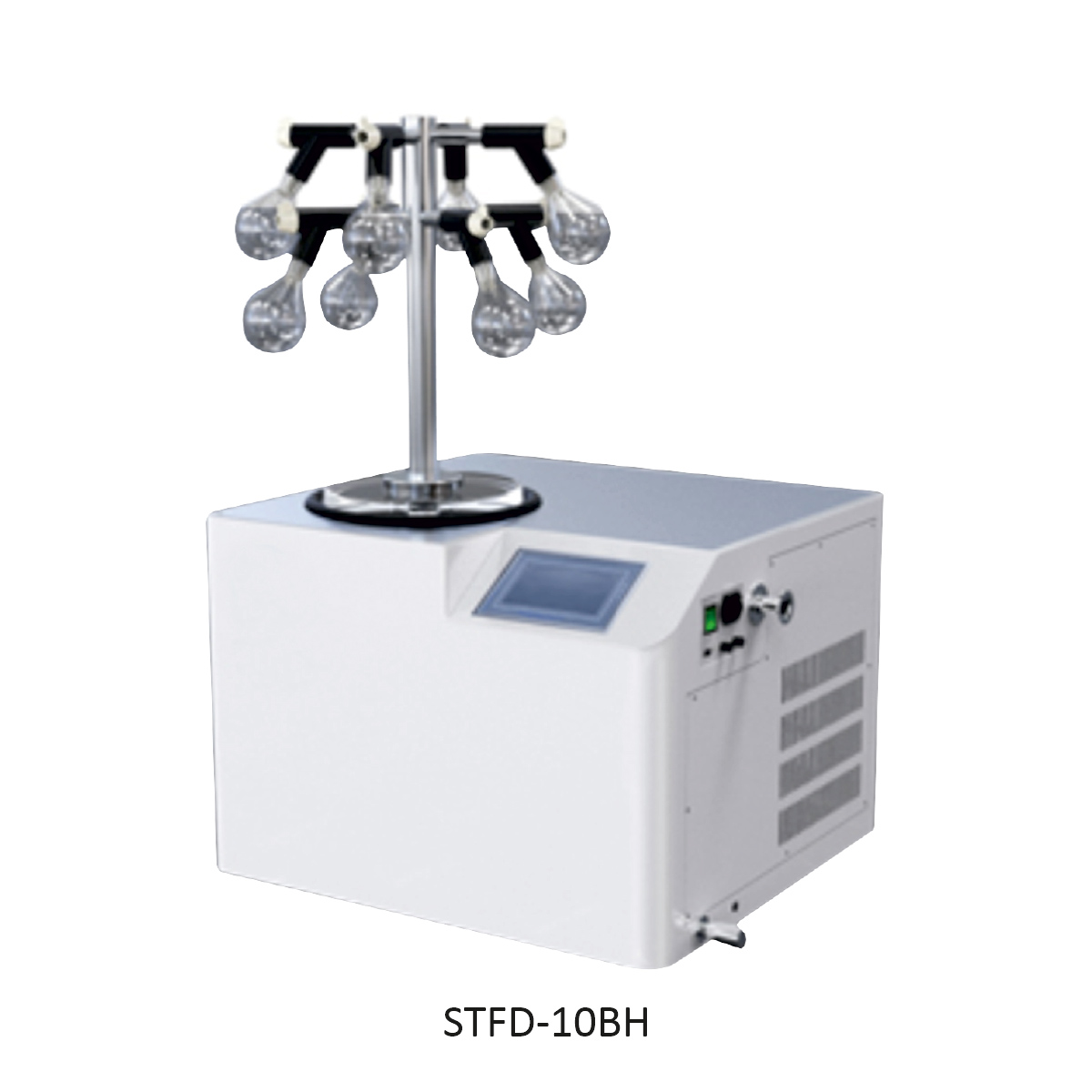

STFD-10BH |

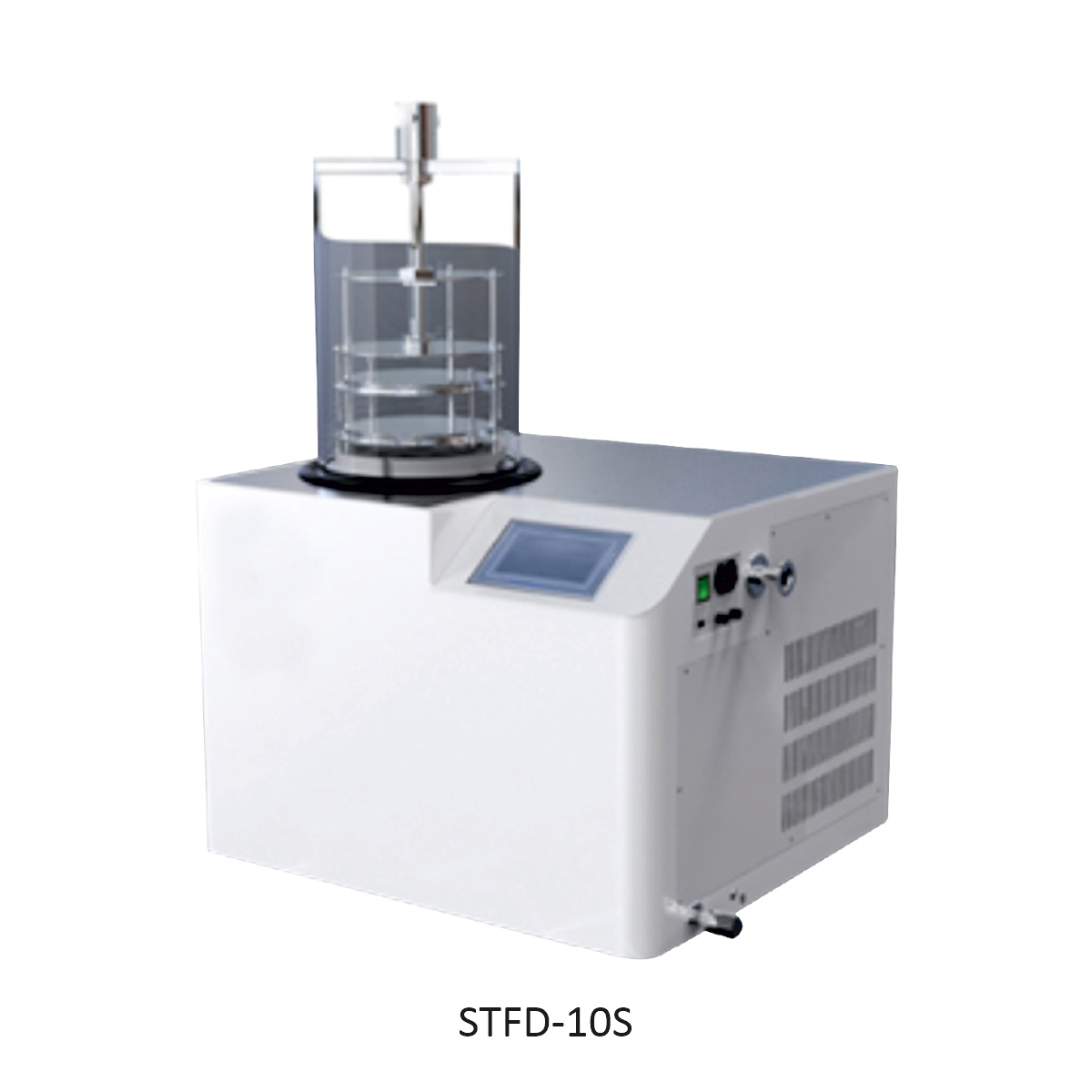

STFD-10S |
|
Feature |
Drying Chamber type |
Standard type |
Manifold type |
Stoppering type |
|
Ice Condenser capacity |
3Kg/24h |
|||
|
Final condenser temperature |
≤-60°C |
|||
|
Effective shelf area |
0.1m2 |
8x250ml flasks |
0.05m2 |
|
|
Shelf |
Shelf layers |
4 |
/ |
3 |
|
Shelf tray dimension |
Diameter Φ210 mm Φ180 mm |
|||
|
Height between shelves |
50mm |
/ |
50mm |
|
|
Shelf heater |
Optional |
/ |
Optional |
|
|
Refrigerant system |
Refrigerant gas |
Mixed CFC free,HCFC-free |
||
|
Number of compressors |
1 |
|||
|
Cold trap cooling rate |
20℃ to -40℃ ≤30min (no load) |
|||
|
Control |
Controller |
5 Inch color touch screen controller with LyoWise operation system |
||
|
Freeze-drying Process |
User Programable optional |
/ |
User Programable optional |
|
|
Data Storage |
Yes |
|||
|
USB port |
Yes |
|||
|
RS232 port |
Yes |
|||
|
Auto defrost |
Yes |
|||
|
Power |
Voltage |
220v50hz,220v60hz,110v60hz |
||
|
Current |
Main unit 5A |
|||
|
Total power |
1250W |
1400W |
1250W |
|
|
Vacuum pump |
Vacuum pump |
Yes |
||
|
Vacuum degree |
≤5Pa (no load) |
|||
|
Vacuum pumping rate |
from standard atmospheric pressure to 10Pa≤10min (no load) |
|||
|
Vacuum rate |
2L/s |
|||
|
Main unit |
Vacuum leakge |
3x10-2 pa L/s |
||
|
Material |
304 |
|||
|
Condenser trap material |
SUS304 |
|||
|
Sensor type |
PT100 |
|||
|
Material sensor |
±4 |
|||
|
External dimensions (L×W×H) |
610*610*460mm |
|||
|
Weight |
90kg |
|||
