Stalwart

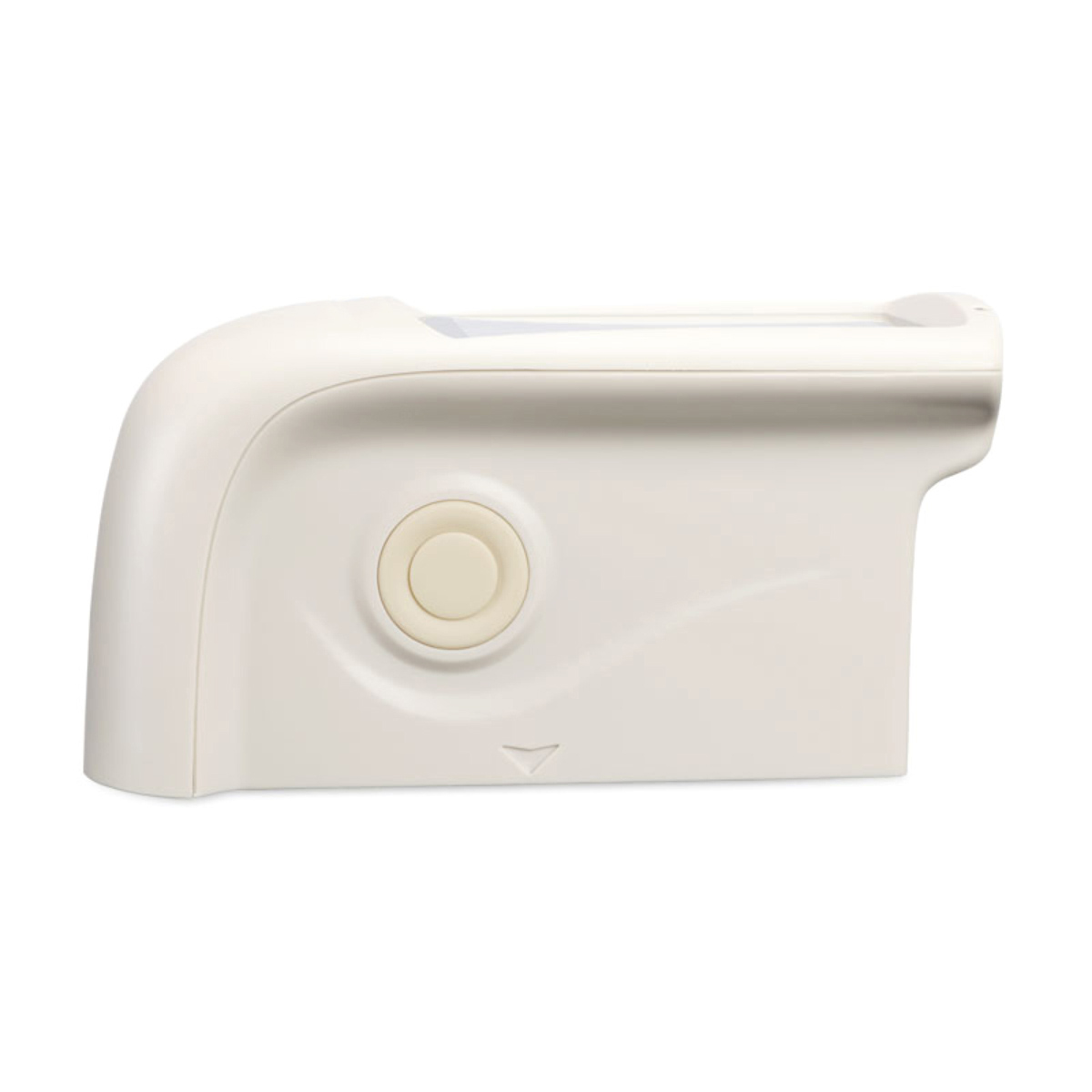

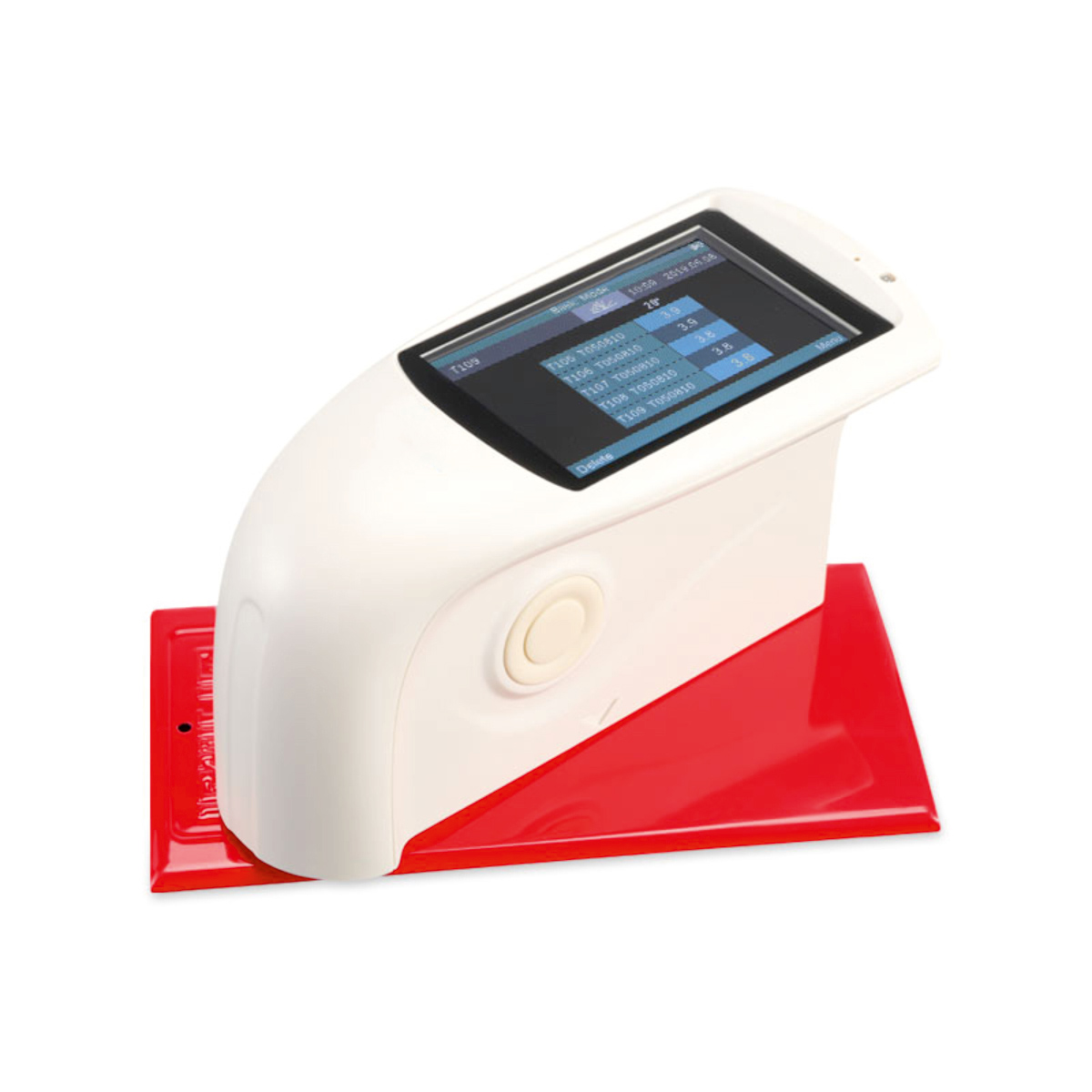

DGM268

Multi-angle Precise Gloss Meter

DGM268 gloss meter features with 20, 60 and 85° angle, manufactured according to ISO2813. It is also compatible with the standards of ASTM D523, ASTM D2457. DGM268 conforms to corresponding with CIE 1931(2°) under CIE C light source. DGM268 gloss meter can test material with high gloss (0-2000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished le, pottery brick and porcelain, plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission

Quantity :

Add to Inquiry Basket

Features
Specifications
Literature

Features

20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
One buon for all angles measurement at the same location
Display 5 sets of measurement data, good for comparison
Measuring mode: basic measurement, stascal measurement, continuous measurement, QC measurement (only for GQC6 software).
Continuous mode to check uniformity over large areas
Connect to PC, more extend functions
Input gloss value manually
Large touch screen operation, easy to use
Beauty appearance, good man-machine communication interface
Powerful functions to meet many different requirements
Large storage to save over 5000 data
Built-in lithium ion rechargeable battery.

Specifications

Model	DGM268
Measuring Angle	20°/60°/85°° Comply with standard ISO 2813, ASTM D 523, ASTM D 2457
Measuring Area(mm)	20°: 10x10, 60°: 9x15, 85°: 5x36
Measuring Range	20°:0~2000GU 60°:0~1000GU 85°:0~160GU
Division Value	0.1GU
Measurement Range Repeatability Reproducibility	0-10GU 10-100GU 100-2000GU ± 0.1GU ± 0.2GU ± 0.2%GU ± 0.2GU ± 0.5GU ± 0.5%GU
Chromacity Corresponding	Corresponding with CIE 1931(2°) under CIE C light source
Errors	±1.2 , ± 1.2%
Measuring Time	1.0s
Dimension	LWH : 160mm75mm90mm
Weight	350g
Battery	3200mAh Li-ion Baery, >10000 mes(within 8 hours)
Display	TFT 3.5 inch, capacitive touch screen
Interface	USB/RS-232
Data Save	Basic mode: 1000, Stascal Mode: 5000, Continuous mode: 5000
Software	GQC6 Quality Control Software with QC report printing functions and more extended functions.
Operation Temperature	0~40°C (32~104°F)
Storage Temperature	-20~50°C (-4~122°F)
Humidity	<85% relative humidity, no condensation
Standard Accessories	Power Adapter, USB cable, User Manual, GQC6 software CD (except EGM60S), Calibration Plate
Optional Accessories	Miniature Printer

Literature

DGM268 Brochure
