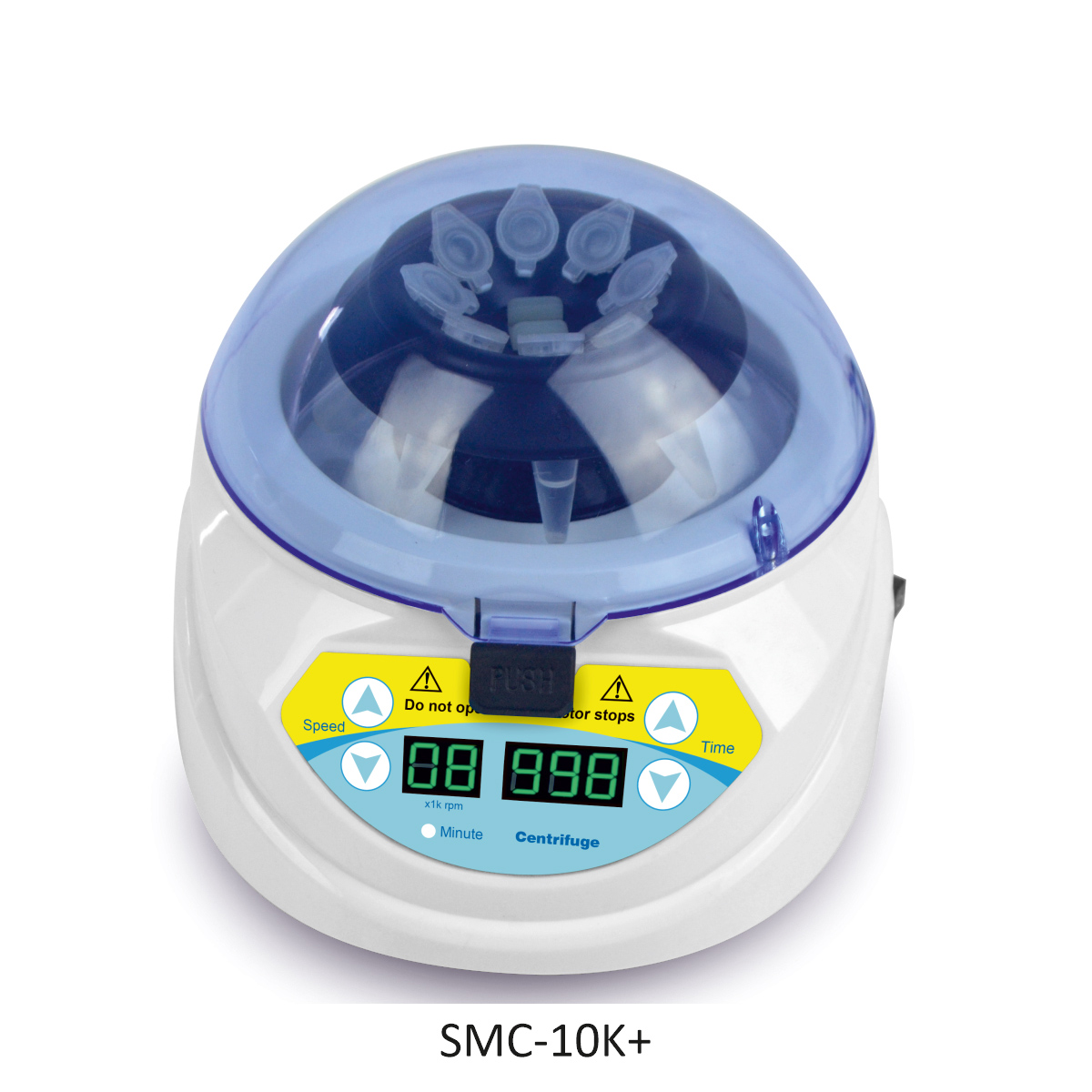

SMC-10K Series
Mini Centrifuge
SMC Centrifuge is perfect designed with novel and unique appearance. It is prey and skillful, equipped with 2 types of rotors and several types of tube carriers for 2.0ml / 0.5ml / 0.2ml tubes and 0.2ml x 8 PCR tube strips. It is designed user-friendly. Open/close the cover will automatically start/stop the centrifuge. Mini centrifuge series are built-in ming function.
Quantity :
Add to Inquiry Basket
  • Features
  • Specifications
  • Literature
  • User Manual

Features

  • Large radius rotor with 8 tube holes, centrifugal force is 1.5 times bigger than ordinary 6-hole rotor at the same rolling speed.
  • The cover press-button is outward designed with start/stop function. Press the button, the cover will open automatically to 95°, which is very convenient for one-hand operation.
  • The rotor is clip-on fixed. Very convenient for rotors exchanging yet fixed solid reliable.
  • LED displays speed (SMC-10K+) and timing.
  • Working is silent and stable. Free-maintenance motor, long-life and safe.
  • Smart appearance. Multi-purpose to meet different experimental demands.

Specifications

Model SMC-10K SMC-10K+
Speed Range 10000rpm 3krpm~10krpm (increment:1000rpm)
RCF approx.4800g approx.400g ~4800g
Rotor capacity 8x1.5/2.0ml, (With 0.5ml and 0.2ml tube adapter) 8x1.5/2.0ml, or 2x8x0.2ml PCR Strips (when speed≤6000rpm) (With 0.5ml and 0.2ml tube adapter)
Time Range 1s ~9999min or continuous 1s ~999min or continuous
Working Noise ≤55dB ≤55dB
Voltage AC 220V / AC 110V, 50/60Hz AC 220V / AC 110V, 50/60Hz
Power ≤45W ≤45W
Fuse 250V, 1A, Ф5x20 250V, 1A, Ф5x20
Dimension W.156 x D.176 x H.121mm W.156 x D.176 x H.121mm
Net Weight 1.5kgs 1.5kgs



Literature

SMC-10K Series Brochure

User Manual

SMC-10K User Manual

SMC-10K+ User Manual



Features

  • Large radius rotor with 8 tube holes, centrifugal force is 1.5 times bigger than ordinary 6-hole rotor at the same rolling speed.
  • The cover press-button is outward designed with start/stop function. Press the button, the cover will open automatically to 95°, which is very convenient for one-hand operation.
  • The rotor is clip-on fixed. Very convenient for rotors exchanging yet fixed solid reliable.
  • LED displays speed (SMC-10K+) and timing.
  • Working is silent and stable. Free-maintenance motor, long-life and safe.
  • Smart appearance. Multi-purpose to meet different experimental demands.

Specifications

Model SMC-10K SMC-10K+
Speed Range 10000rpm 3krpm~10krpm (increment:1000rpm)
RCF approx.4800g approx.400g ~4800g
Rotor capacity 8x1.5/2.0ml, (With 0.5ml and 0.2ml tube adapter) 8x1.5/2.0ml, or 2x8x0.2ml PCR Strips (when speed≤6000rpm) (With 0.5ml and 0.2ml tube adapter)
Time Range 1s ~9999min or continuous 1s ~999min or continuous
Working Noise ≤55dB ≤55dB
Voltage AC 220V / AC 110V, 50/60Hz AC 220V / AC 110V, 50/60Hz
Power ≤45W ≤45W
Fuse 250V, 1A, Ф5x20 250V, 1A, Ф5x20
Dimension W.156 x D.176 x H.121mm W.156 x D.176 x H.121mm
Net Weight 1.5kgs 1.5kgs
