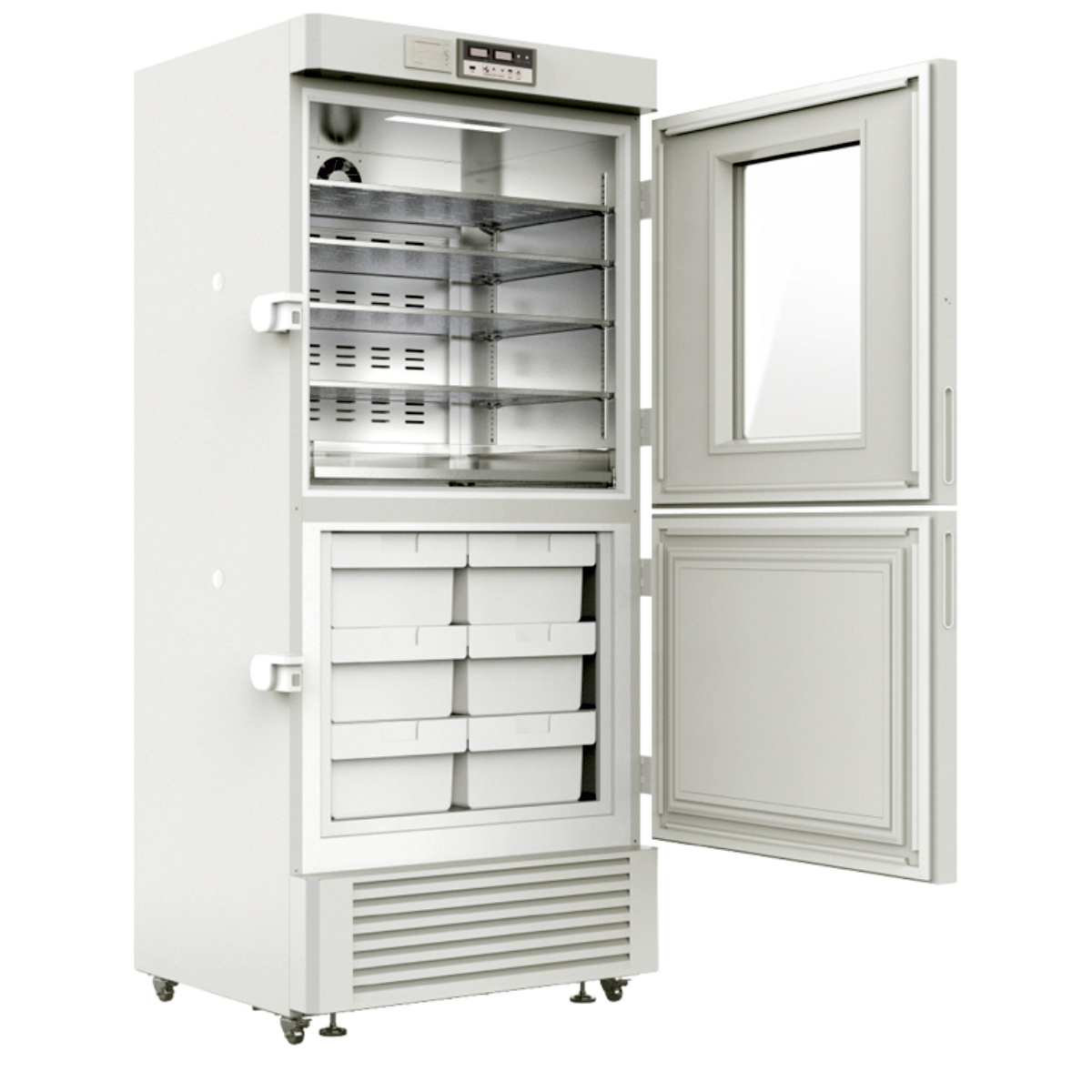

STFC-288
Combined refrigerator & -25°C freezer
Refrigerator System
Refrigerator compartment is forced-air cooling, freezer compartment is direct cooling
Two compressors control the refrigeration chamber and freezer chamber separately
Reliable compressor and fan, ensure fast cooling, energy-saving and long time running
Environment friendly refrigerant CFC-free and HFCF-free
Cabinet Construction
Powder coated steel exterior
50mm thickness Non-CFC foamed insulation in refrigerator compartment and 100mm thickness in freezer
compartment Doorlock prevents unauthorized open
Low noise design creates a comfortable working environment
Superior engineered frame for maximum rigidity
Refrigerator compartment has adjustable shelves and one drawer, freezer compartment has fixed shelves
integrated with evaporator and ABS drawers
Quantity :
  • Features
  • Specifications
  • Literature
  • User Manual

Features

Intelligent Control System

High precision microprocessor temperature control system with digital LED temperature display 0.1ºC accuracy. Temperature: Refrigerator: 2°C ~ 8°C, Freezer: -10°C ~ 40°C/ -10°C ~ 25°C The digital display can show the freezer work condition and alarm code, it is easy to know the freezer status 3 channel sensors for cooling, display and amabinet temperature

Security Alarm System

Audible and visible alarm system for safe storage High temperature alarm, Low temperature alarm, Sensor failure alarm, Door ajar alarm, Power failure alarm, Low battery alarm, High ambinet alarm, USB failure alarm Optional for the remote alarm contact

Specifications

  Model STFC-288
Technical Data Chamber Refrigerator Freezer
Capacity (L) 188 100
Total: 288
Cabinet Type Upright
Climate N
Door Type Double-layer Glass Door Solid Door
Cooling Type Forced Air Cooling Direct Cooling
Defrost Mode Auto Manual
Refrigerant CFC-free
Noise(dB) 42
Performance

Temperature Range (ºC)

2~8 -10 ~ -25
Control Controller Microprocessor
Display LED Digital
Electrical Data Power Supply(V/Hz) 220~240V 50/60Hz 110V 60Hz
Power(W) 600
Electric(A) 2.23
Dimensions Internal Dimensions(W×D×H,mm) 600*510*710 500*460*505
External Dimensions(W×D×H,mm) 700×640×1828
Packing Dimensions(W×D×H,mm) 828×746×1925
Net/Gross Weight (kg) 146/160
Container Load (20'/40'/40'H) 18/36/36
Functions Remote Alarm
High/Low Temperature, Remote Alarm, Power Failure Alarm, Sensor Error Alarm, Low Battery Alarm, High Ambient Temperature Alarm, USB Failure Alarm
Accessories Door Lock 1 1
Caster 4
Test Hole Y
Shelf/Drawer 3/1 2/3
USB Interface Y



Literature

STFC-288 Brochure

User Manual

STFC-288 User Manual
